Structural Model
2024-05-30
014641
Single-Span Beam with Lateral and Torsional Restraint Without Intermediate Supports
3D Model
Specifications
| Number of Nodes | 9 |
| Number of Lines | 8 |
| Number of Members | 8 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.089 tons |
| Dimensions (Metric) | 18.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 59.06 x 0 x 0 feet |
2024-05-30
014642

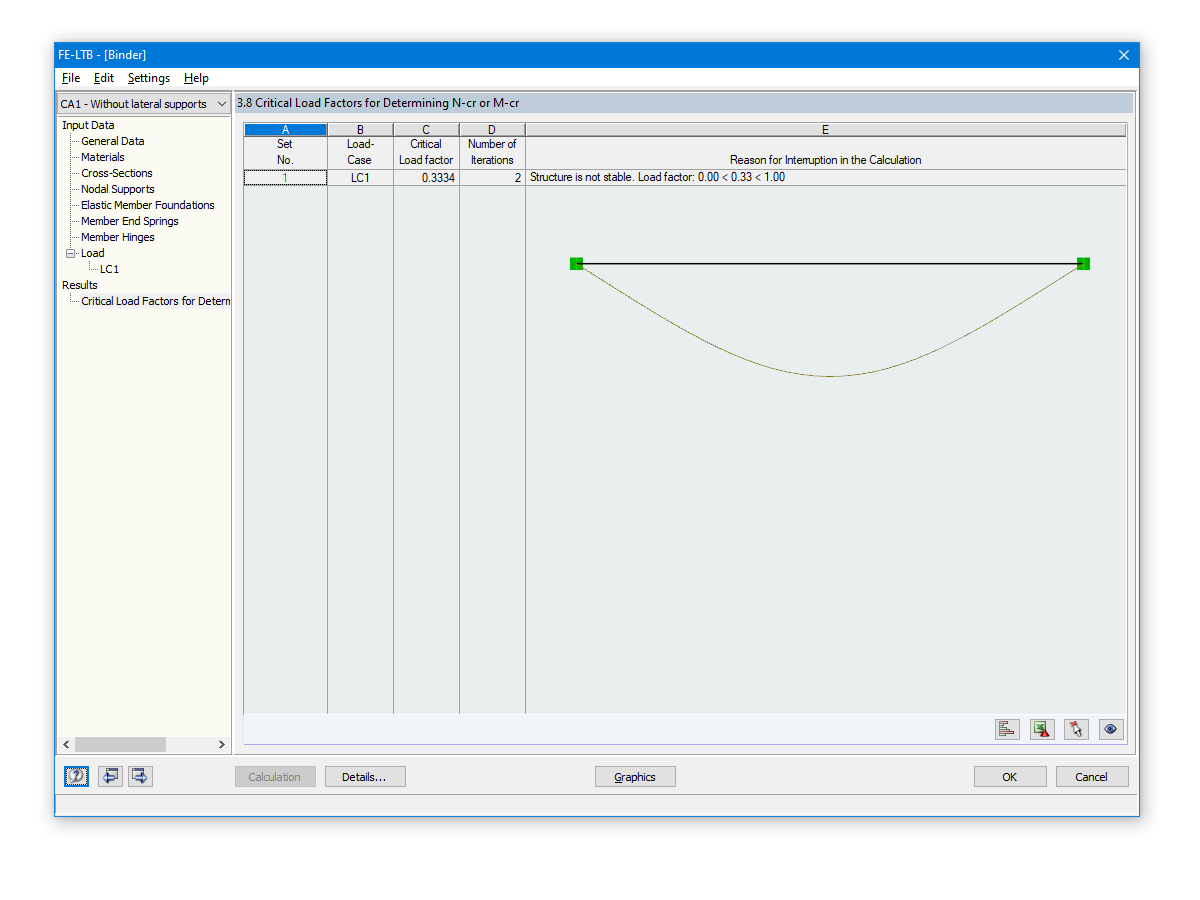

Result of Eigenvalue Analysis for Single-Span Beam with Lateral and Torsional Restraint Without Intermediate Supports
2024-05-30
014643

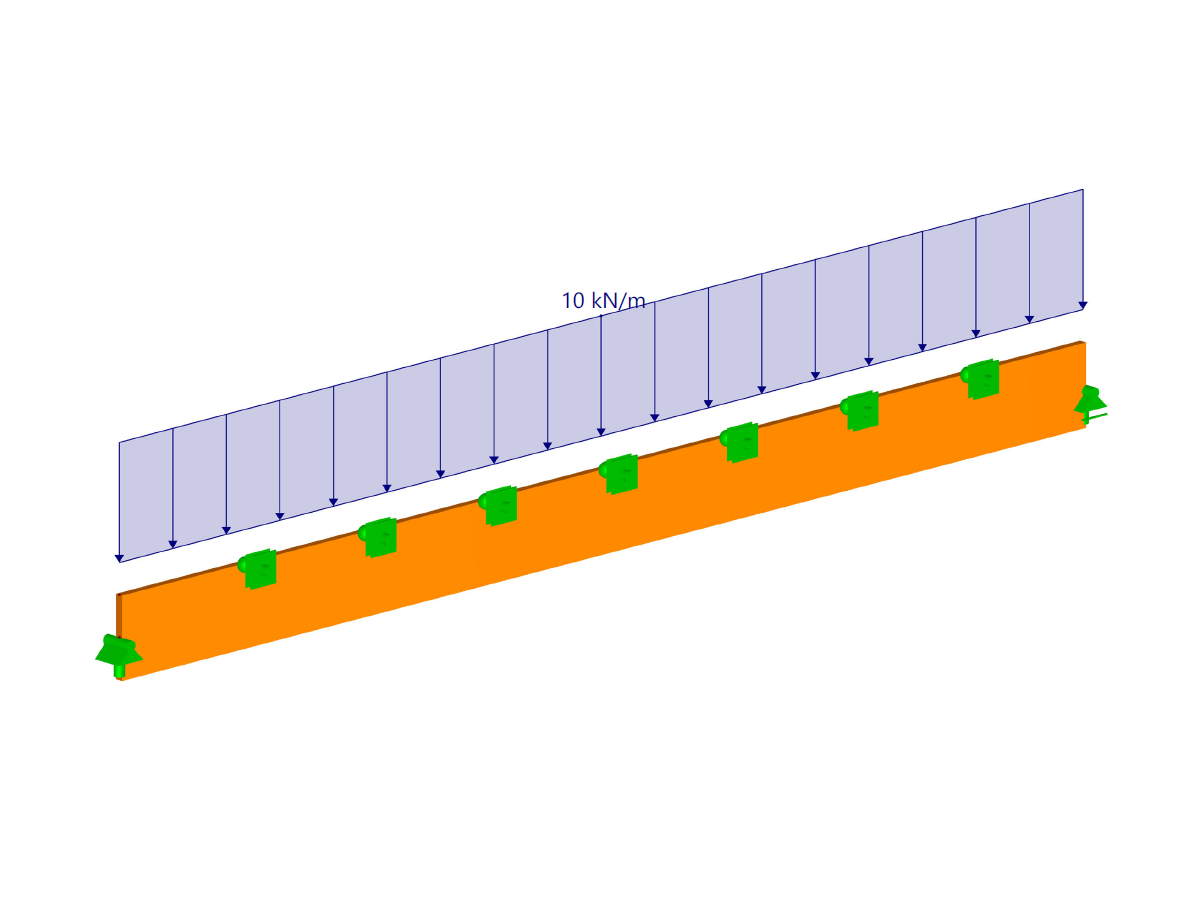

Single-Span Beam with Lateral and Torsional Restraint with Rigid Intermediate Supports
2024-05-30
014644
Result of Eigenvalue Analysis for Single-Span Beam with Lateral and Torsional Restraint with Rigid Intermediate Supports
2024-05-30
014645

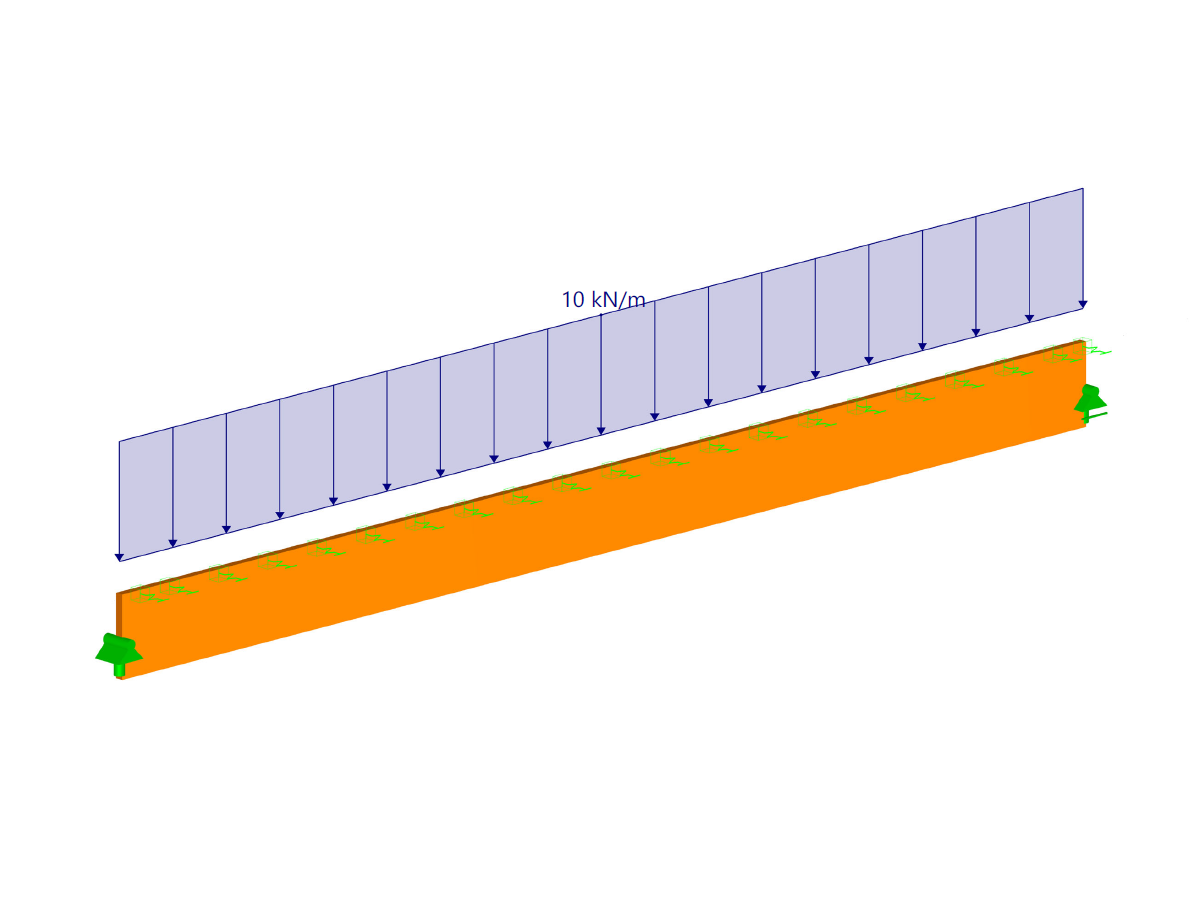

Single-Span Beam with Lateral and Torsional Restraint and Member Elastic Foundation
2024-05-30
014646

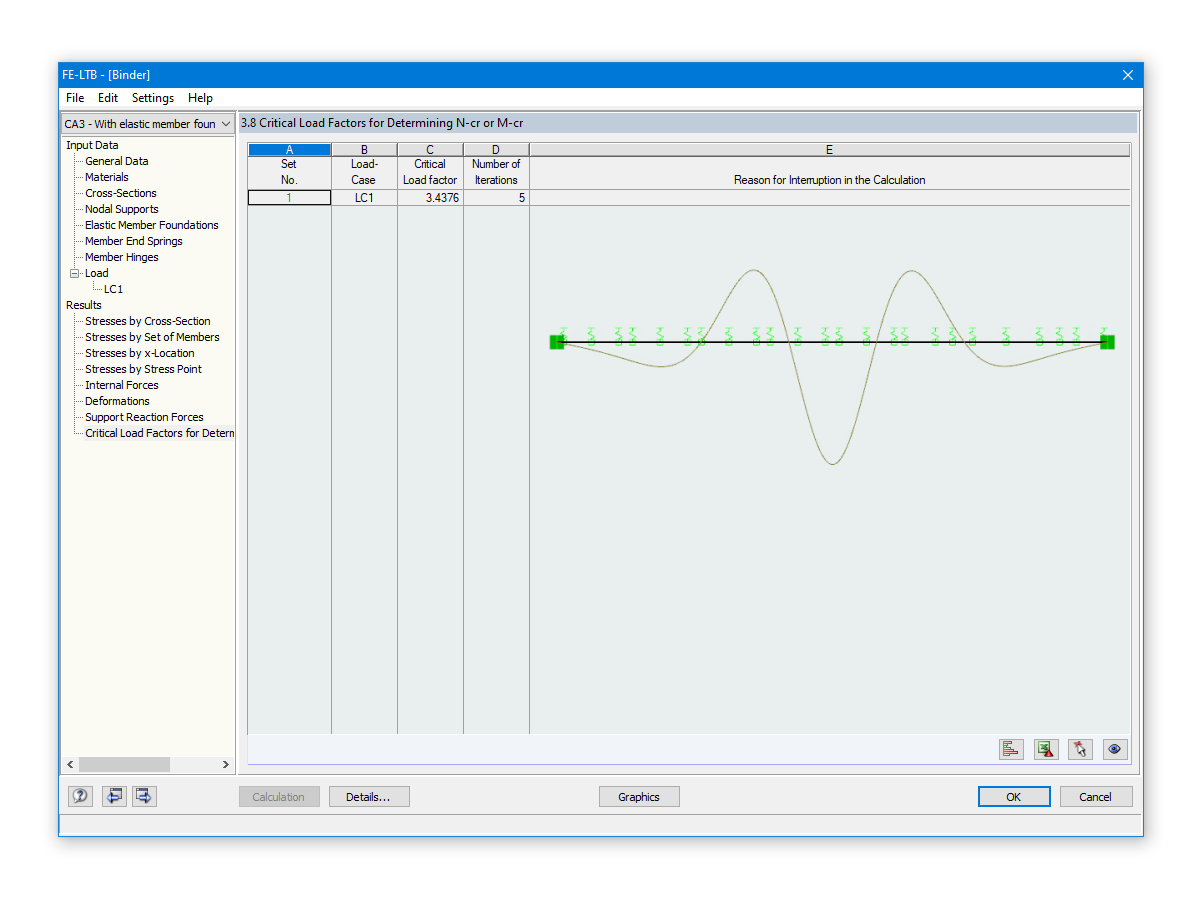

Result of Eigenvalue Analysis for Single-Span Beam with Lateral and Torsional Restraint with Elastic Member Foundation
2024-05-30
014647
Horizontal Displacement of Stiffening Bracing
3D Model
Specifications
| Number of Nodes | 18 |
| Number of Lines | 33 |
| Number of Members | 33 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.399 tons |
| Dimensions (Metric) | 18.000 x 4.000 x 0.000 m |
| Dimensions (Imperial) | 59.06 x 13.12 x 0 feet |
