Steel Truss Girder with 3D Modeling of Connection

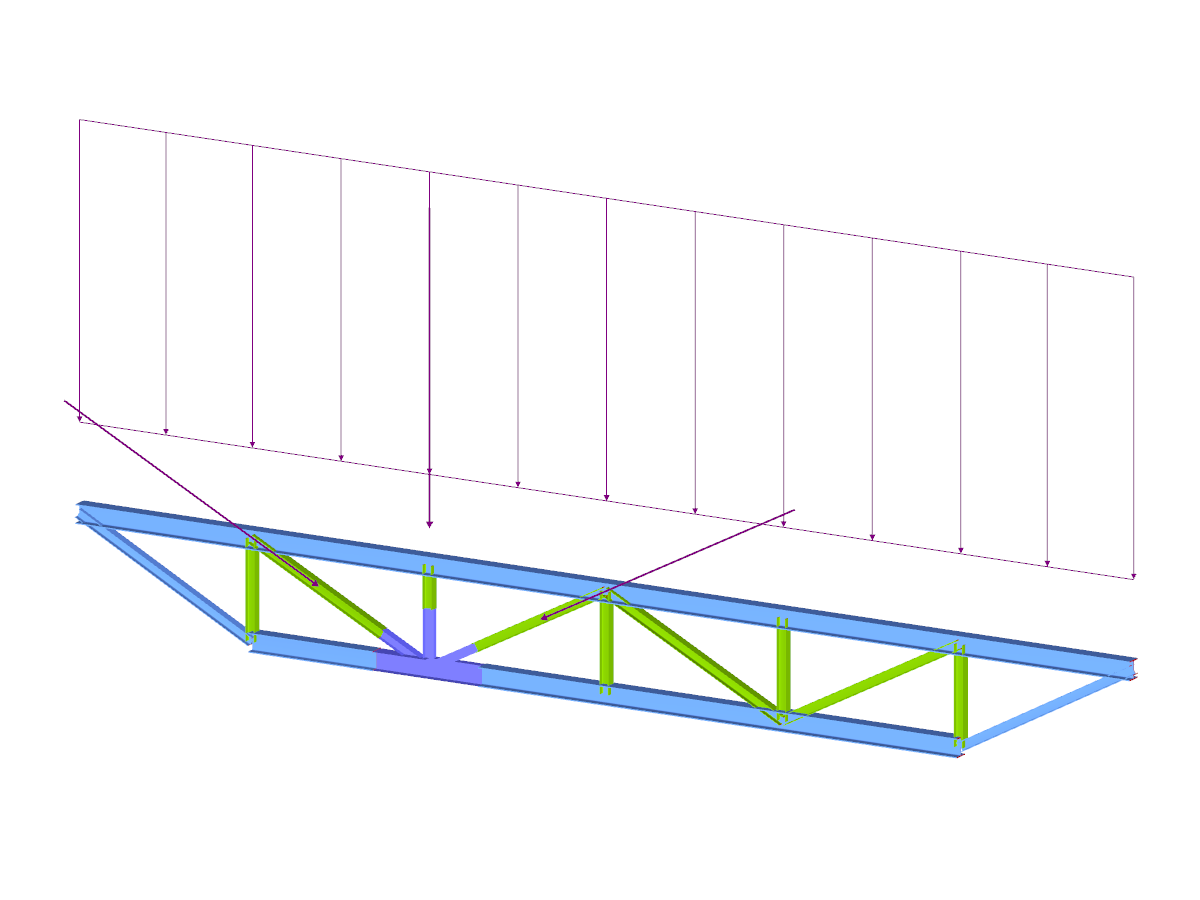

Truss Girders
3D Model
Specifications
| Number of Nodes | 149 |
| Number of Lines | 194 |
| Number of Members | 68 |
| Number of Surfaces | 32 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 10 |
| Number of Result Combinations | 2 |
| Total Weight | 439.970 tons |
| Dimensions (Metric) | 27.432 x 14.753 x 9.404 m |
| Dimensions (Imperial) | 90 x 48.4 x 30.85 feet |
| Program Version | 5.20.01 |
