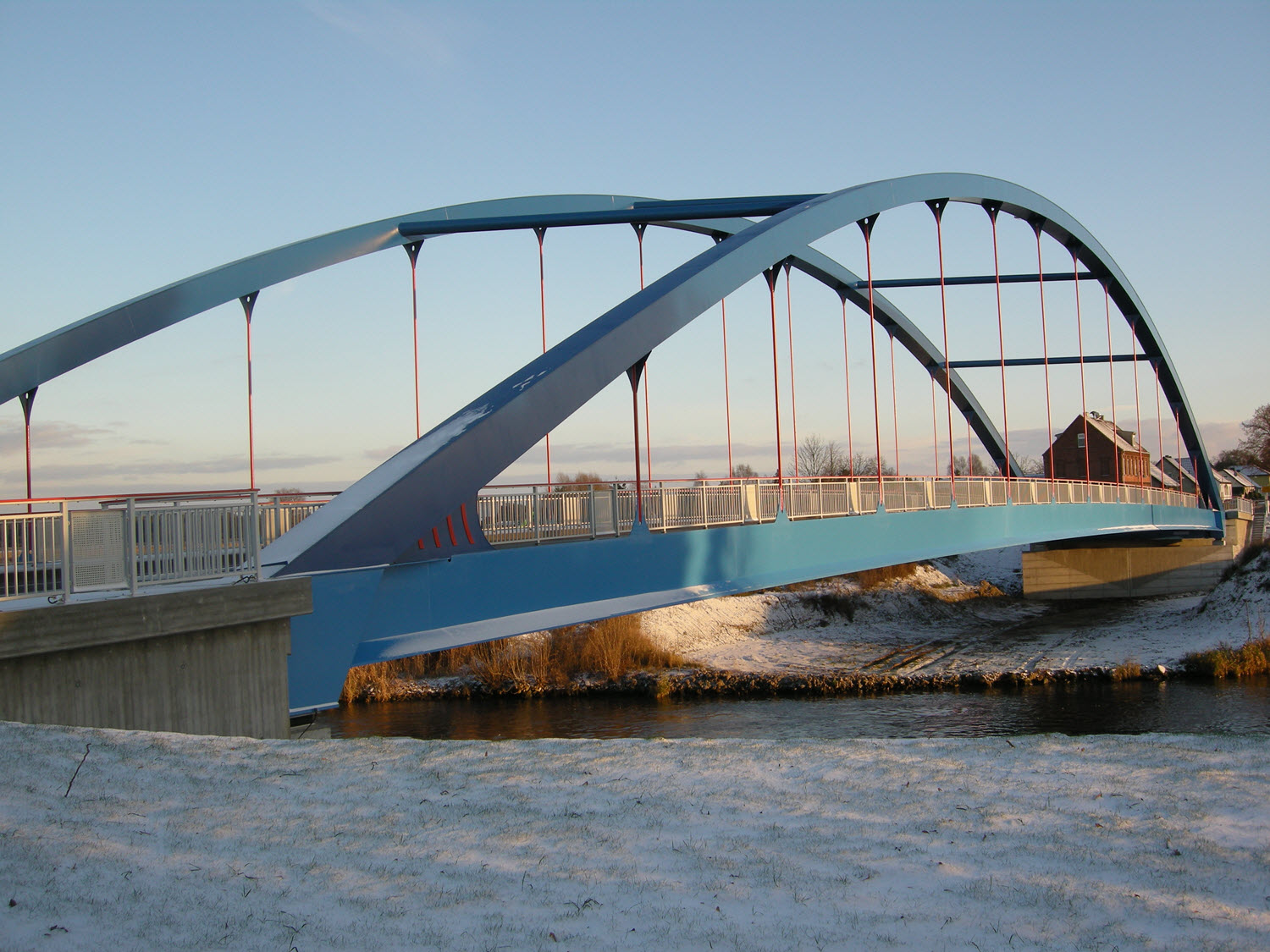

Road Bridge B 10 over Elbe-Havel Canal in Güsen (© grbv)

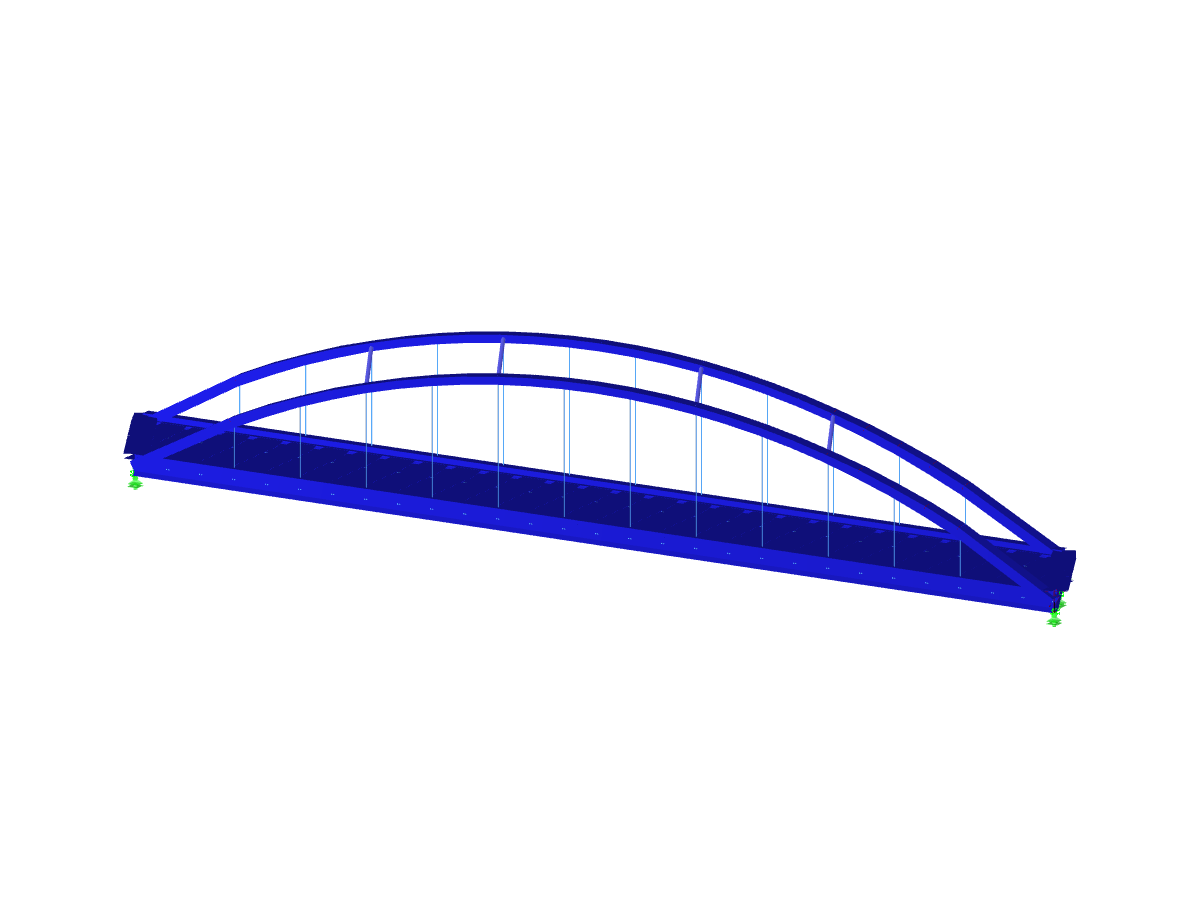

3D Model
Specifications
| Number of Nodes | 228 |
| Number of Members | 687 |
| Number of Load Cases | 153 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 39 |
| Total Weight | 553.655 tons |
| Dimensions (Metric) | 100.382 x 13.350 x 14.700 m |
| Dimensions (Imperial) | 329.34 x 43.8 x 48.23 feet |
| Program Version | 8.11.01 |
New Construction of Güsen Road Bridge B 10 over Elbe-Havel Canal, Germany
