Visualized Planning Model of New Plant with Pedestrian and Media Bridge (Middle) and New Factory Building (Top) (© Ingenieurbüro Grassl GmbH)
3D Model
Specifications
| Number of Nodes | 323 |
| Number of Lines | 868 |
| Number of Members | 851 |
| Number of Surfaces | 1 |
| Number of Load Cases | 20 |
| Number of Load Combinations | 489 |
| Number of Result Combinations | 6 |
| Dimensions (Metric) | 44.260 x 112.475 x 15.190 m |
| Dimensions (Imperial) | 145.21 x 369.01 x 49.84 feet |
| Program Version | 5.14.01 |
BIM Project of New Plant in Graben-Neudorf
Used in
3D Model
Specifications
| Number of Nodes | 323 |
| Number of Lines | 868 |
| Number of Members | 851 |
| Number of Surfaces | 1 |
| Number of Load Cases | 20 |
| Number of Load Combinations | 489 |
| Number of Result Combinations | 6 |
| Dimensions (Metric) | 44.260 x 112.475 x 15.190 m |
| Dimensions (Imperial) | 145.21 x 369.01 x 49.84 feet |
| Program Version | 5.14.01 |
2024-05-30
011880

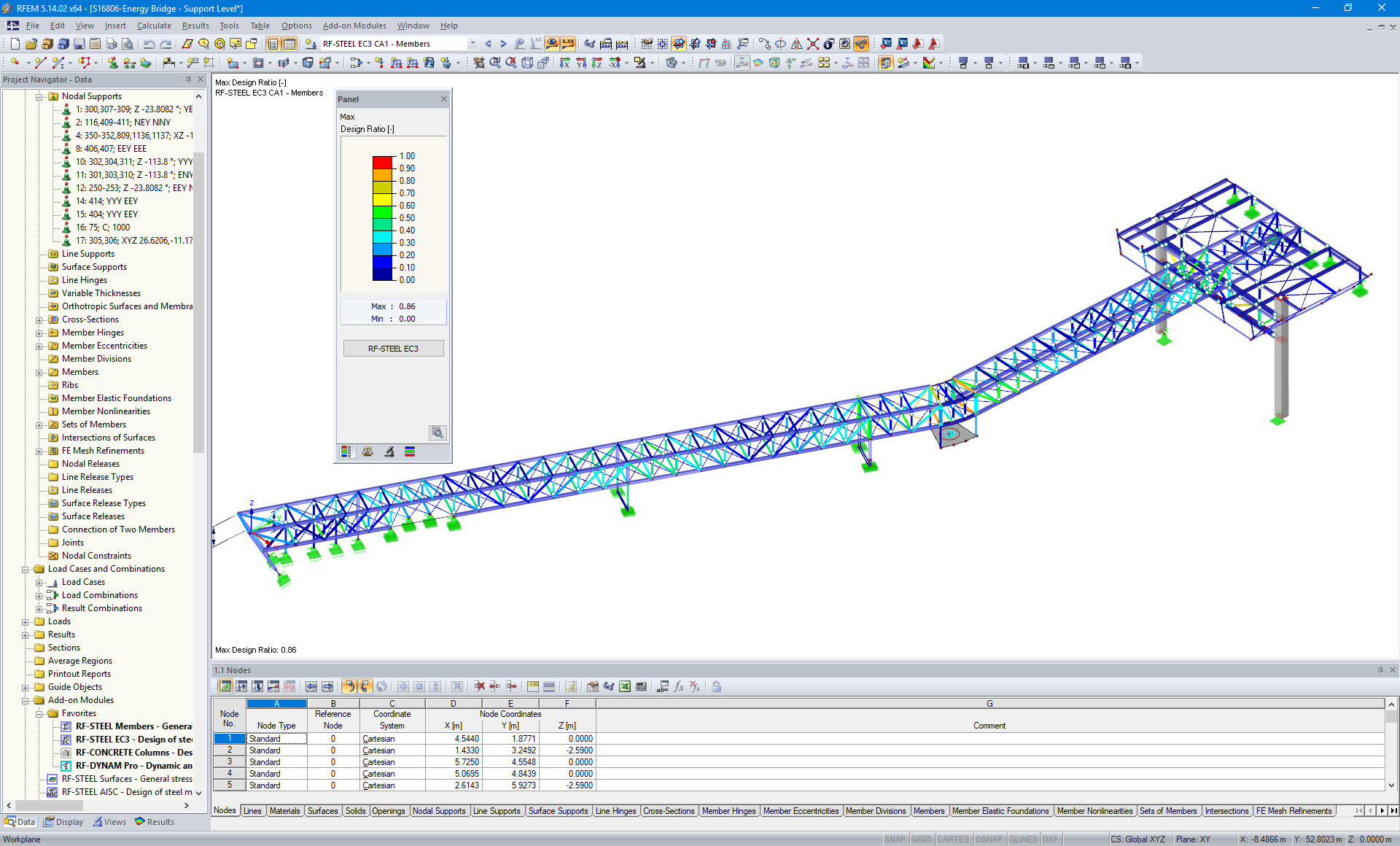

RFEM Model of Media Bridge with Design Results of RF-STEEL EC3 (© Ingenieurbüro Grassl GmbH)
