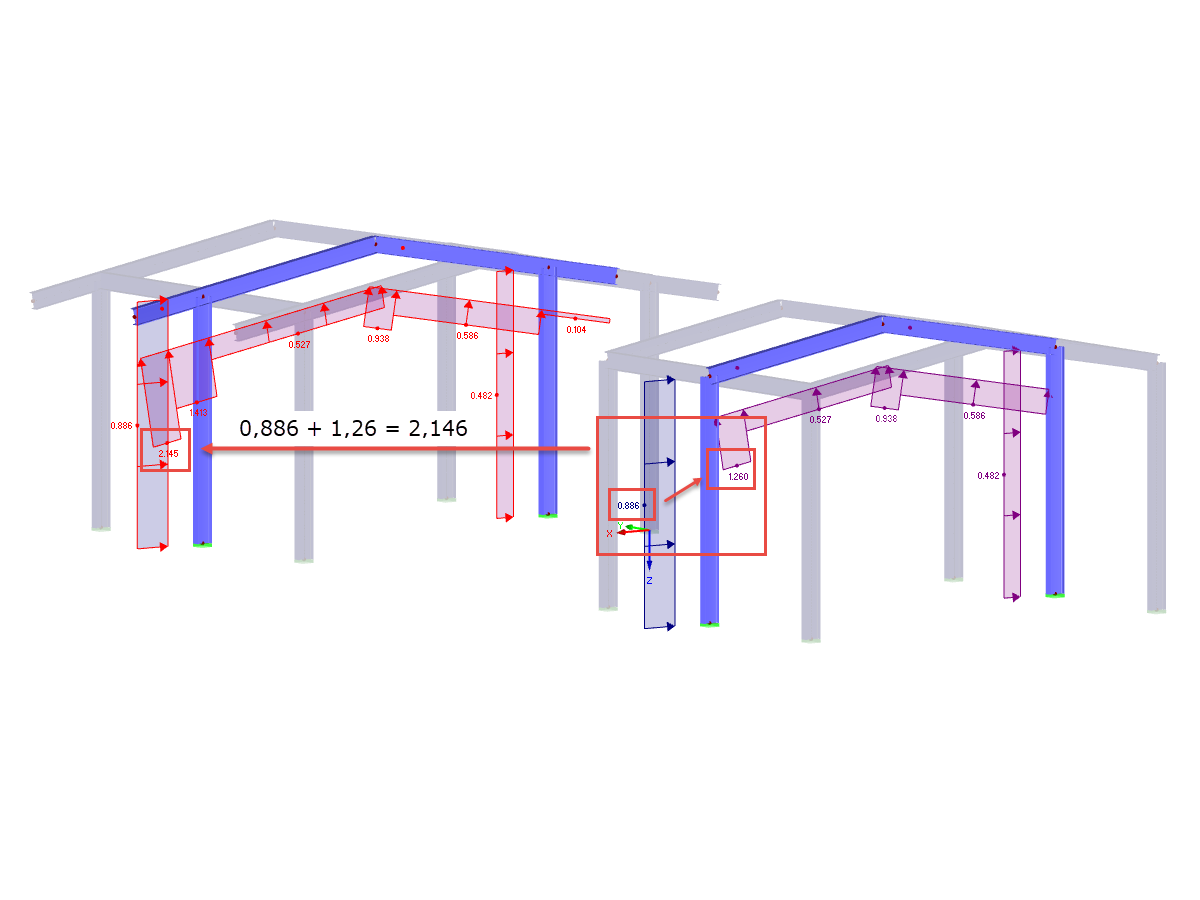

Considering Roof Overhangs for Automatic Load Generation
3D Model
Specifications
| Number of Nodes | 36 |
| Number of Lines | 38 |
| Number of Members | 38 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.951 tons |
| Dimensions (Metric) | 6.970 x 3.341 x 14.000 m |
| Dimensions (Imperial) | 22.87 x 10.96 x 45.93 feet |
2024-05-30
015565

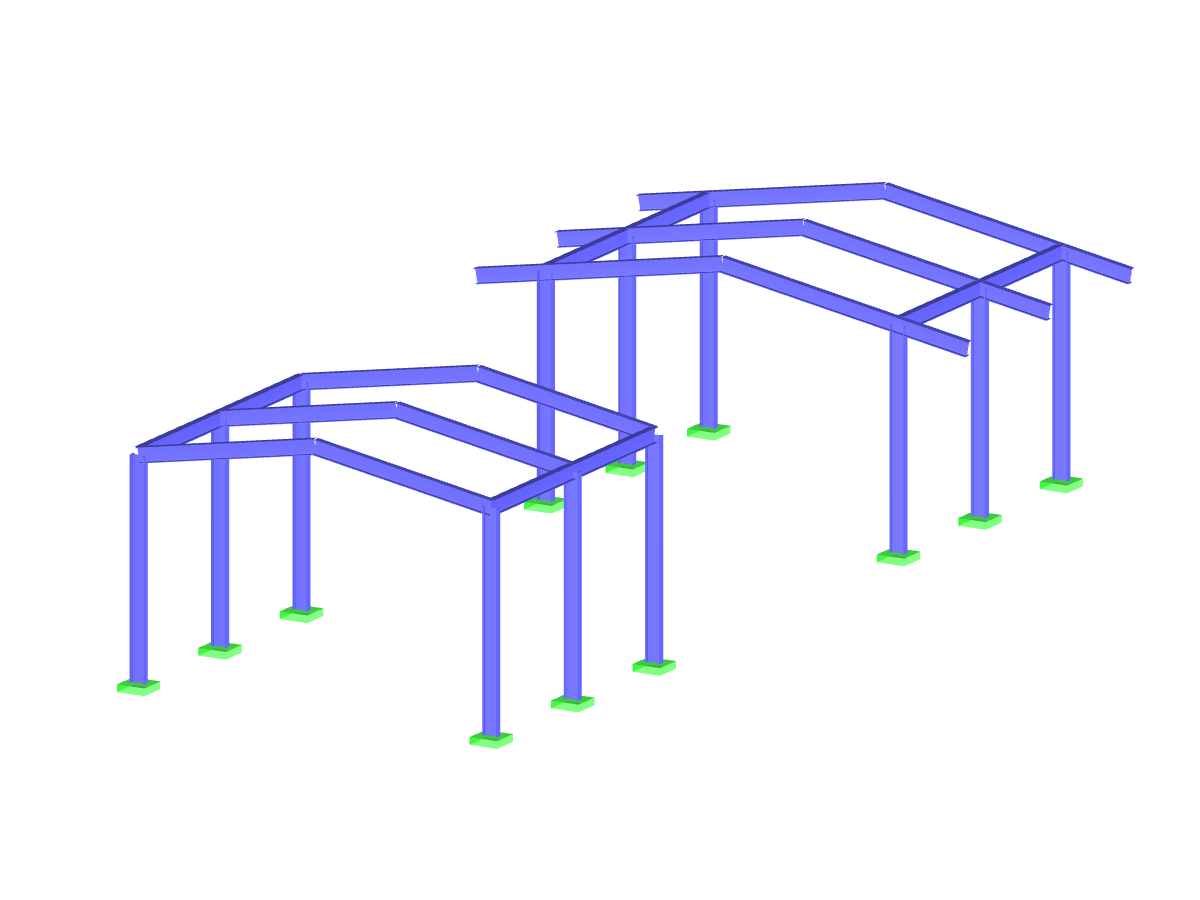

Steel Frame Structures with or Without Roof Overhang
3D Model
Specifications
| Number of Nodes | 36 |
| Number of Lines | 38 |
| Number of Members | 38 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.951 tons |
| Dimensions (Metric) | 6.970 x 3.341 x 14.000 m |
| Dimensions (Imperial) | 22.87 x 10.96 x 45.93 feet |
