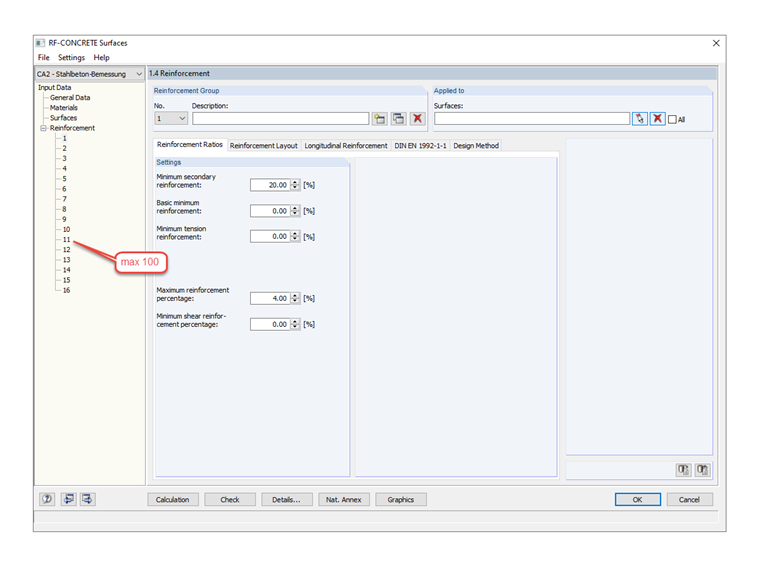

The maximum number of reinforcement groups within a case is limited by two values in RF‑CONCRETE Surfaces.
- Maximum number of surfaces of the model, as each surface can only be designed once within a design case.
- Absolute limit of "100"
The maximum number of reinforcement groups within a case is limited by two values in RF‑CONCRETE Surfaces.
