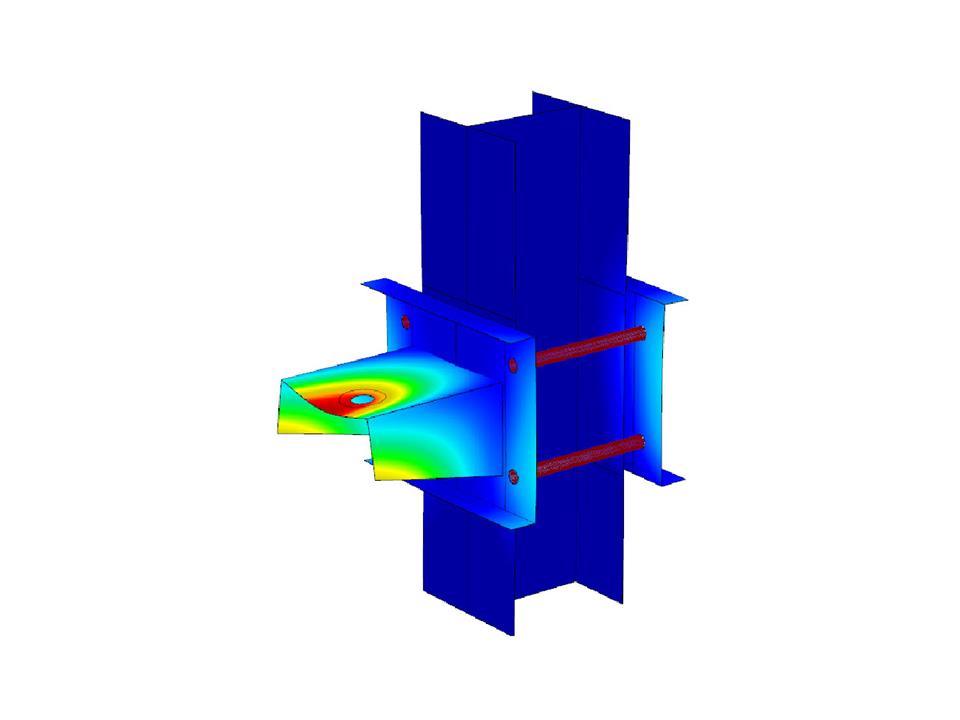

Connection System Using Belts for Column
Number of Nodes | 109 |
Number of Lines | 122 |
Number of Members | 6 |
Number of Surfaces | 53 |
Number of Solids | 4 |
Number of Load Cases | 1 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 0.208 tons |
Dimensions | 1.55 x 9.84 x 1.05 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
Related Models
3125x
362x
4271x
193x
2340x
155x

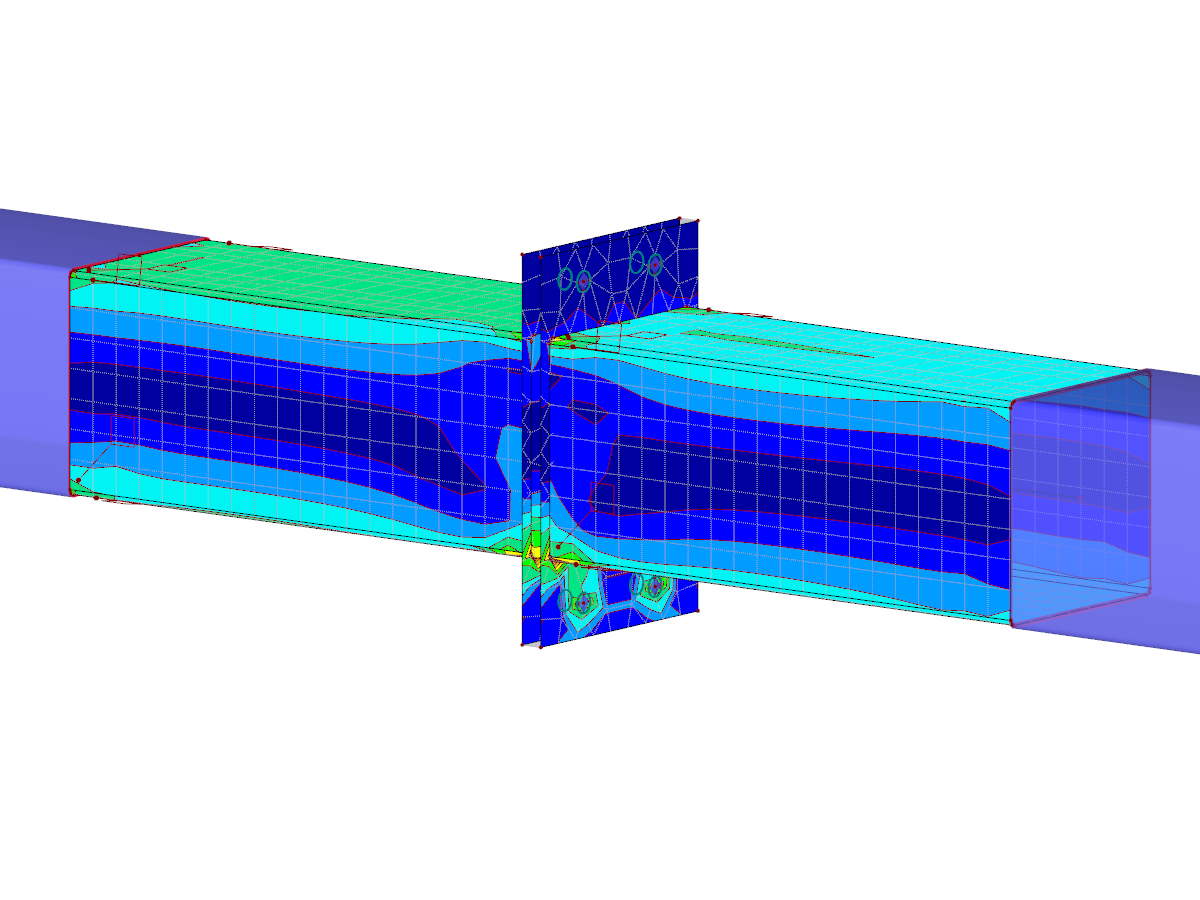

With RF-/FRAME-JOINT Pro, you can design frame joints according to DIN 18800 or Eurocode 3. When considering non-standardized joints or when taking a closer look at the joint and its behavior, we recommend using modeling as a surface model. This article will show, in principle, how this kind of model is created.

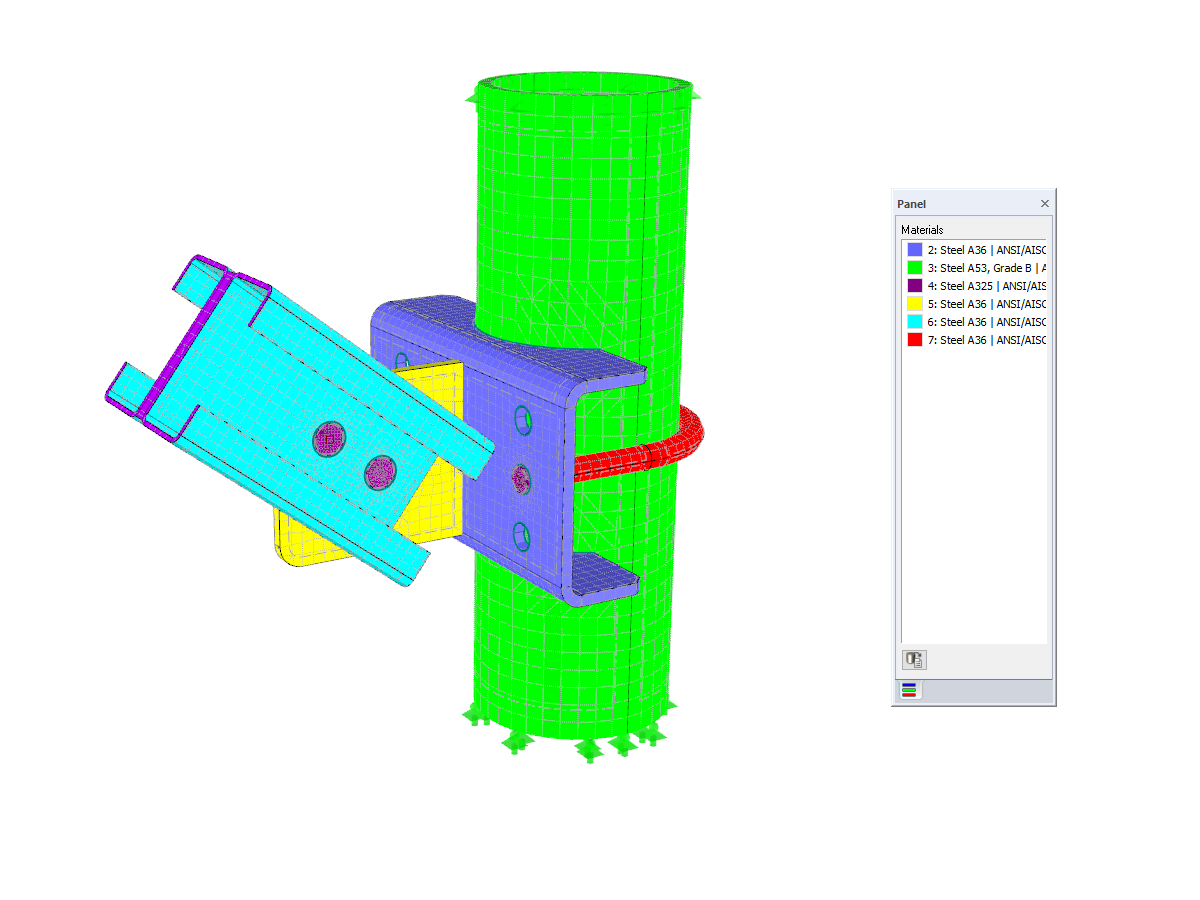

In RFEM, you can display the contact properties between two surfaces by means of contact solids. Among other things, you should ensure that both contact surfaces of a contact solid have the same integrated objects. Therefore, when modeling the contact surfaces, we recommend using the copy function in order to create the second contact surface.

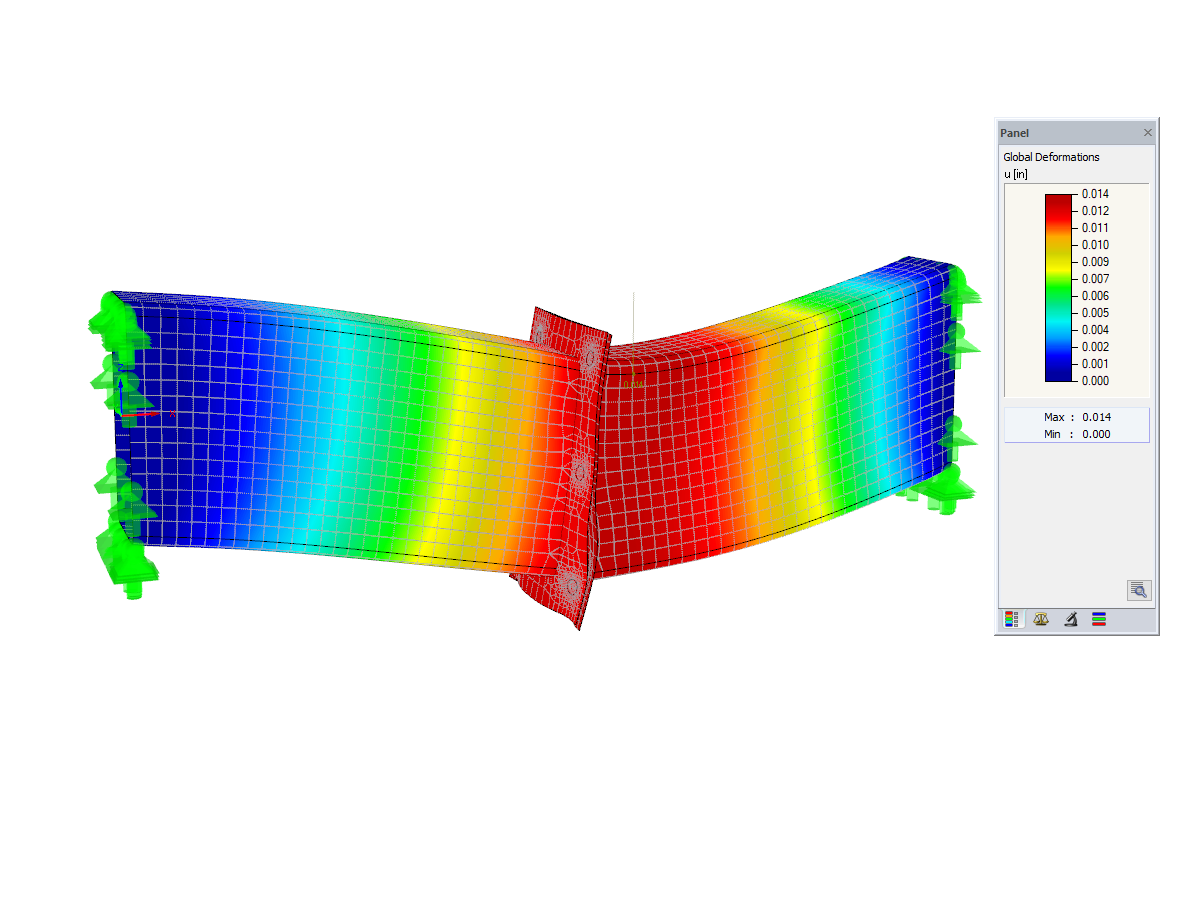

Contact solids can be created between two flat surfaces or between two cylindrical shells. However, if the area of the contact problem is a little more complicated, it is necessary either to simplify the system so that the requirements of a contact solid can be met, or go back to the "old" modeling style using a rod model.
