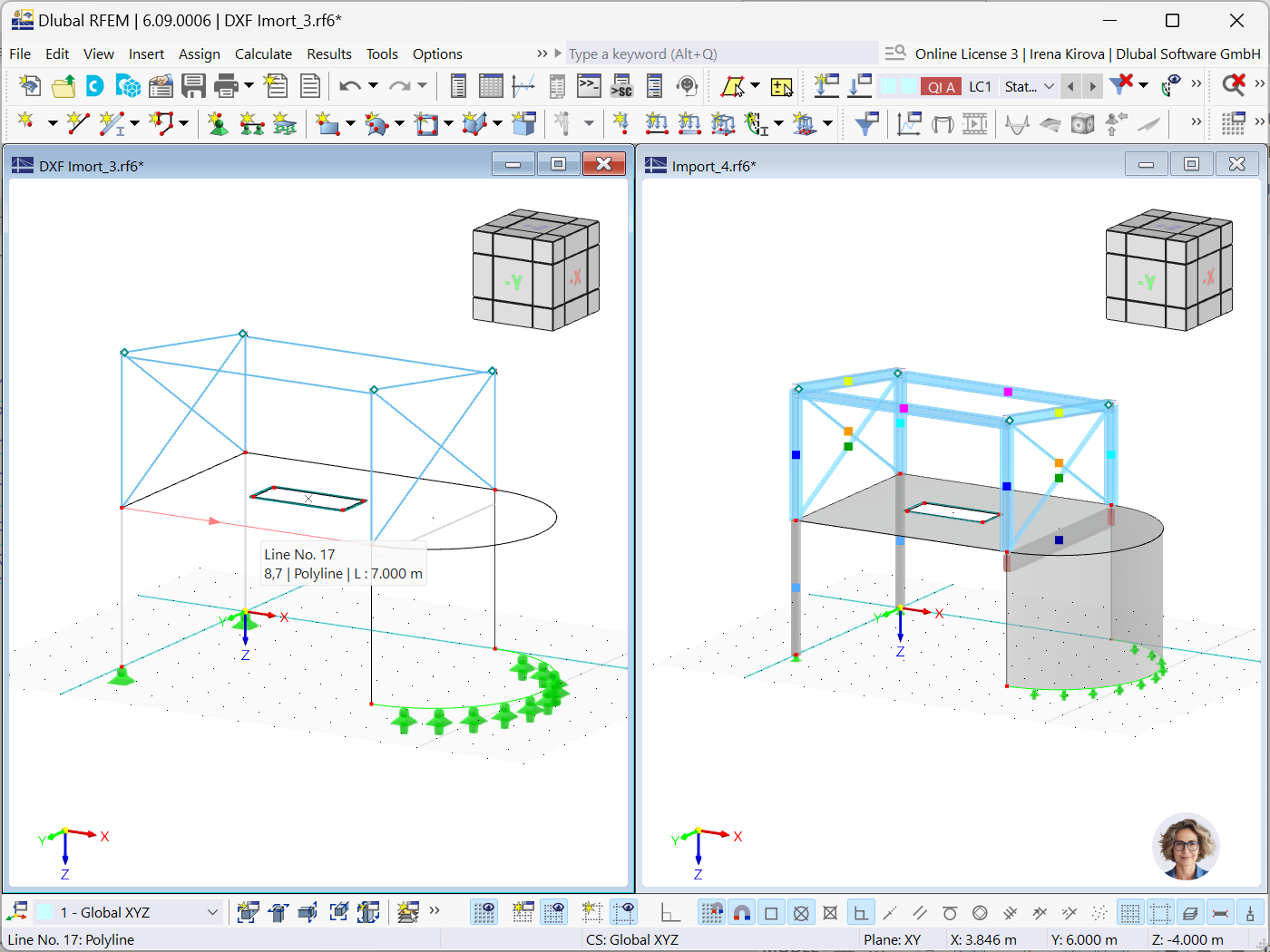

Comparison of 3DFace Import: Without vs. with “Import 3DFaces as Surfaces” Option

Comparison of 3DFace object import from DXF to RFEM 6 with and without the surface option.

This image illustrates the process of importing 3DFace objects from a DXF file into RFEM 6, highlighting the difference when using the import option to convert these objects into surfaces. The comparison allows users to understand the impact of this setting on the modeling process.

3DFace object import
DXF file
RFEM 6
surface modeling
import options
