surface colors

[doug]

Hello, I have to represent results of an envelope case on a surface.
For example, I want to show the moment my.

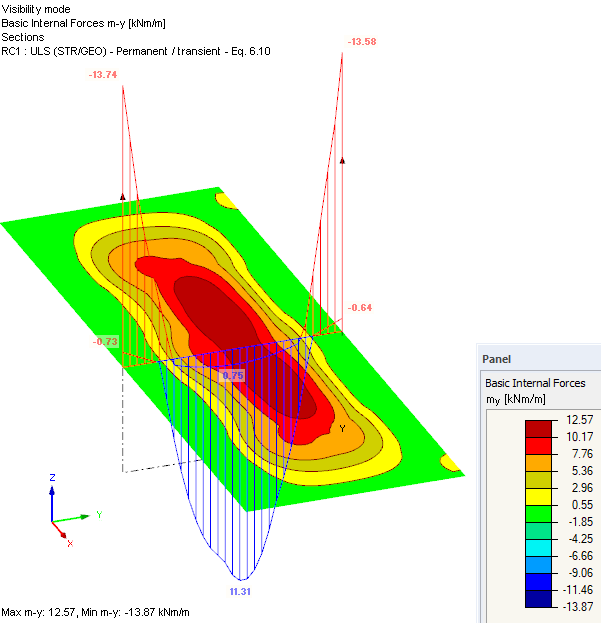

The surface contours show only the "maximum" moment on the envelope cases (image above).
But I'm be interested in representing also the "minimum" moment on the envelope cases (in the section-cut it is clear that the moment near borders reaches a large negative value: I would like to represent this).
And it would be also useful to represent also the "maximum of the absolute" moment (i.e. with the maximum positive near center of the surface and the minimum negative near the edges).
Any suggestion on how to do this?
Doug

[Frank Faulstich]

Hello Doug,

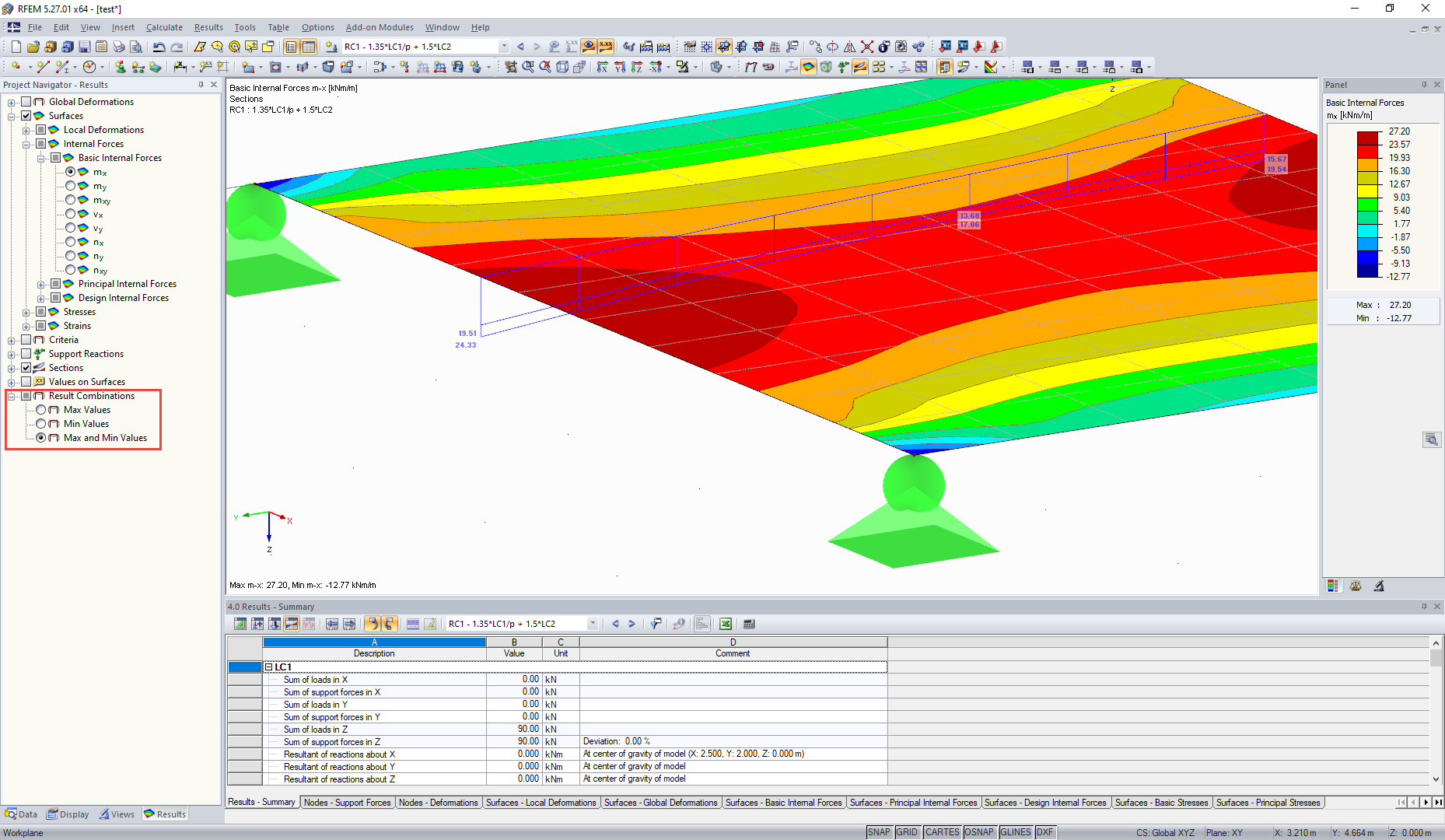

for result combinations you have this section in the result navigator:

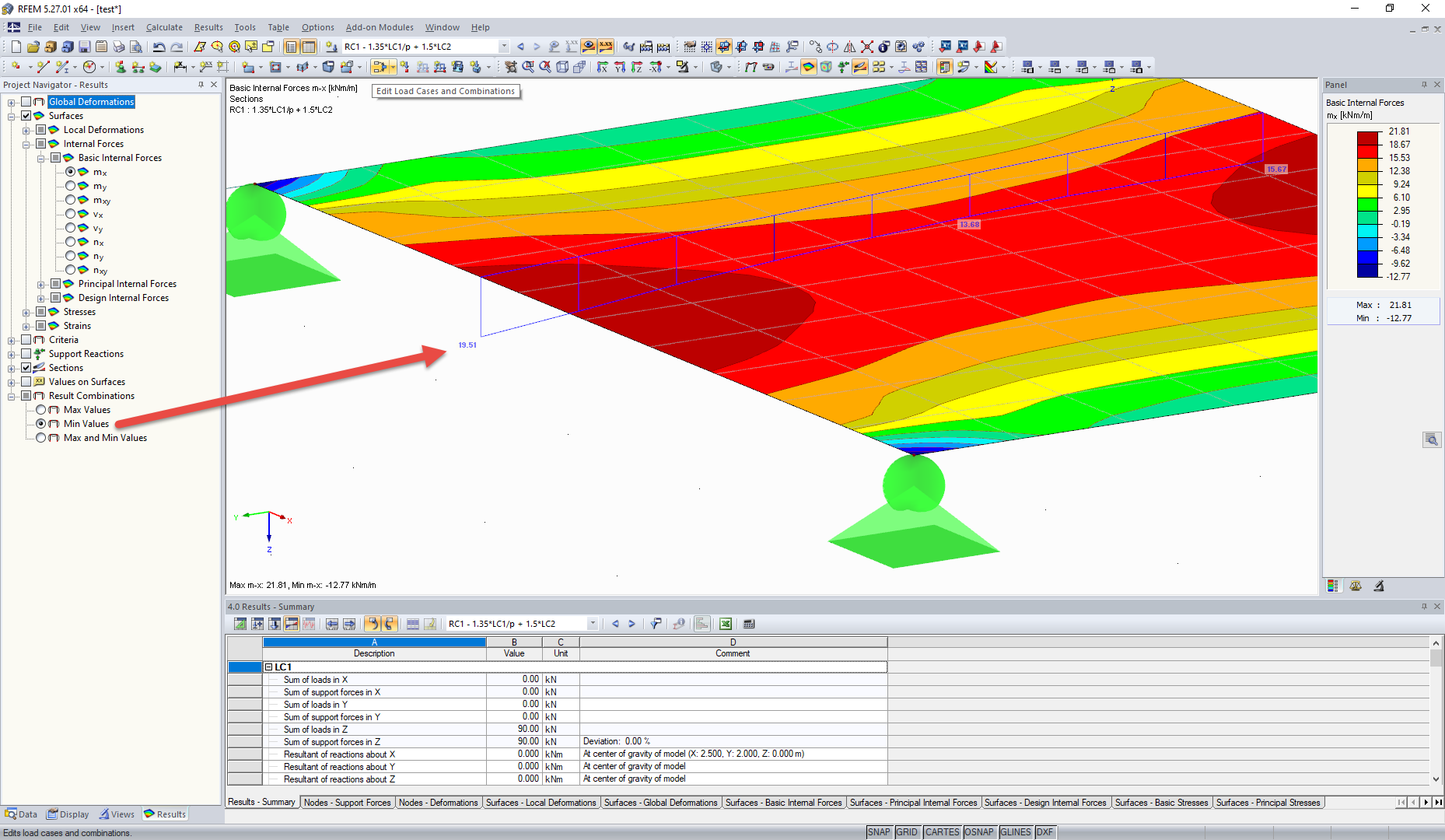

This also allows you to display only the minimum internal forces.



Frank Faulstich
