Global Deformation of Wooden Bridge Structure
The wooden bridge structure displays maximum deflection in the second span center due to a specific load combination.

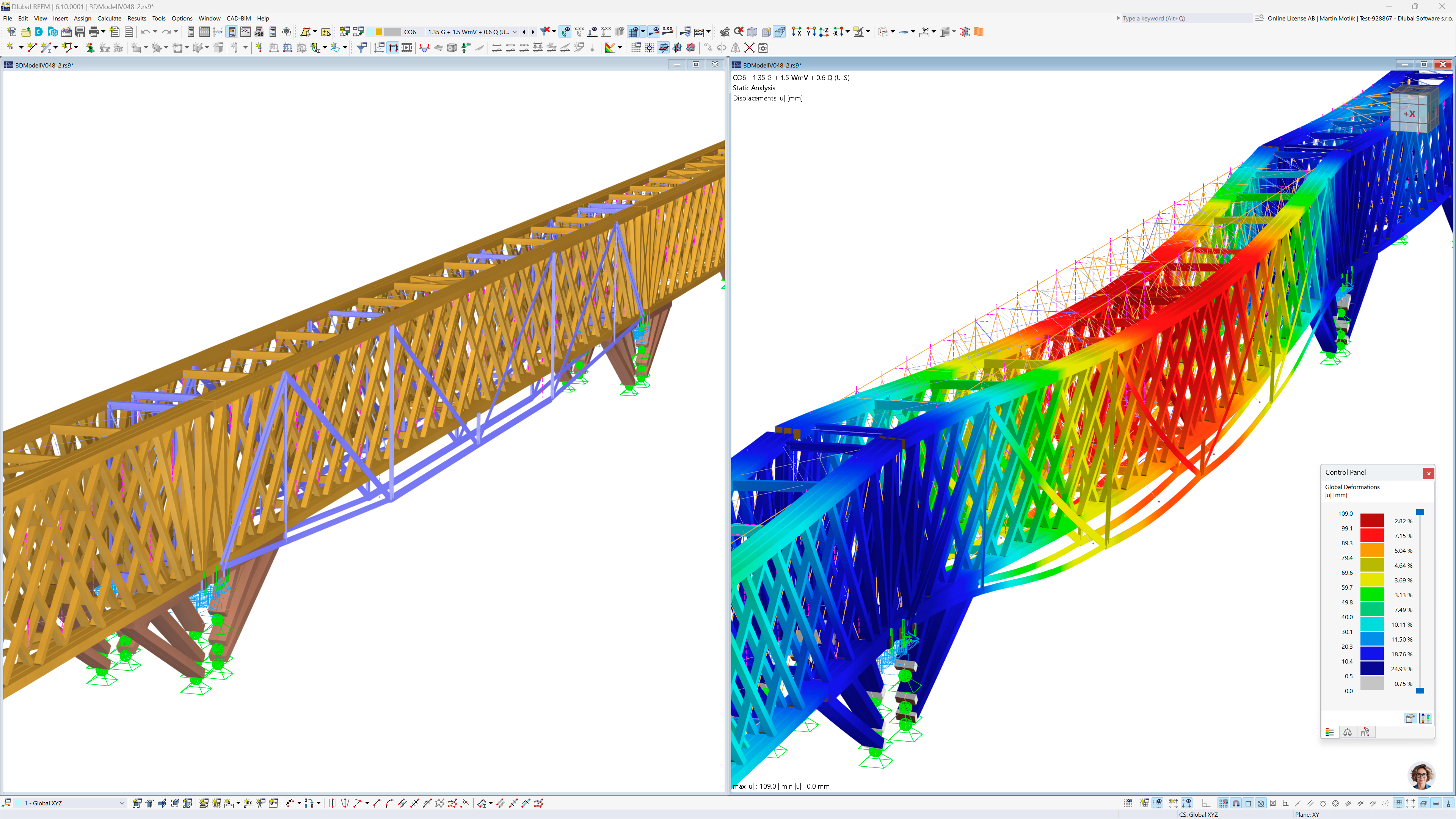

The image shows the global deformation of a wooden bridge structure under a load combination. The second span of the bridge exhibits the maximum deflection at its center. This structural model was created by Konstruktionsgruppe Bauen.
3D Model
Specifications
| Number of Nodes | 1302 |
| Number of Lines | 2043 |
| Number of Members | 2043 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 21 |
| Number of Load Combinations | 21 |
| Number of Result Combinations | 6 |
| Total Weight | 150.426 tons |
| Dimensions (Metric) | 122,438 x 8,240 x 4,104 m |
| Dimensions (Imperial) | 401.7 x 27.03 x 13.46 feet |
