Beam Expansion Due to Temperature Variation

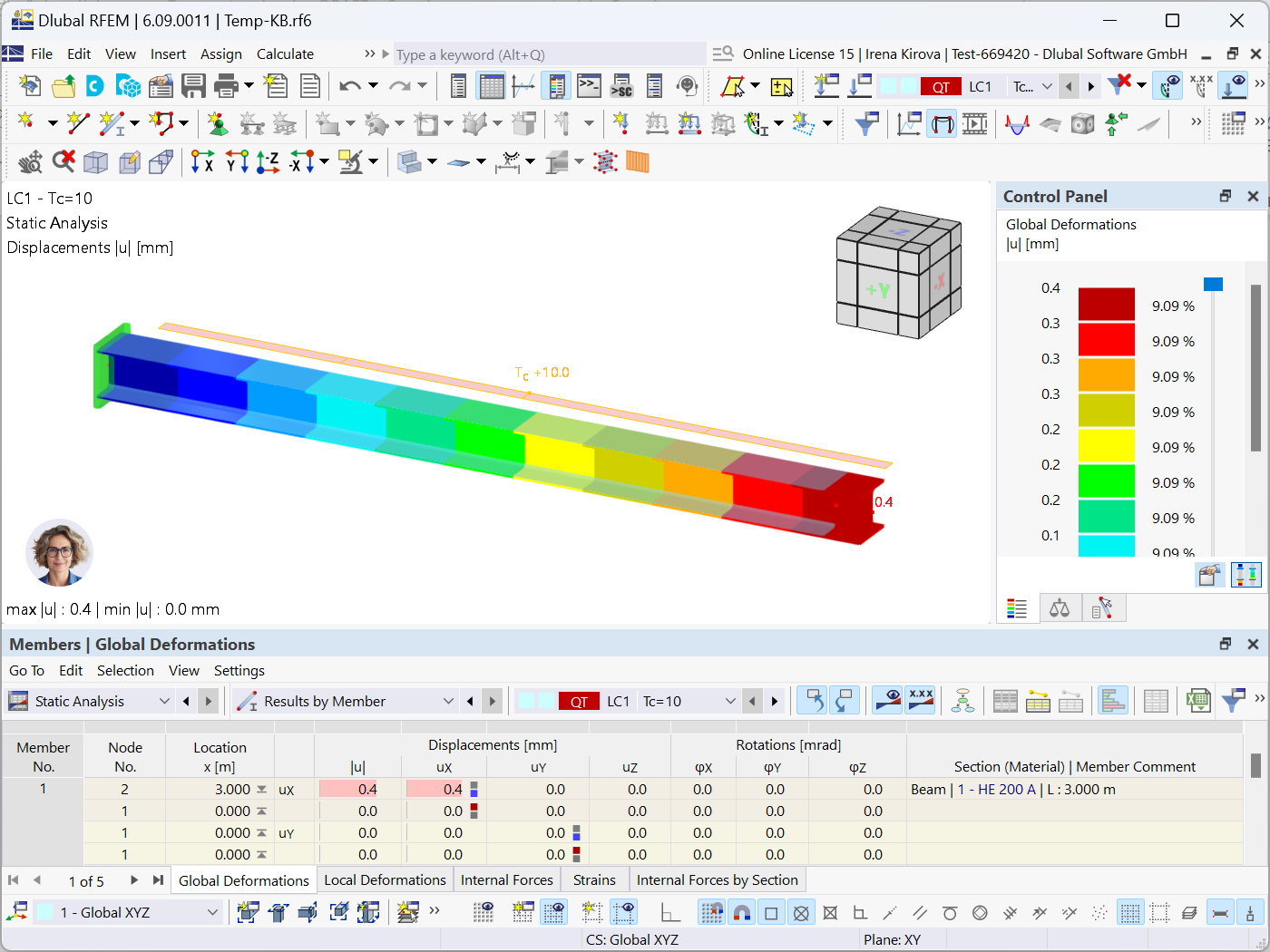

Illustration of beam deformation in RFEM 6 caused by a uniform temperature increase.

The image displays a beam subjected to expansion as a result of uniform temperature distribution in RFEM 6. The deformation is a consequence of thermal influence on the component. This highlights the capability of the software to simulate temperature-induced structural changes.
