Member Type "Anchor" with Generated Members

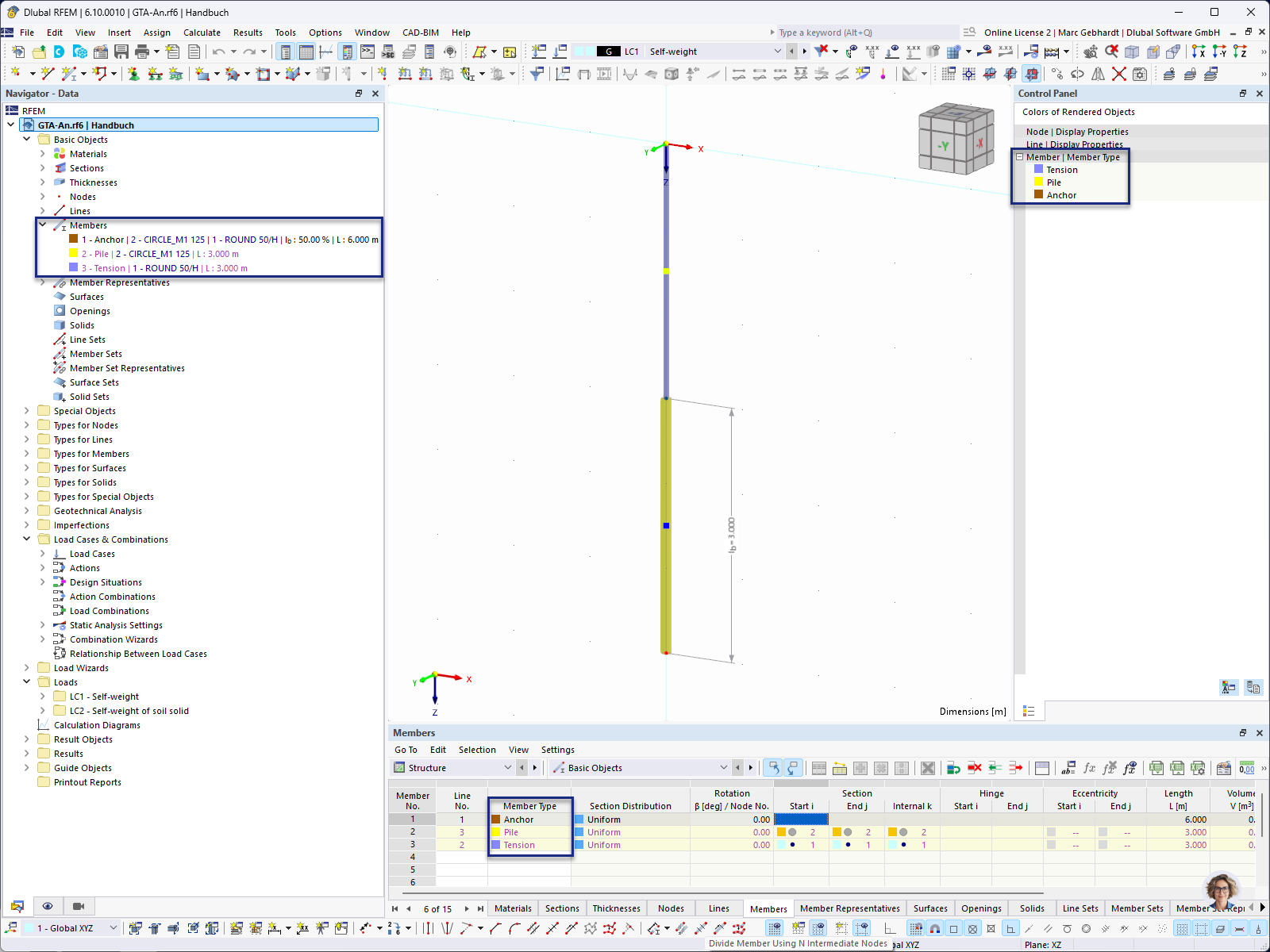

Program interface showing anchor with generated tension members and piles in detailed view.

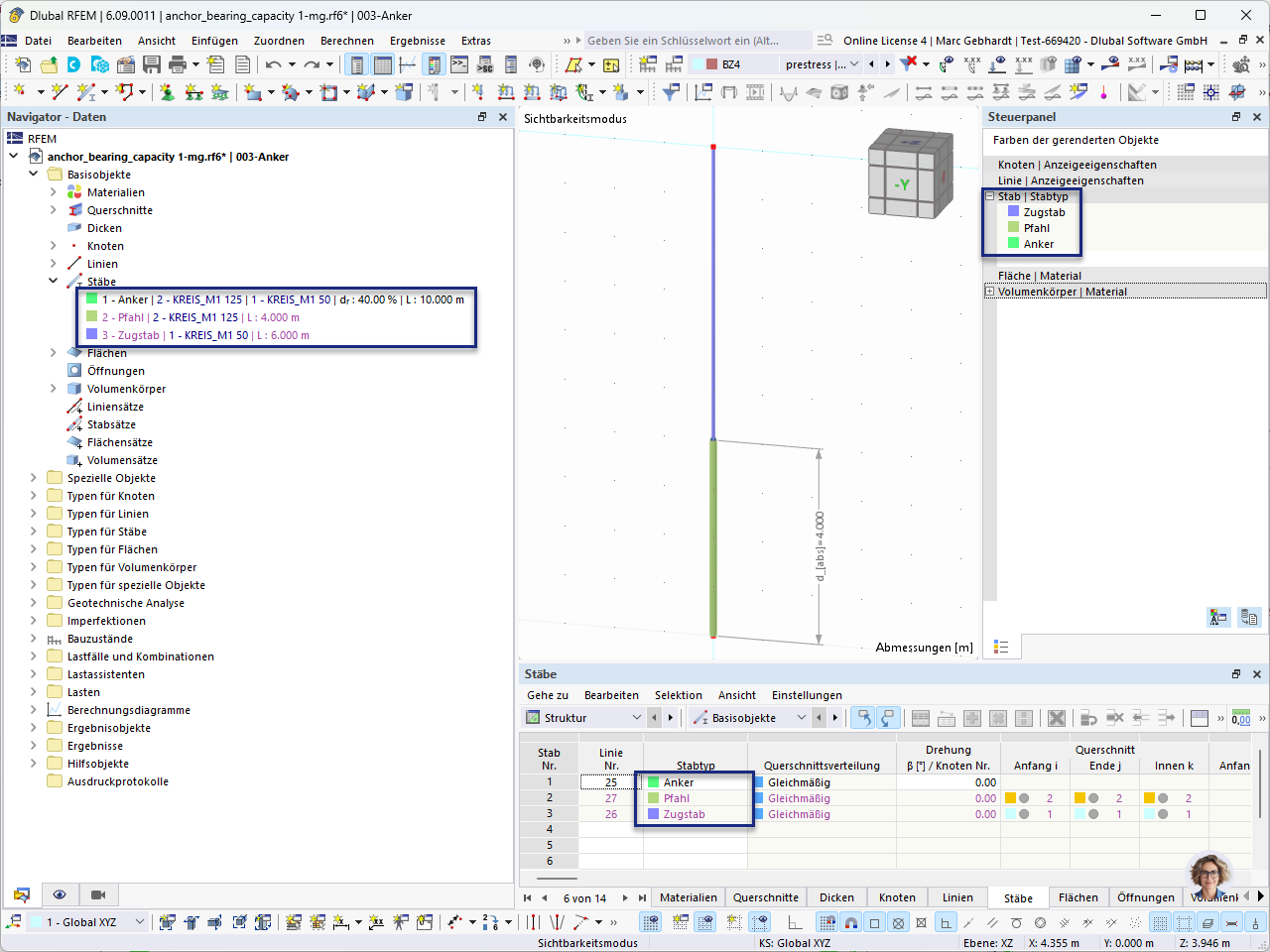

This image shows the program interface with the objects automatically generated by the "Anchor" member type. You can see members of the type "tension members" and "pile", which represent the tendon part without bond and the grouted body of the anchor. The view provides an overview and detailed view of the generated structural elements © Photo by

Anchor member display
Tension ties and piles
