Deformations of Building D in La Rochelle

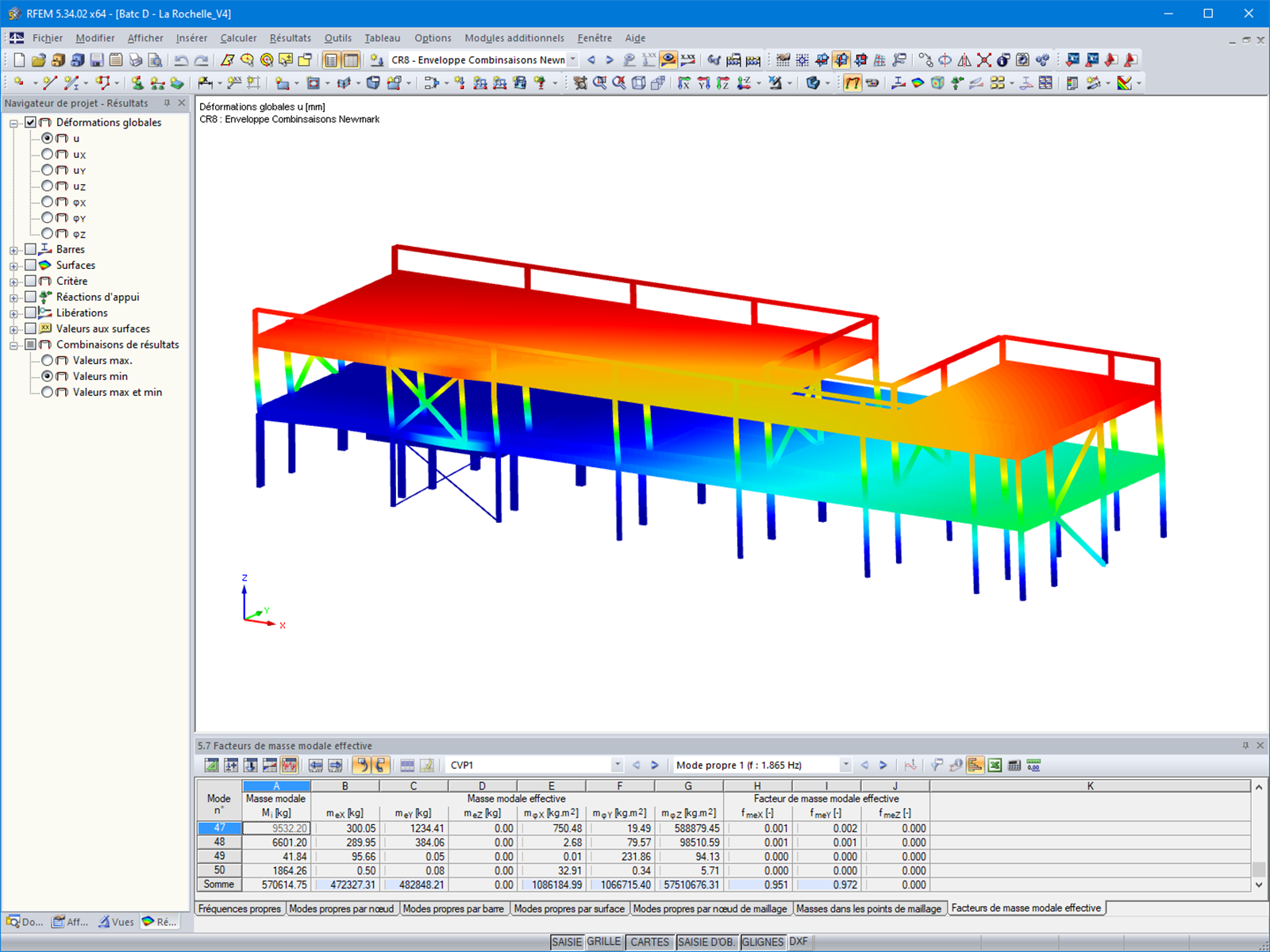

Display of building deformations in the secondary school complex in La Rochelle, with a timber and steel structure
The image shows the deformations of Building D of a school campus in La Rochelle. It highlights the structural analysis performed using RFEM 5, RF-TIMBER Pro, RF-STEEL EC3 and RF-DYNAM Pro. The model includes the analysis of a timber-concrete floor and a timber-steel composite structure. The copyright notice © LCA Construction Bois confirms the technical origin of the analysis.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 397 |
| Number of Lines | 780 |
| Number of Members | 579 |
| Number of Surfaces | 37 |
| Number of Load Cases | 20 |
| Number of Load Combinations | 62 |
| Number of Result Combinations | 11 |
| Total Weight | 299,390 t |
| Dimensions (Metric) | 35.622 x 15.531 x 7.635 m |
| Dimensions (Imperial) | 116.87 x 50.95 x 25.05 feet |
| Program Version | 5.28.02 |
