Axial Force in Timber Panel Wall Ribs in RFEM 6

Simulation of the governing axial force distribution in the ribs of a timber panel wall in RFEM 6

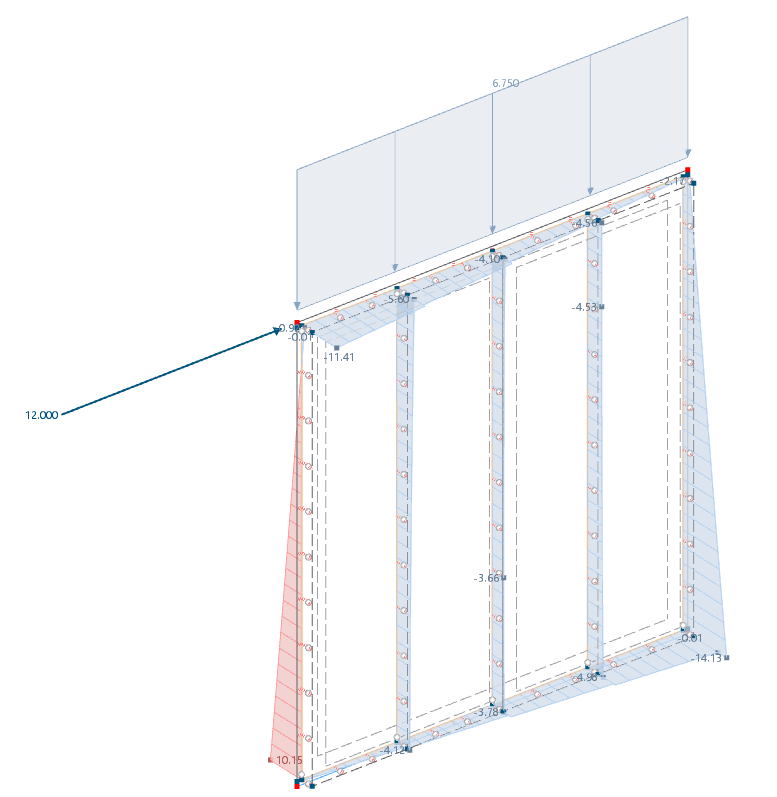

The image shows a numerically determined model of a timber panel wall, in which the governing axial force in the ribs is displayed. Color coding and defined measuring points illustrate the critical load areas that were analyzed in the simulation with RFEM 6.

Axial force in ribs
Timber panel wall modeling
RFEM 6 analysis
Timber structure calculation
