Timber Panel Wall: Load Distribution in RFEM 6

Timber panel wall model in RFEM 6 without continuity effect and bending moments on ribs

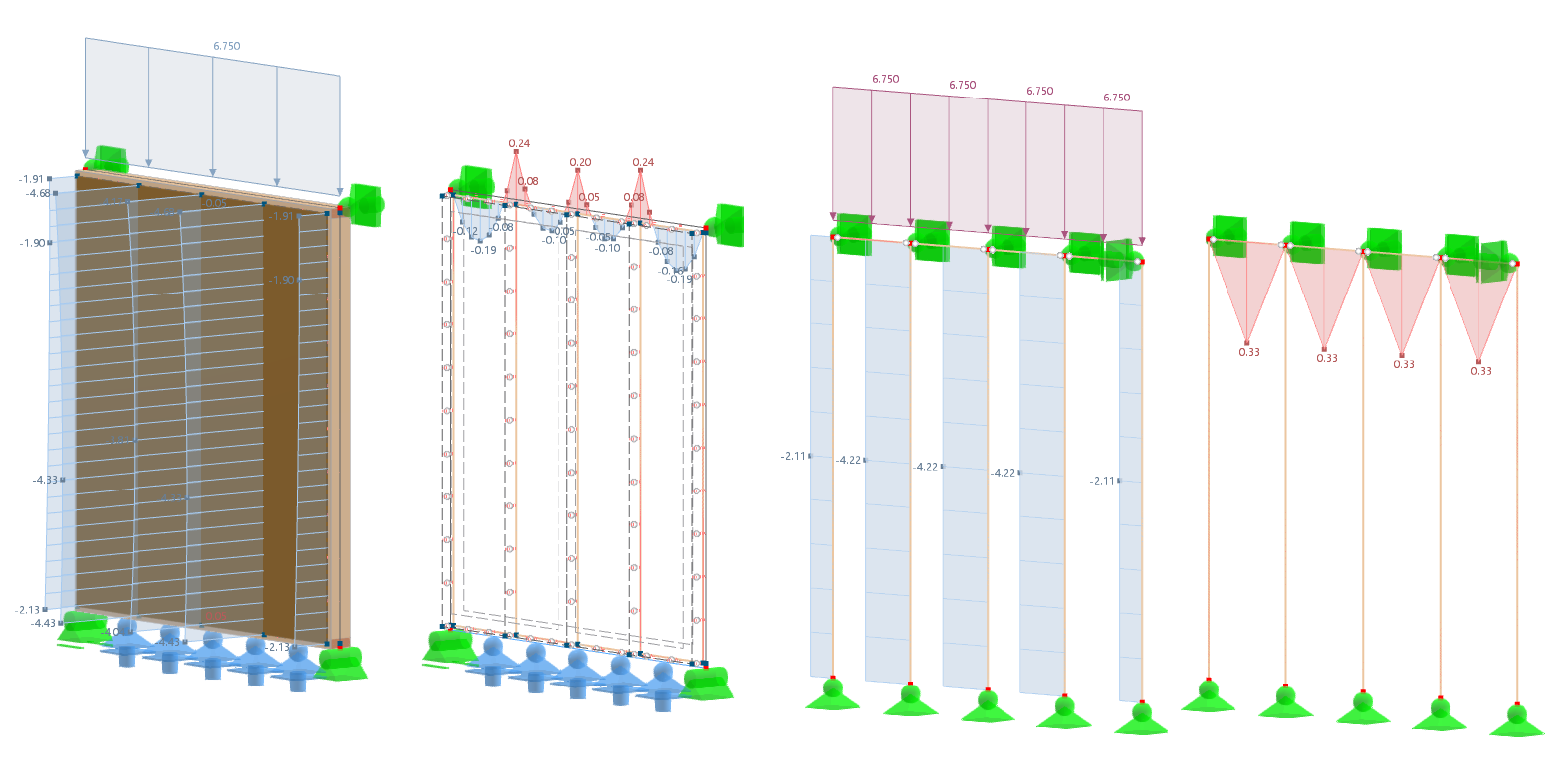

The image shows a model of a timber panel wall in which the distribution of axial forces and bending moments on the ribs is displayed. On the left side, axial forces without effect of continuity are modeled, while bending moments are highlighted on the right. The display was created in RFEM 6 to analyze the load distribution in timber structures.
