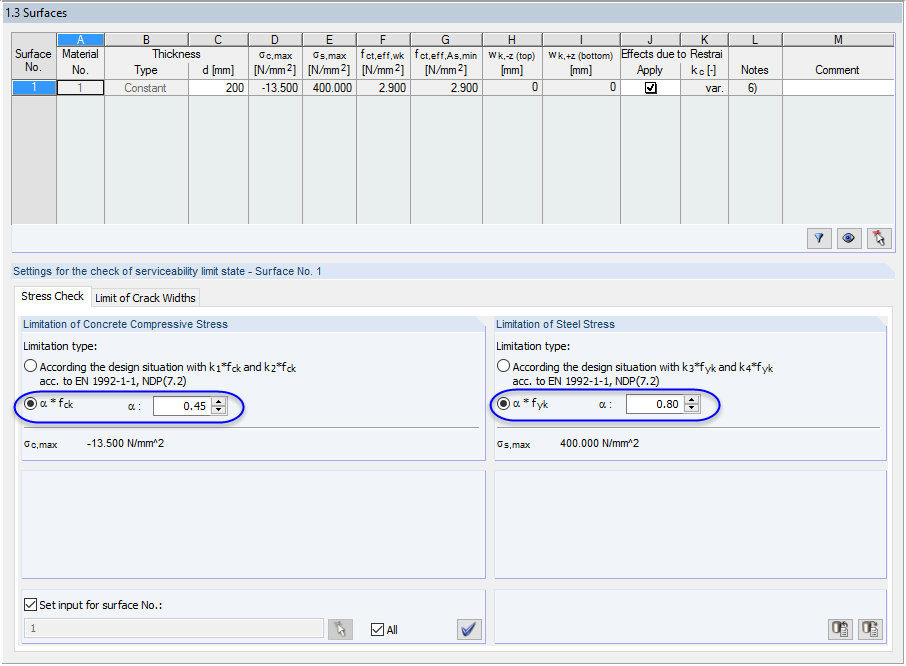

Image 2.90 Limitation of Concrete and Steel Stresses in Window 1.3 Surfaces, Tab Stress Analysis
Graphic showing the limitation of concrete and steel stresses in the Stress Analysis tab.
The display shows the limits of concrete and steel stresses as applied in a window for analyzing surfaces in the stress analysis tab. Technical values and calculations are visualized to show precise stress limits in the respective areas.
