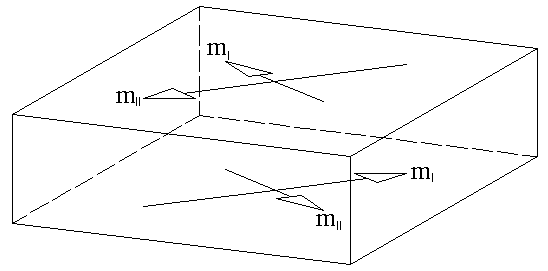

Image 2.28 Final Principal Moments at Top and Bottom Side of Plate
Illustration of the moment distribution on the top and bottom side of a plate
The display illustrates the ultimate principal moments at the top and bottom side of a plate. Value sweeps of the moment distribution are shown, which represent the stress in the respective plate areas. The image focuses on the precise determination of the moment values, which are essential for the design and analysis of plate structures.
