Flexural Buckling

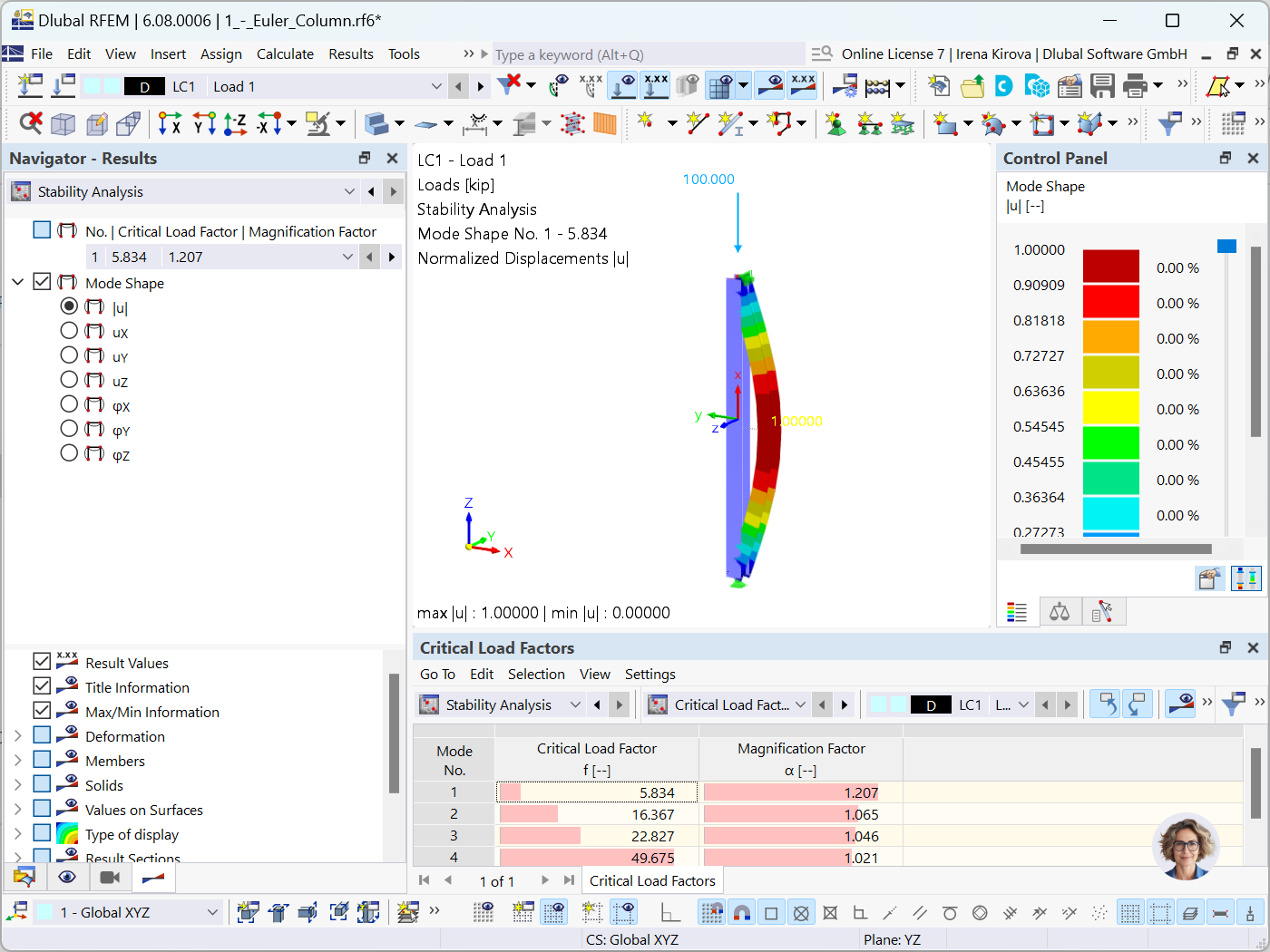

Engineering model of flexural buckling analysis in structural software.
The image illustrates a flexural buckling analysis using structural analysis software, showcasing the simulation of stability and deformation under specific load conditions. In the context of civil and structural engineering, flexural buckling is a critical concern when evaluating the stability of slender components subjected to compressive forces. Advanced software solutions, such as those provided by Dlubal, enable engineers to conduct comprehensive stability analyses. Add-ons in Dlubal software, such as the RF-/STEEL EC3 or similar, facilitate detailed calculations by assessing buckling modes and factors affecting structural integrity. These analytical tools provide engineers with precise evaluations, enabling effective design and optimization of structures to prevent buckling and enhance safety.
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.191 tons |
| Dimensions (Metric) | 0.000 x 3.658 x 0.000 m |
| Dimensions (Imperial) | 0 x 12 x 0 feet |
