Dialog Box "Shear Walls" | Design Properties "Design Supports"
Shear Wall Design Properties | Design Supports

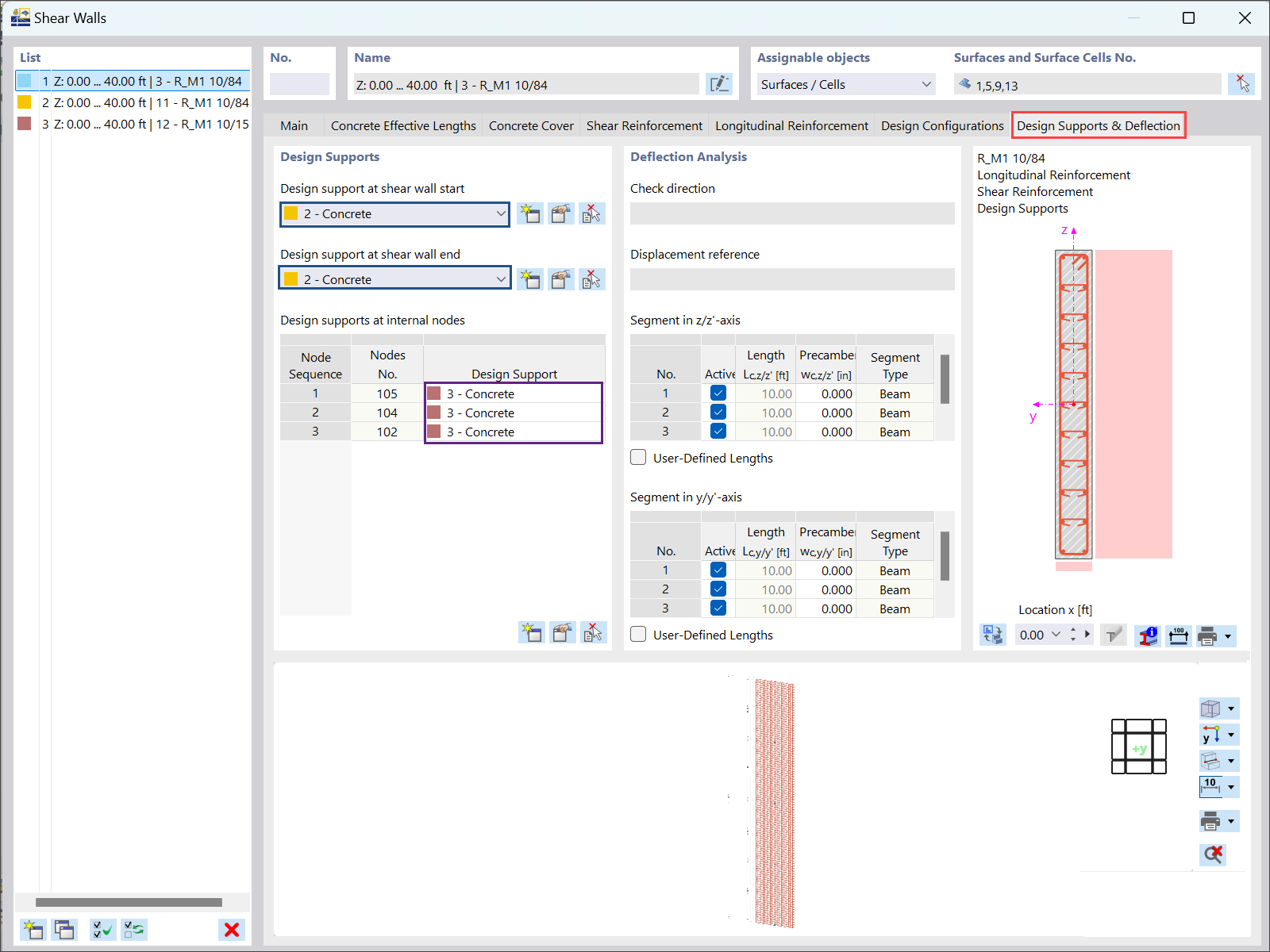

The image displays the "Shear Walls" dialog box within a structural analysis software, focusing on the "Design Supports" properties. This interface allows engineers to define and adjust support conditions for shear walls, crucial for accurate load distribution and stability analysis. The dialog box is part of a comprehensive toolset for optimizing structural design and ensuring compliance with engineering standards.
