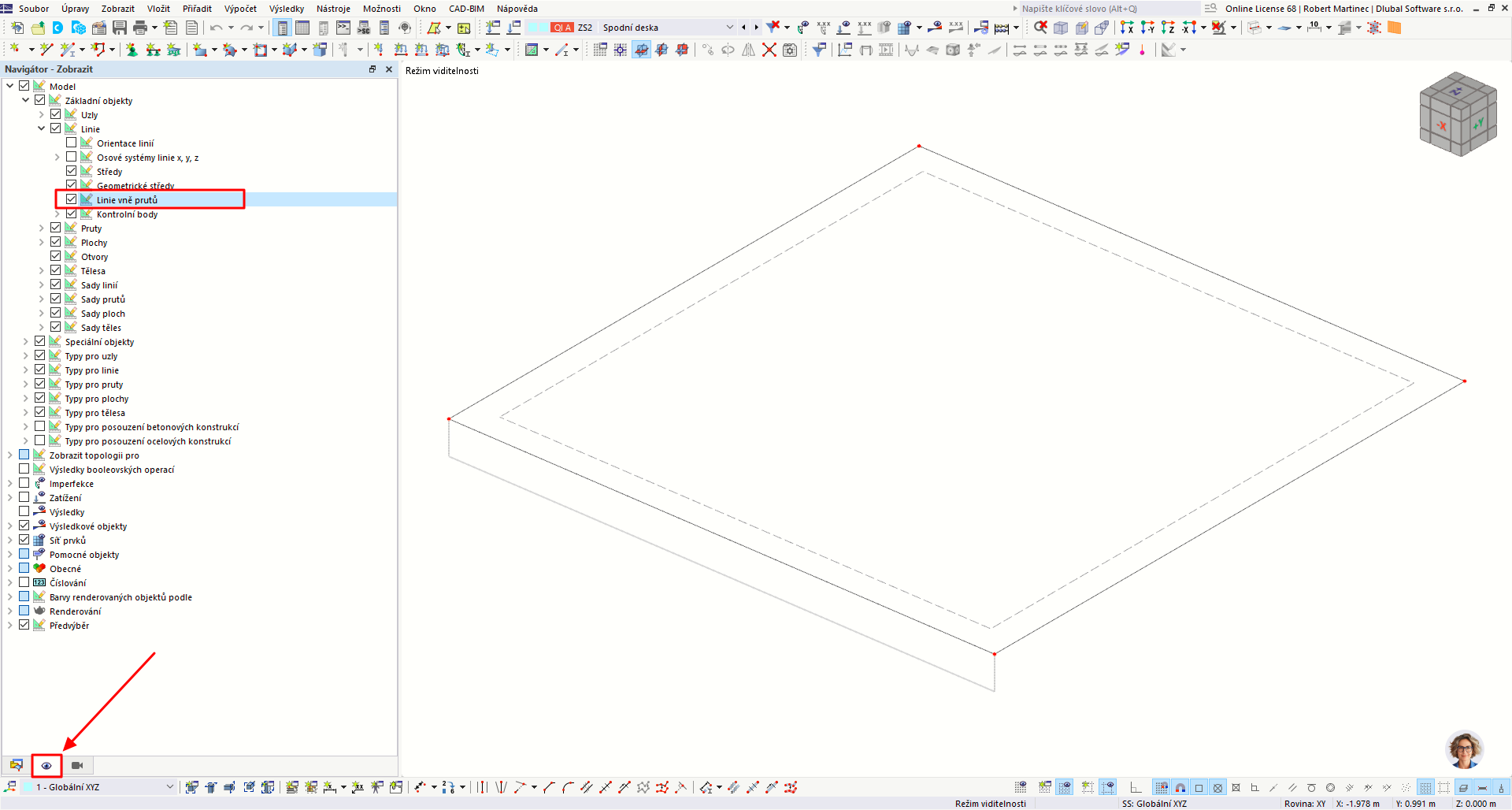

Definition lines for ribs can be activated in Navigator View > Model > Basic Objects > Lines > Lines outside of members.
FAQ 005623 | Created model with slab bordered by ribs. When assigning border line of area to rib type member and aligning it to bottom face of area.
