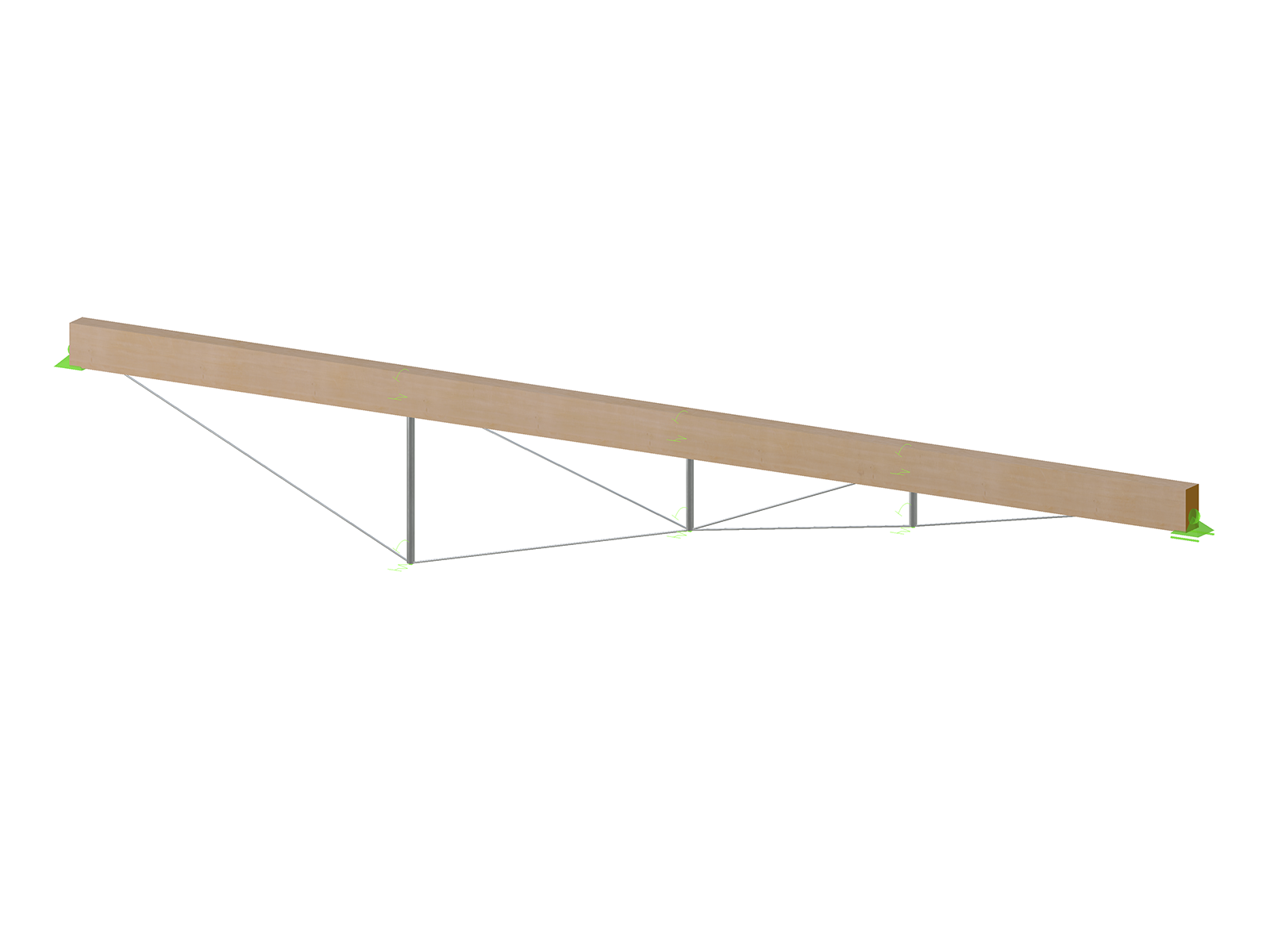

Model 005046 | Inverted Bowstring Beam
3D Model
Specifications
Number of Nodes | 8 |
Number of Lines | 10 |
Number of Members | 10 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 3 |
Number of Load Combinations | 12 |
Number of Result Combinations | 0 |
Total Weight | 0.317 tons |
Dimensions (Metric) | 10.000 x 1.375 x 0.000 m |
Dimensions (Imperial) | 32.81 x 4.51 x 0 feet |
