2024-06-13
050972

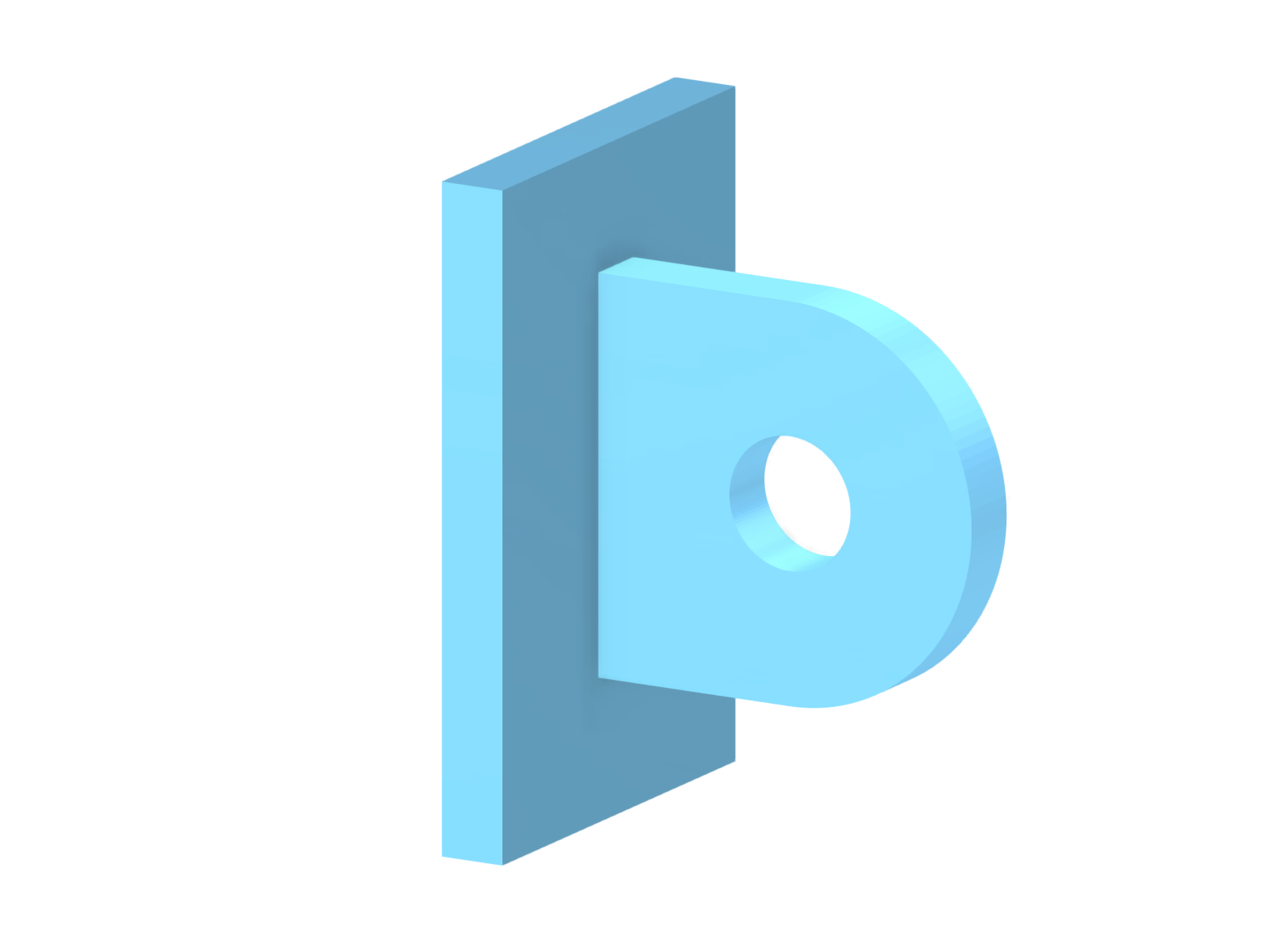

Splice with Line Welded Joint
Used in
3D Model
Specifications
| Number of Nodes | 22 |
| Number of Lines | 25 |
| Number of Members | 12 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.021 tons |
| Dimensions (Metric) | 0,200 x 0,300 x 0,200 m |
| Dimensions (Imperial) | 0.66 x 0.98 x 0.66 feet |
