Design and Dimensioning Based on Building Information Modeling (BIM) Tools – Case of Prestressed Beam Bridge over Lake Toho in Pahou

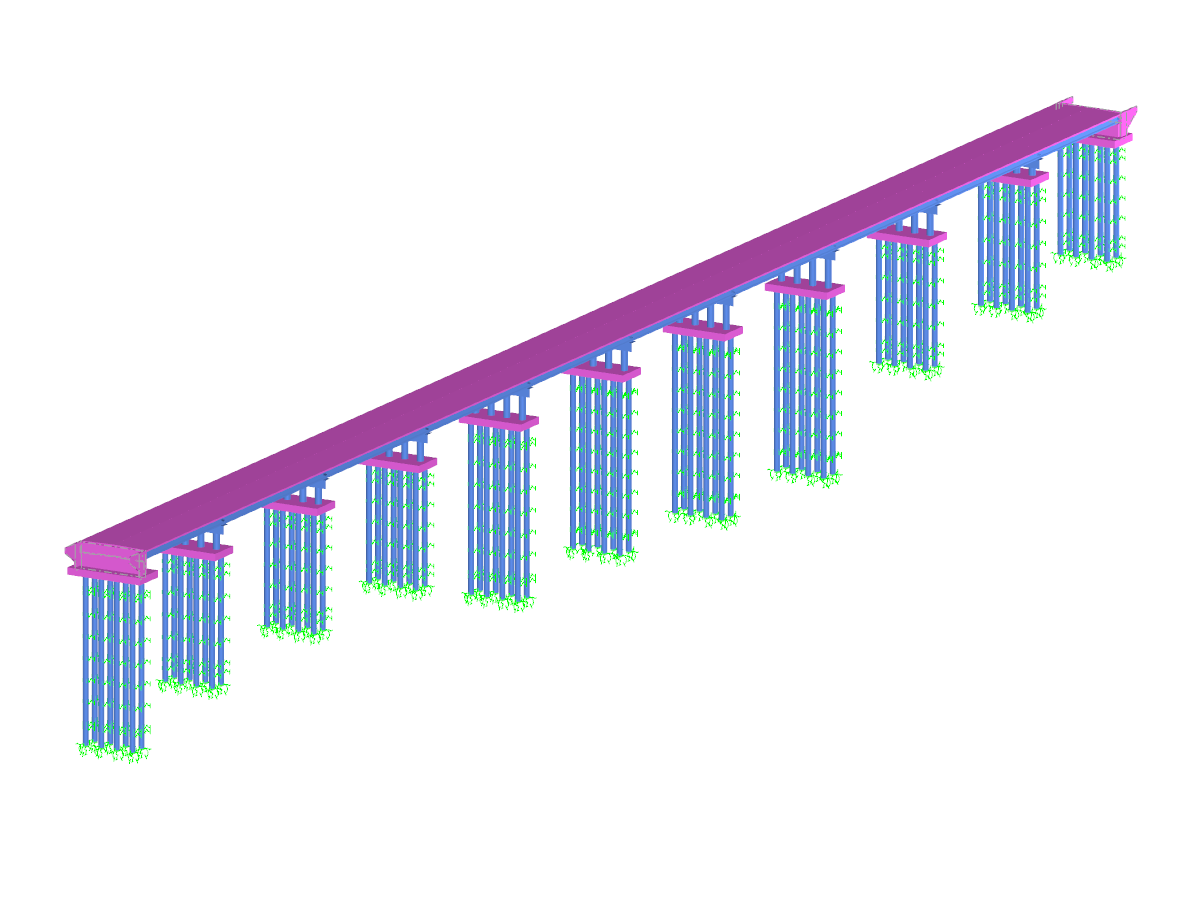

GT 000456 | Prestressed beam bridge across Lake Toho in Pahou, modeled using the BIM technology. Accurate visualization of structural components.
The image shows a prestressed beam bridge over Lake Toho in Pahou. This project uses building information modeling (BIM) to improve design accuracy and efficiency. The structural elements that support the bridge are clearly visible. The BIM approach enhances understanding of the interactions between the bridge components.
3D Model
Specifications
| Number of Nodes | 749 |
| Number of Lines | 775 |
| Number of Members | 289 |
| Number of Surfaces | 133 |
| Number of Solids | 0 |
| Number of Load Cases | 107 |
| Number of Load Combinations | 1648 |
| Number of Result Combinations | 7 |
| Total Weight | 15014.940 tons |
| Dimensions (Metric) | 335,846 x 40,868 x 14,000 m |
| Dimensions (Imperial) | 1101.86 x 134.08 x 45.93 feet |
