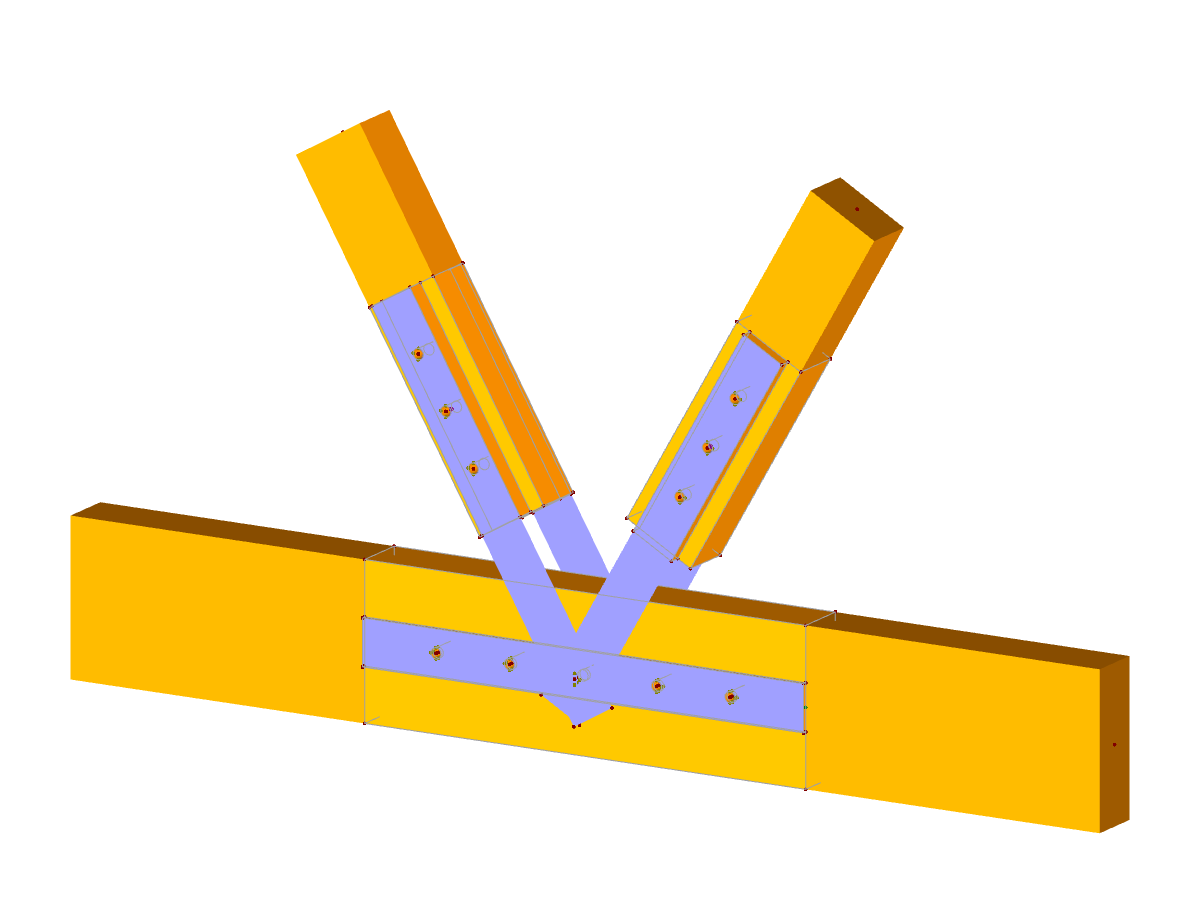

Model 004574 | Steel-Wood Hinged Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 285 |
| Number of Lines | 260 |
| Number of Members | 41 |
| Number of Surfaces | 145 |
| Number of Solids | 9 |
| Total Weight | 0.033 tons |
| Dimensions (Metric) | 1.400 x 0.132 x 0.706 m |
| Dimensions (Imperial) | 4.59 x 0.43 x 2.32 feet |
| Program Version | 5.26.01 |
