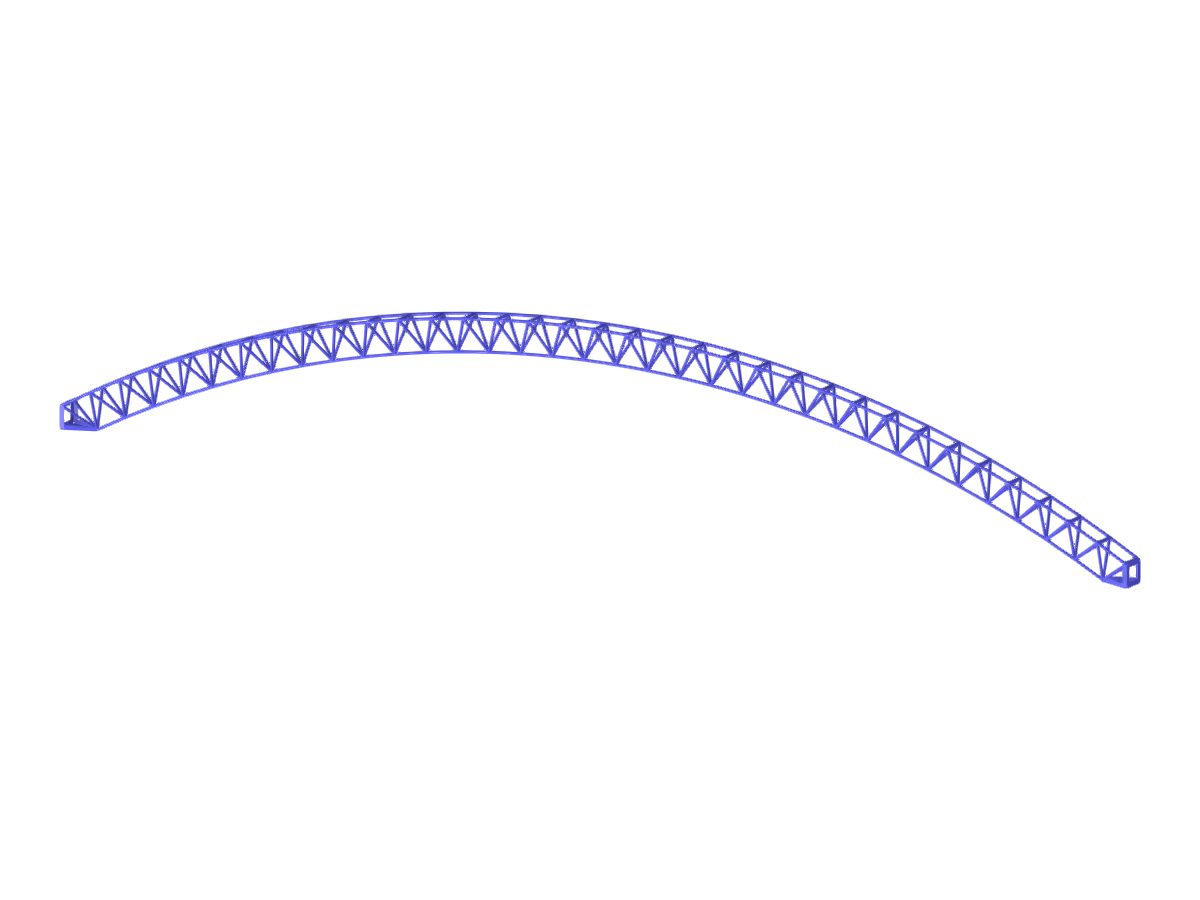

Model 004451 | Curved Lattice Girder
Used in
3D Model
Specifications
Block parameters editable dynamically | |
Number of Nodes | 111 |
Number of Lines | 187 |
Number of Members | 184 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 2 |
Number of Load Combinations | 4 |
Number of Result Combinations | 0 |
Total Weight | 0.208 tons |
Dimensions (Metric) | 10.000 x 10.193 x 0.200 m |
Dimensions (Imperial) | 32.81 x 33.44 x 0.66 feet |
