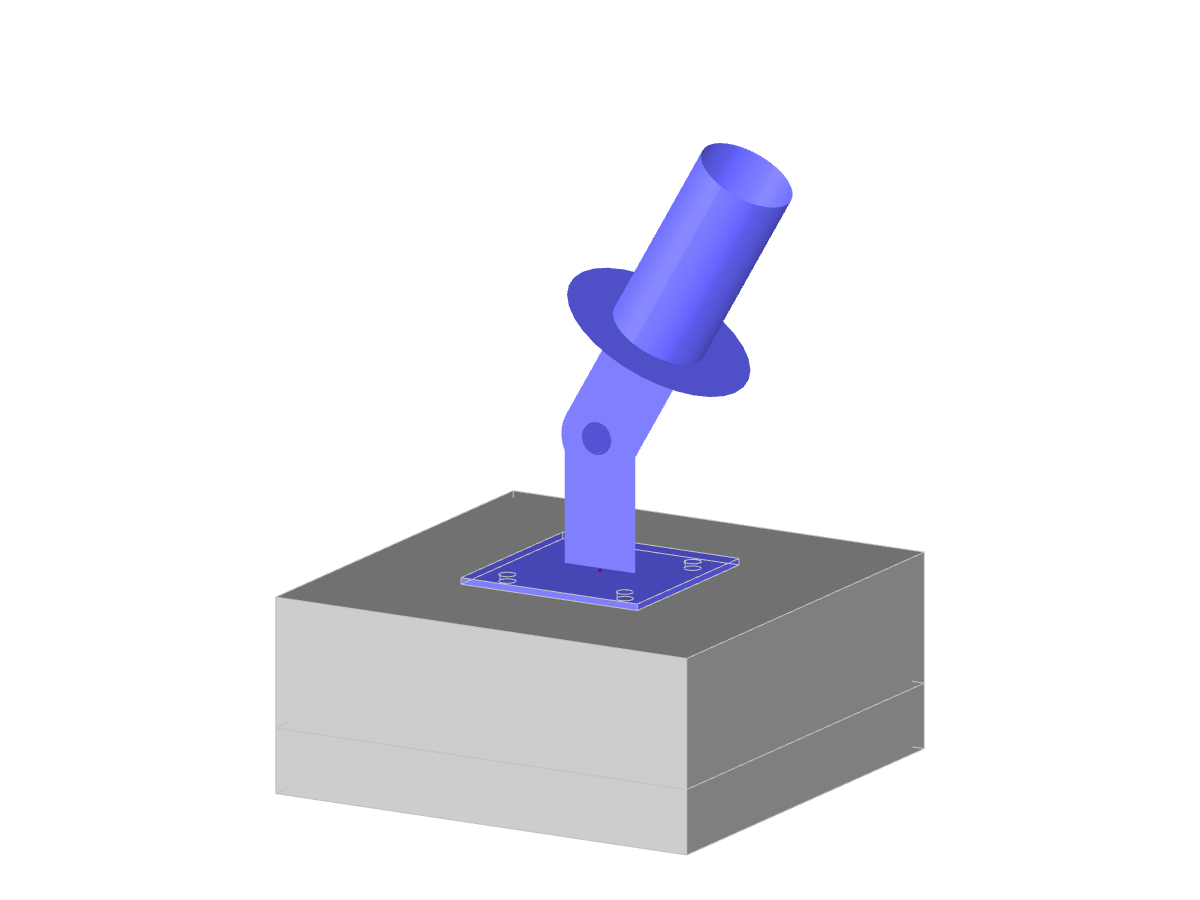

Model 004375 | Anchor Plate for Hinged Column
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 95 |
| Number of Lines | 69 |
| Number of Members | 6 |
| Number of Surfaces | 38 |
| Number of Solids | 3 |
| Total Weight | 0.399 tons |
| Dimensions (Metric) | 0.727 x 0.700 x 1.042 m |
| Dimensions (Imperial) | 2.39 x 2.3 x 3.42 feet |
| Program Version | 5.26.02 |
