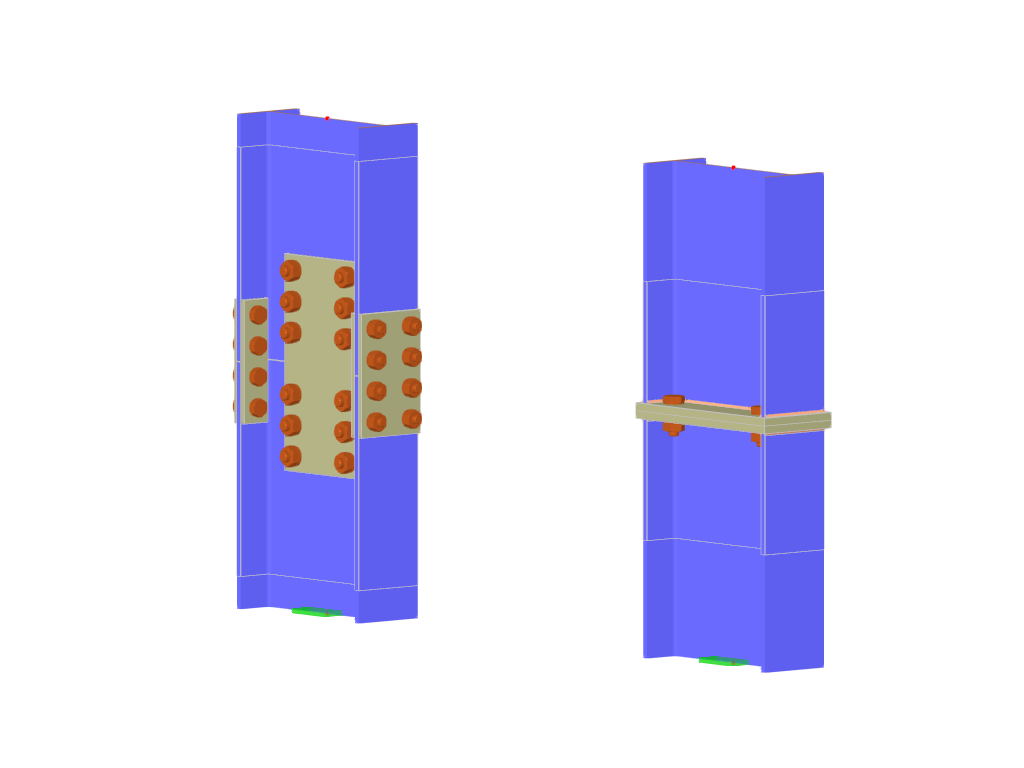

AISC Splice Connection
Used in
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.182 tons |
| Dimensions (Metric) | 1.524 x 1.219 x 0.000 m |
| Dimensions (Imperial) | 5 x 4 x 0 feet |
