FPC012 | Prismatic Folded Structure Systems. Cross-Folded Surfaces Spanned Diagonally over Rectangular Floor Plan, Ridges Sloping Toward Center with Parameters

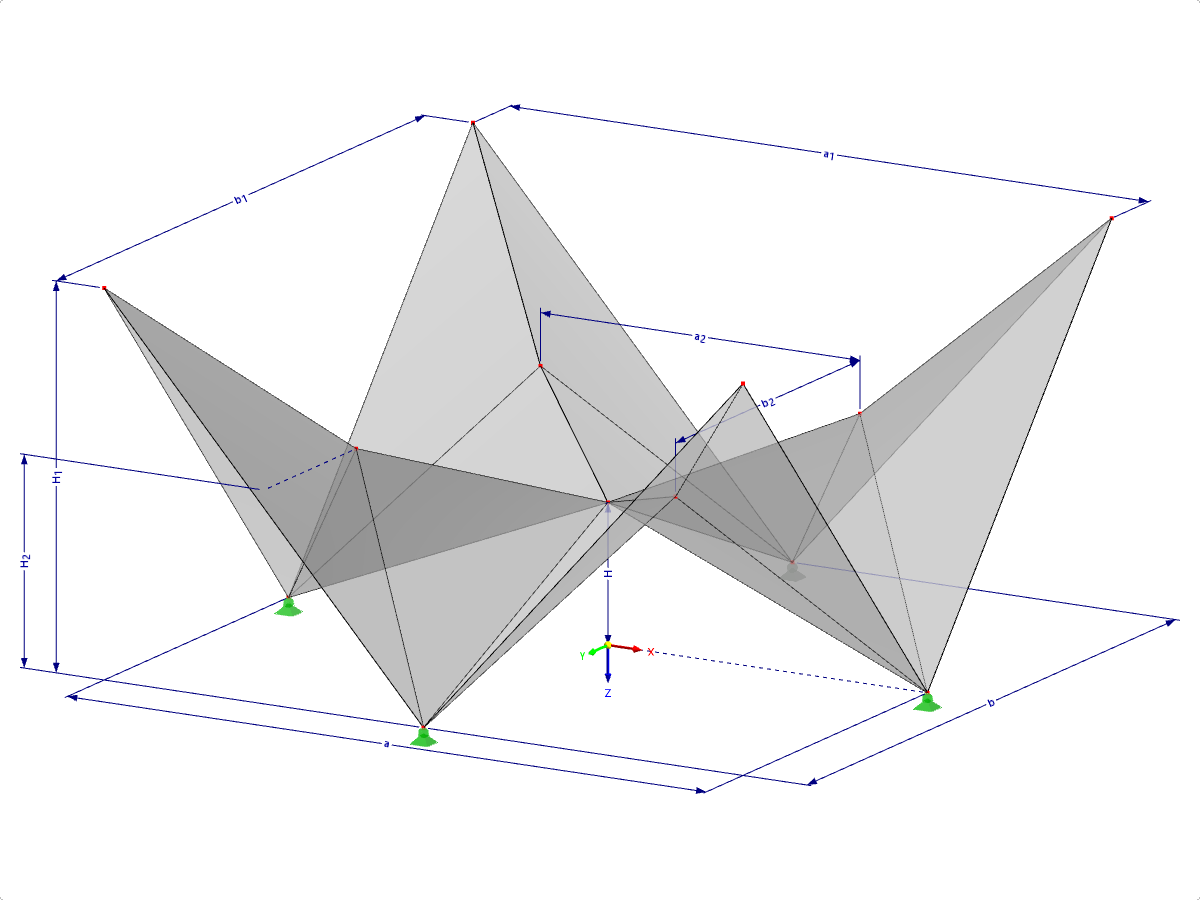

Model 000531 | FPC012 | Prismatic Folded Structure Systems. Cross-Folded Surfaces Spanned Diagonally over Rectangular Floor Plan, Ridges Sloping Toward Center with Parameters
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 13 |
| Number of Lines | 28 |
| Number of Members | 0 |
| Number of Surfaces | 16 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 424.741 tons |
| Dimensions (Metric) | 20,000 x 11,000 x 20,000 m |
| Dimensions (Imperial) | 65.62 x 36.09 x 65.62 feet |
