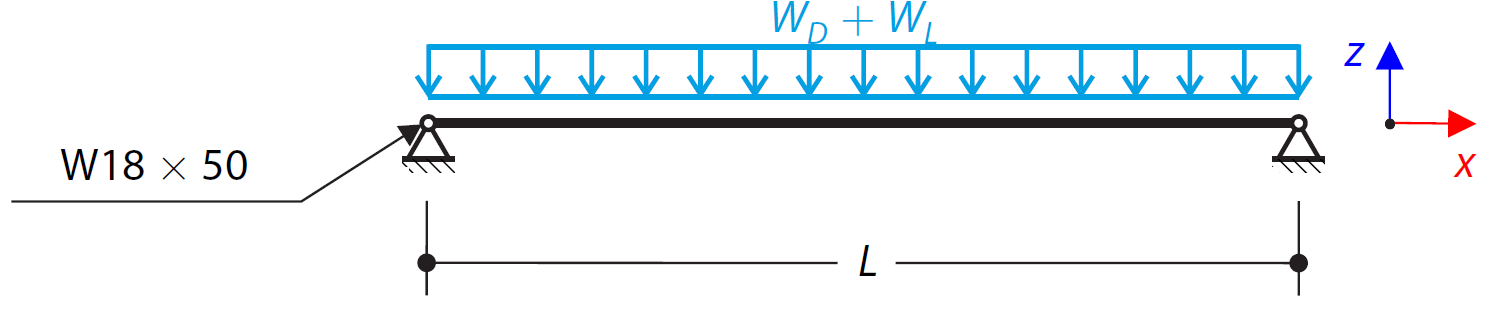

W-Shape Flexural Member Design Diagram
VE #ng_verificationexample# | W-Shaped Flexural Member Design According to AISC F.1-1A
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.794 tons |
| Dimensions (Metric) | 10.668 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 35 x 0 x 0 feet |
