BG021 | Beam Grillage

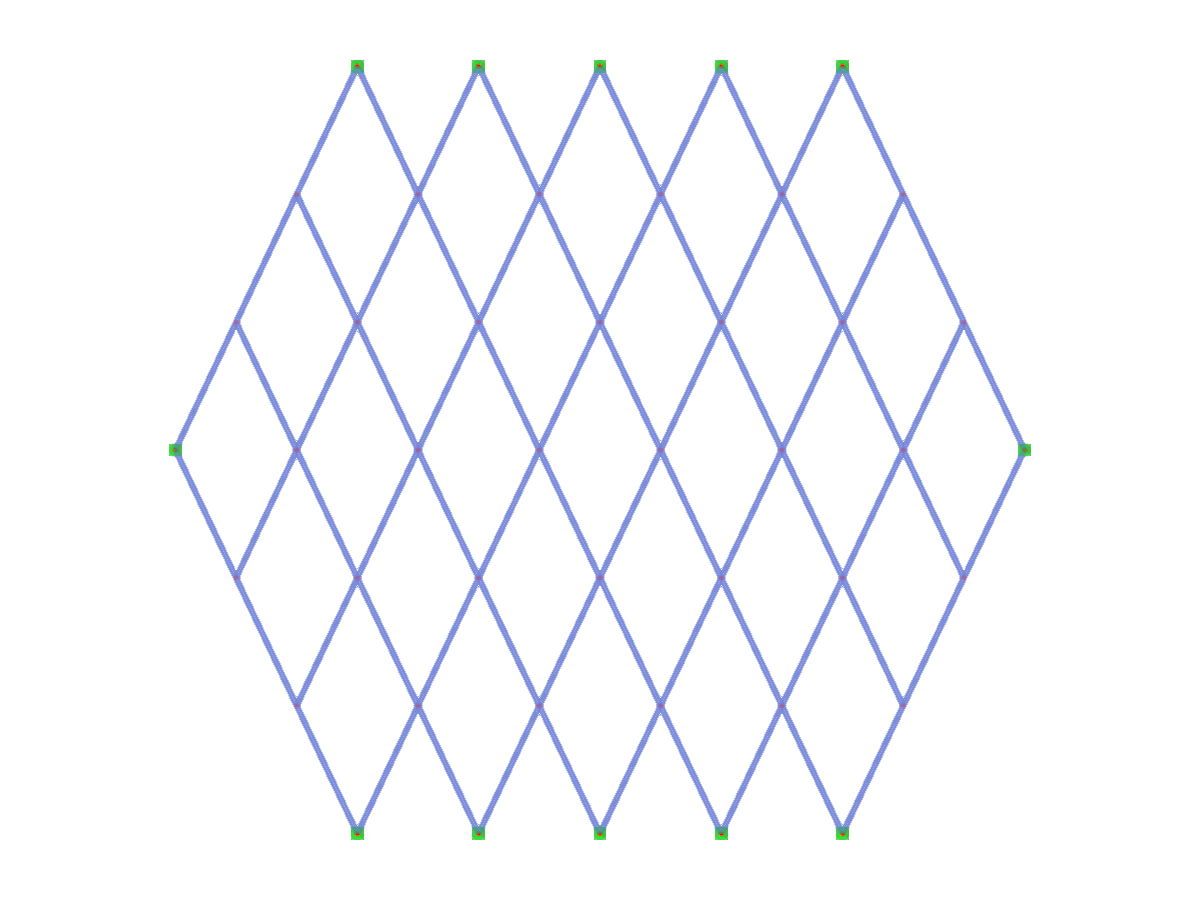

Model ID 3278 | BG021 | Beam Grillage
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 44 |
| Number of Lines | 72 |
| Number of Members | 72 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 10.643 tons |
| Dimensions (Metric) | 21,000 x 0,000 x 18,974 m |
| Dimensions (Imperial) | 68.9 x 0 x 62.25 feet |
