GLB0505 | Glued-Laminated Beam | Pitched Cambered | Constant Height | Symmetric | Offset-Tapered Cantilevers | Without Loose Ridge Wedge

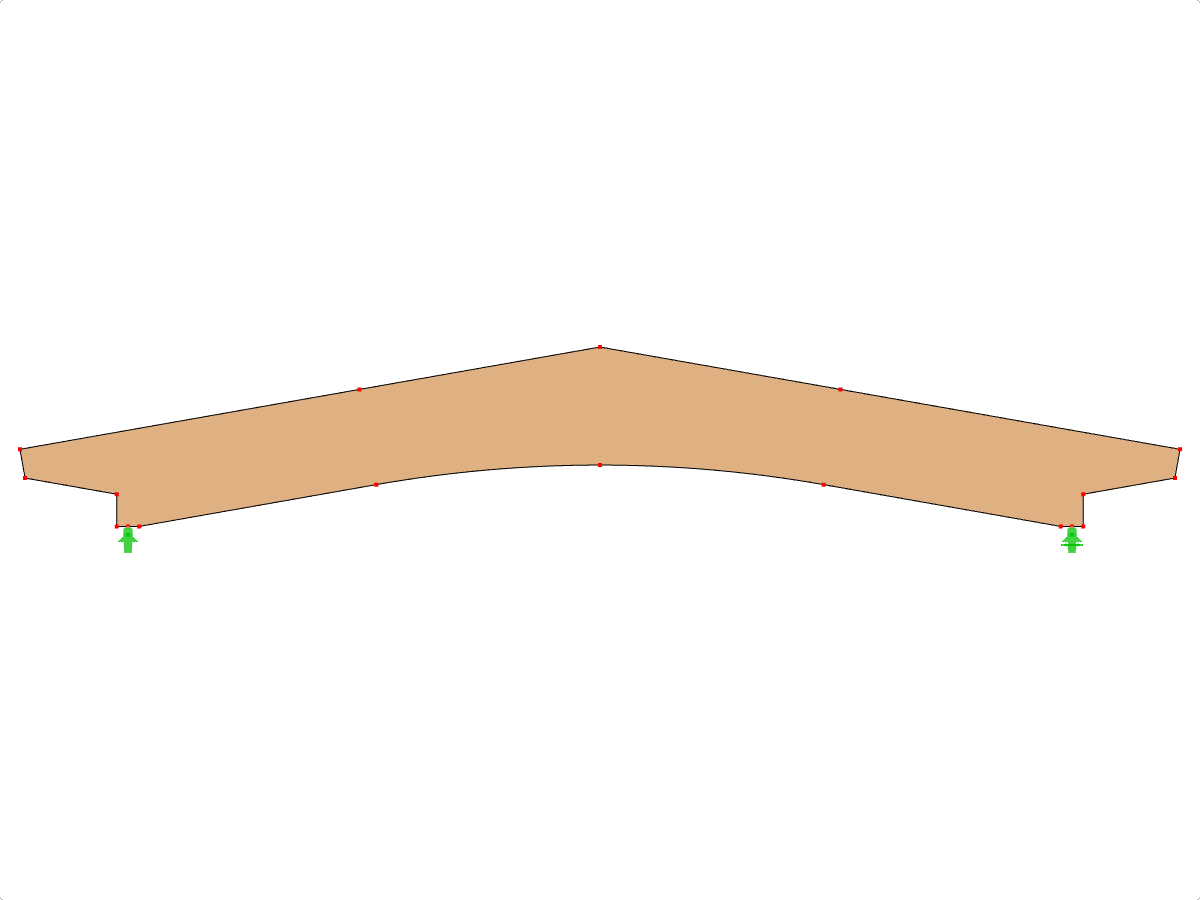

Model ID 592 | GLB0505 | Glued-Laminated Beam | Pitched Cambered | Constant Height | Symmetric | Offset-Tapered Cantilevers | Without Loose Ridge Wedge
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 18 |
| Number of Lines | 17 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.047 tons |
| Dimensions (Metric) | 18,000 x 2,784 x 0,000 m |
| Dimensions (Imperial) | 59.06 x 9.13 x 0 feet |
