034-FPL105 | Prismatic Folded Structure Systems. Surfaces with Counter-Running Folding. Center Fold Elevated over Edge Fold. Alternate Folding

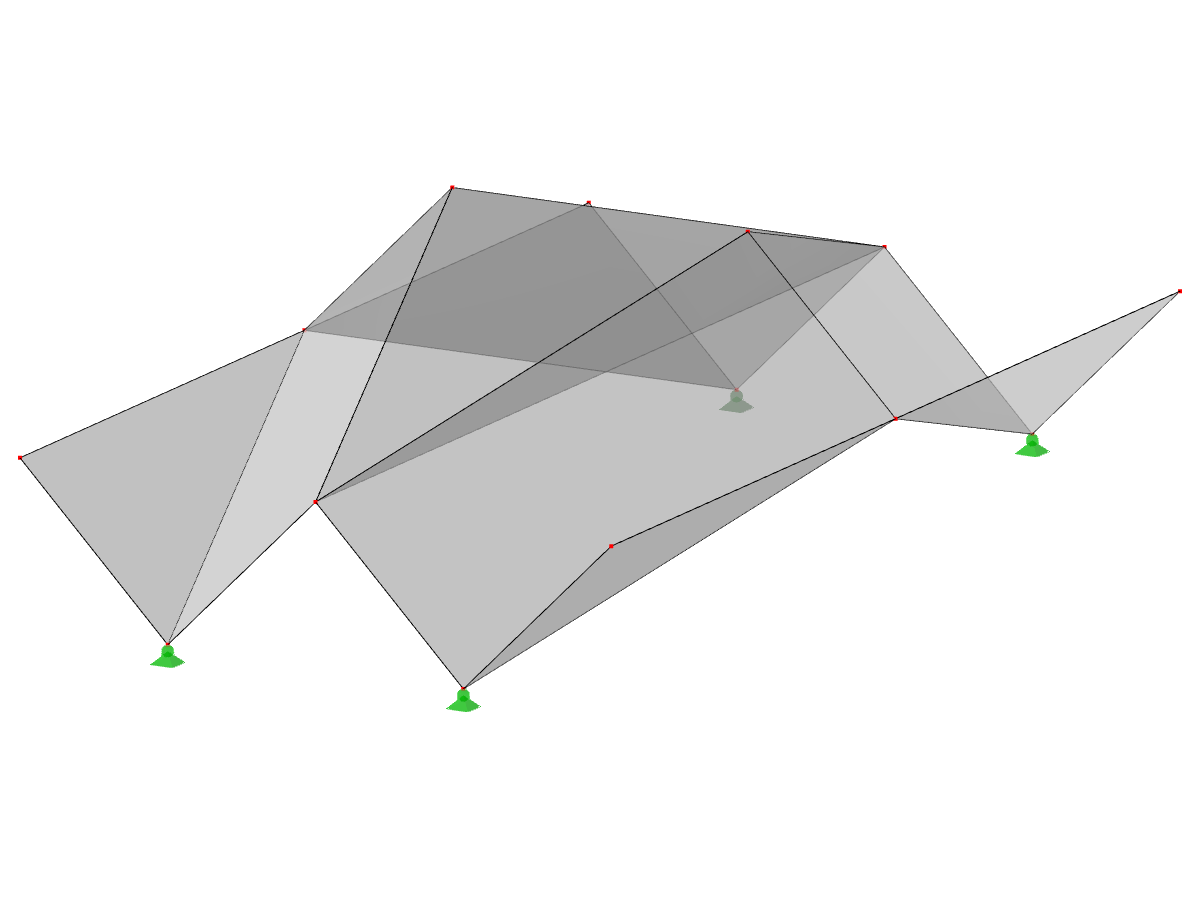

Model ID 526 | 034-FPL105 | Prismatic Folded Structure Systems. Surfaces with Counter-Running Folding. Center Fold Elevated over Edge Fold. Alternate Folding
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 14 |
| Number of Lines | 23 |
| Number of Members | 0 |
| Number of Surfaces | 10 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 242.653 tons |
| Dimensions (Metric) | 12,000 x 5,000 x 20,000 m |
| Dimensions (Imperial) | 39.37 x 16.4 x 65.62 feet |
