FT031 | Parallel Chorded Truss

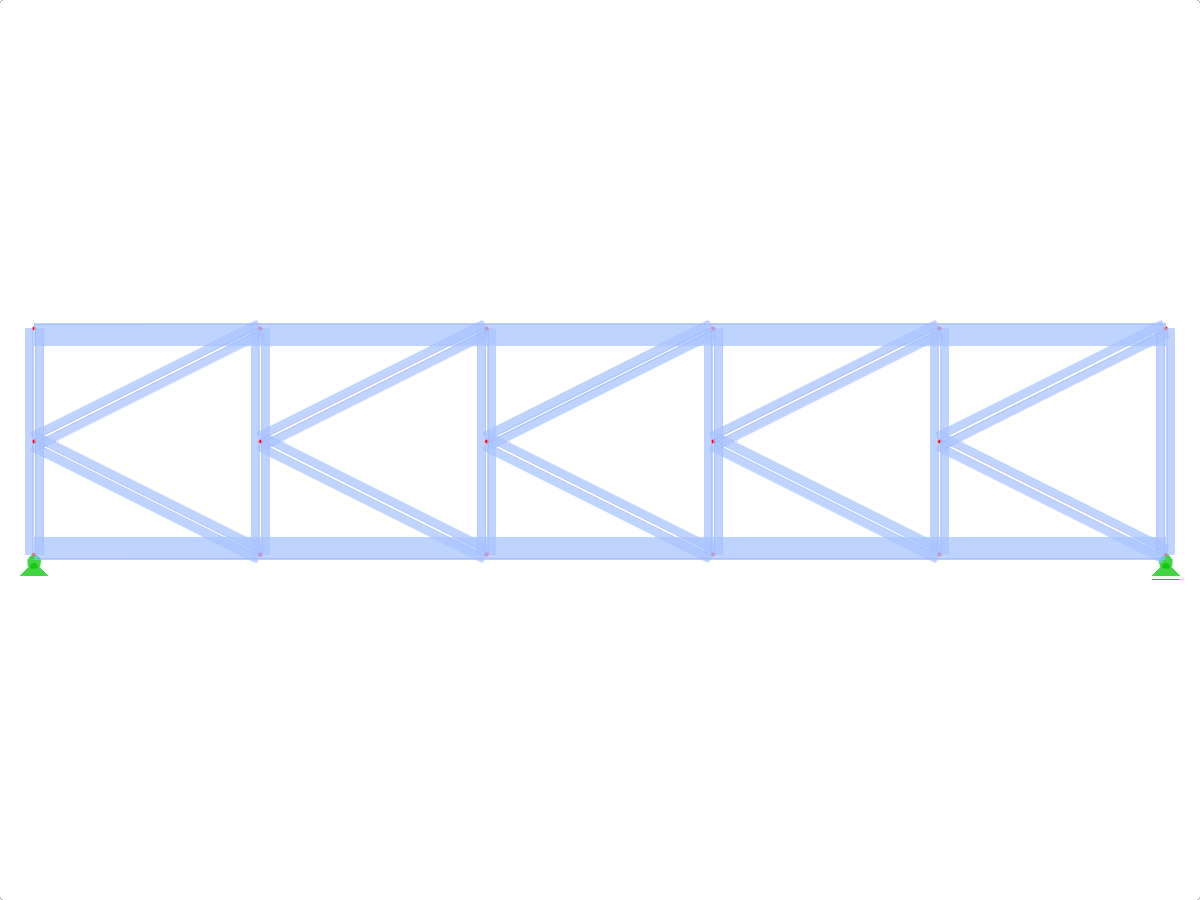

Model ID 467 | FT031 | Parallel Chorded Truss
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 17 |
| Number of Lines | 31 |
| Number of Members | 31 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.392 tons |
| Dimensions (Metric) | 10,000 x 2,000 x 0,000 m |
| Dimensions (Imperial) | 32.81 x 6.56 x 0 feet |
