2024-03-09
031652

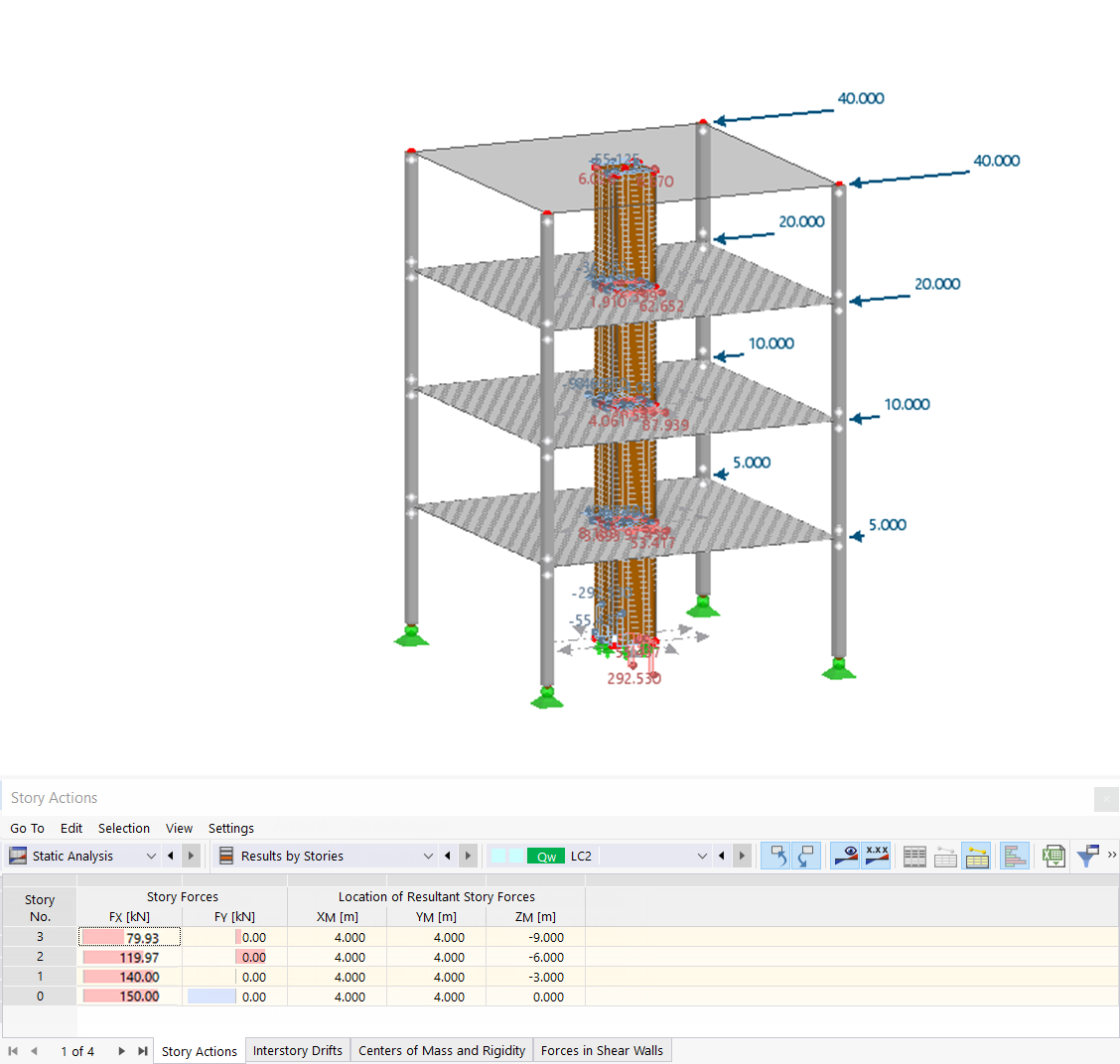

Result Table "Story Actions"
3D Model
Specifications
| Number of Nodes | 64 |
| Number of Lines | 84 |
| Number of Members | 16 |
| Number of Surfaces | 20 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 132.032 tons |
| Dimensions (Metric) | 8.000 x 12.000 x 8.000 m |
| Dimensions (Imperial) | 26.25 x 39.37 x 26.25 feet |
2024-03-09
031352
Symmetric Building Model
3D Model
Specifications
| Number of Nodes | 64 |
| Number of Lines | 84 |
| Number of Members | 16 |
| Number of Surfaces | 20 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 132.032 tons |
| Dimensions (Metric) | 8.000 x 12.000 x 8.000 m |
| Dimensions (Imperial) | 26.25 x 39.37 x 26.25 feet |
2024-03-09
031655

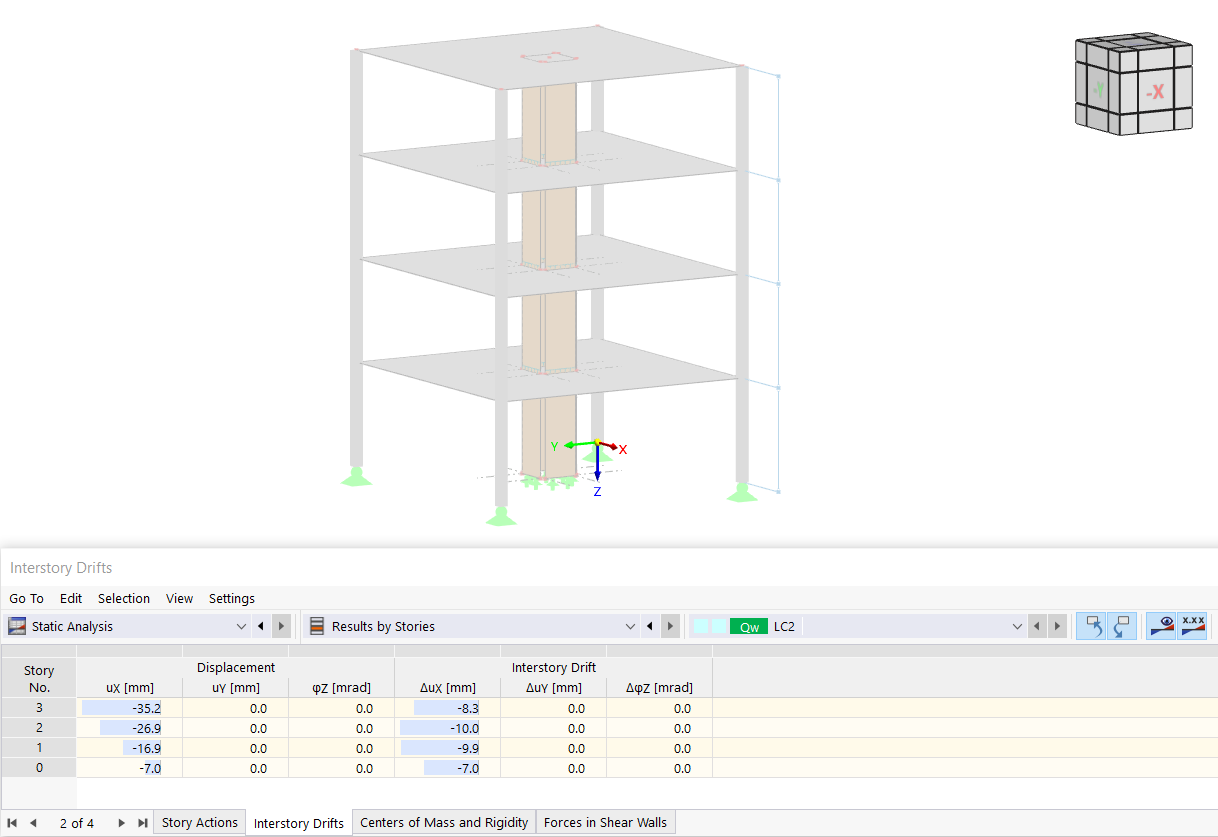

Result Table "Interstory Drifts"
3D Model
Specifications
| Number of Nodes | 64 |
| Number of Lines | 84 |
| Number of Members | 16 |
| Number of Surfaces | 20 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 132.032 tons |
| Dimensions (Metric) | 8.000 x 12.000 x 8.000 m |
| Dimensions (Imperial) | 26.25 x 39.37 x 26.25 feet |
