Existing Strains in Reinforcing Bars and Concrete Cross-Section Under Load

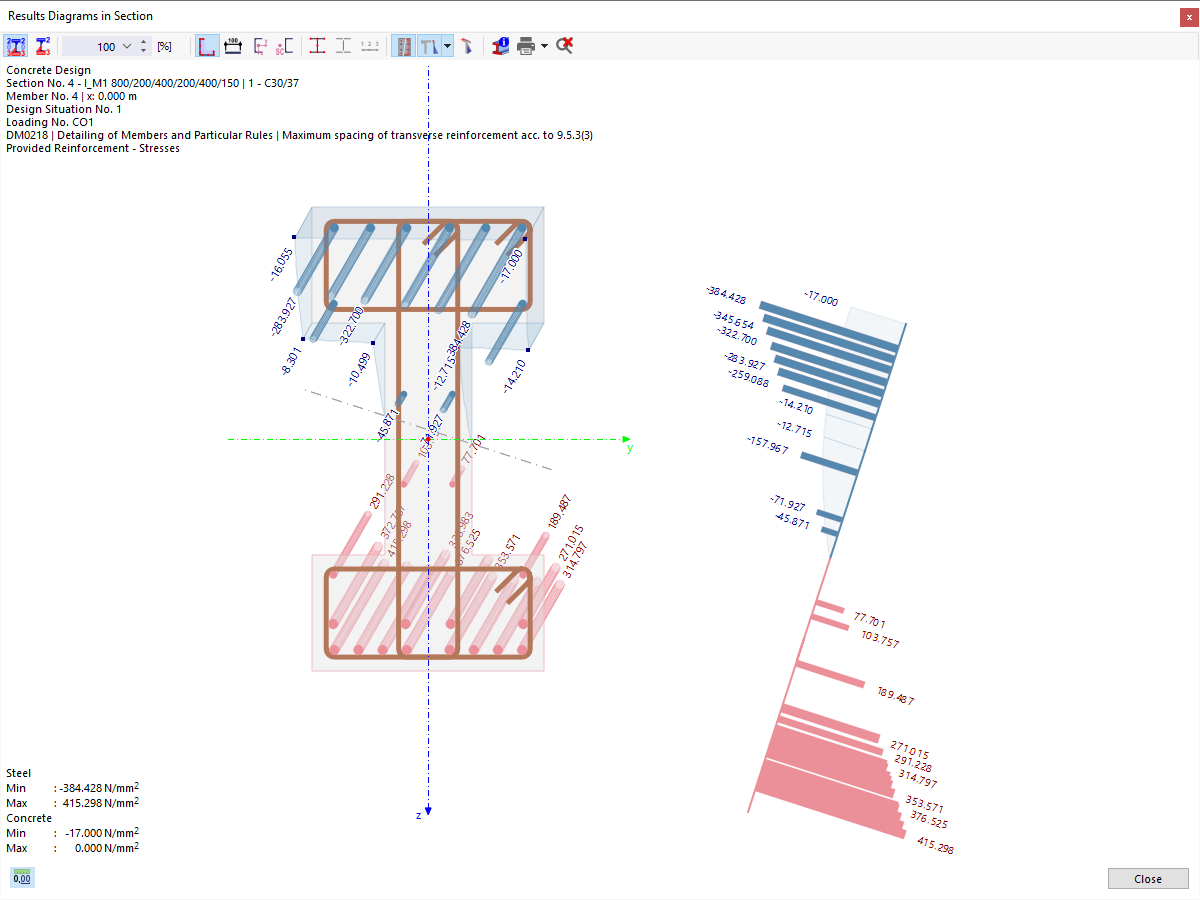

3D display of the cross-section stresses in concrete reinforcement under load.

The image shows the distribution of stresses and strains in the concrete cross-section and in the reinforcing bars under the influence of loads. Both a 3D stress view and a 2D display are offered to visually evaluate the results. The stress distribution in the reinforcing bars is an essential aspect to ensure the load-bearing capacity of the constructed structure. The graphical displays allow for a comprehensive analysis of the material stresses.

Analyze cross-section stresses
Reinforcing bar strains
Perform concrete design
Calculate graphical display
Check load application
