Printing Interaction Diagram into Printout Report

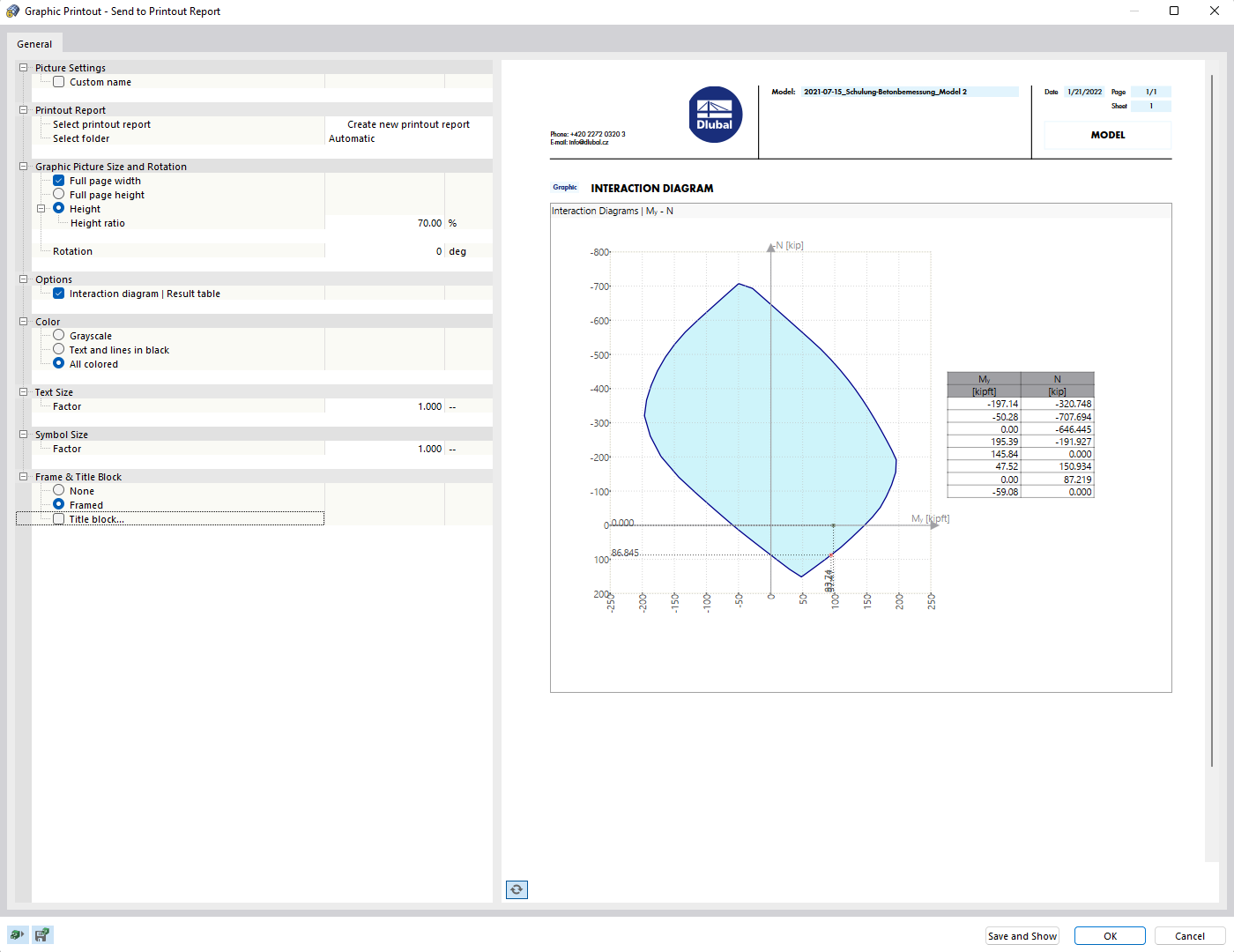

Interaction diagram from a building plan visualized in a printout report.

The image shows an interaction diagram embedded in a printout report. It illustrates the way in which static and dynamic calculations are presented in structural engineering. Such a diagram is crucial for visualizing load capacities and resistance in structural analysis. The application presented in the video shows how to comprehensively document and analyze complex structures.
