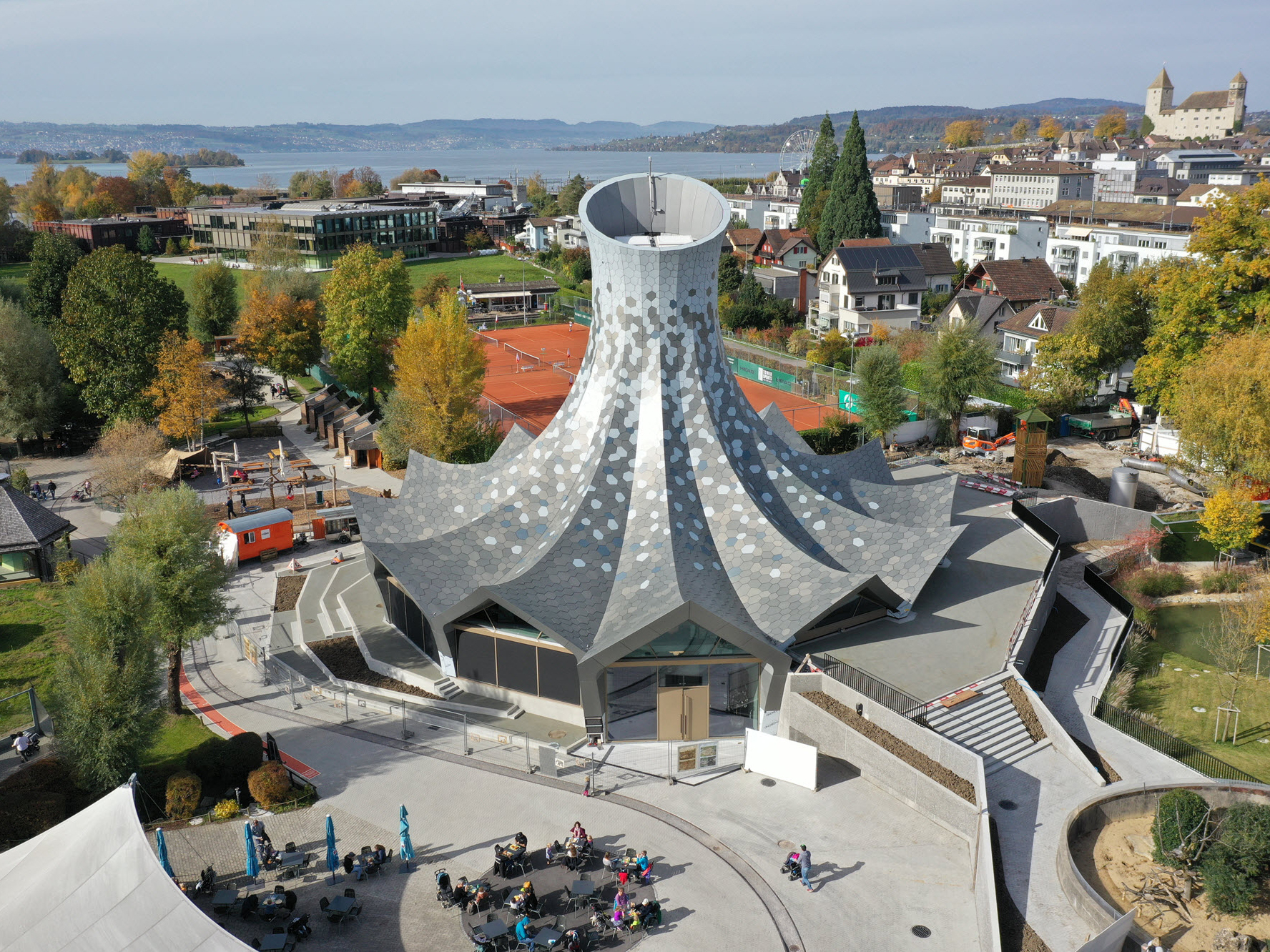

Knie's Magic Hat in Rapperswil, Switzerland (© Ghisleni Partner AG)
2024-05-30
026938
Roof Structure Model in RSTAB (© PIRMIN JUNG)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 660 |
| Number of Members | 1884 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 6 |
| Total Weight | 93.988 tons |
| Dimensions (Metric) | 35.120 x 35.120 x 21.470 m |
| Dimensions (Imperial) | 115.22 x 115.22 x 70.44 feet |
| Program Version | 8.26.02 |
2024-05-30
026939
RSTAB Model Top View (© PIRMIN JUNG)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 660 |
| Number of Members | 1884 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 6 |
| Total Weight | 93.988 tons |
| Dimensions (Metric) | 35.120 x 35.120 x 21.470 m |
| Dimensions (Imperial) | 115.22 x 115.22 x 70.44 feet |
| Program Version | 8.26.02 |
2024-05-30
026940
Wind Load Deformations in RSTAB (© PIRMIN JUNG)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 660 |
| Number of Members | 1884 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 6 |
| Total Weight | 93.988 tons |
| Dimensions (Metric) | 35.120 x 35.120 x 21.470 m |
| Dimensions (Imperial) | 115.22 x 115.22 x 70.44 feet |
| Program Version | 8.26.02 |
2024-05-30
026941
Axial Forces in RSTAB (© PIRMIN JUNG)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 660 |
| Number of Members | 1884 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 6 |
| Total Weight | 93.988 tons |
| Dimensions (Metric) | 35.120 x 35.120 x 21.470 m |
| Dimensions (Imperial) | 115.22 x 115.22 x 70.44 feet |
| Program Version | 8.26.02 |
