2024-05-30
022110

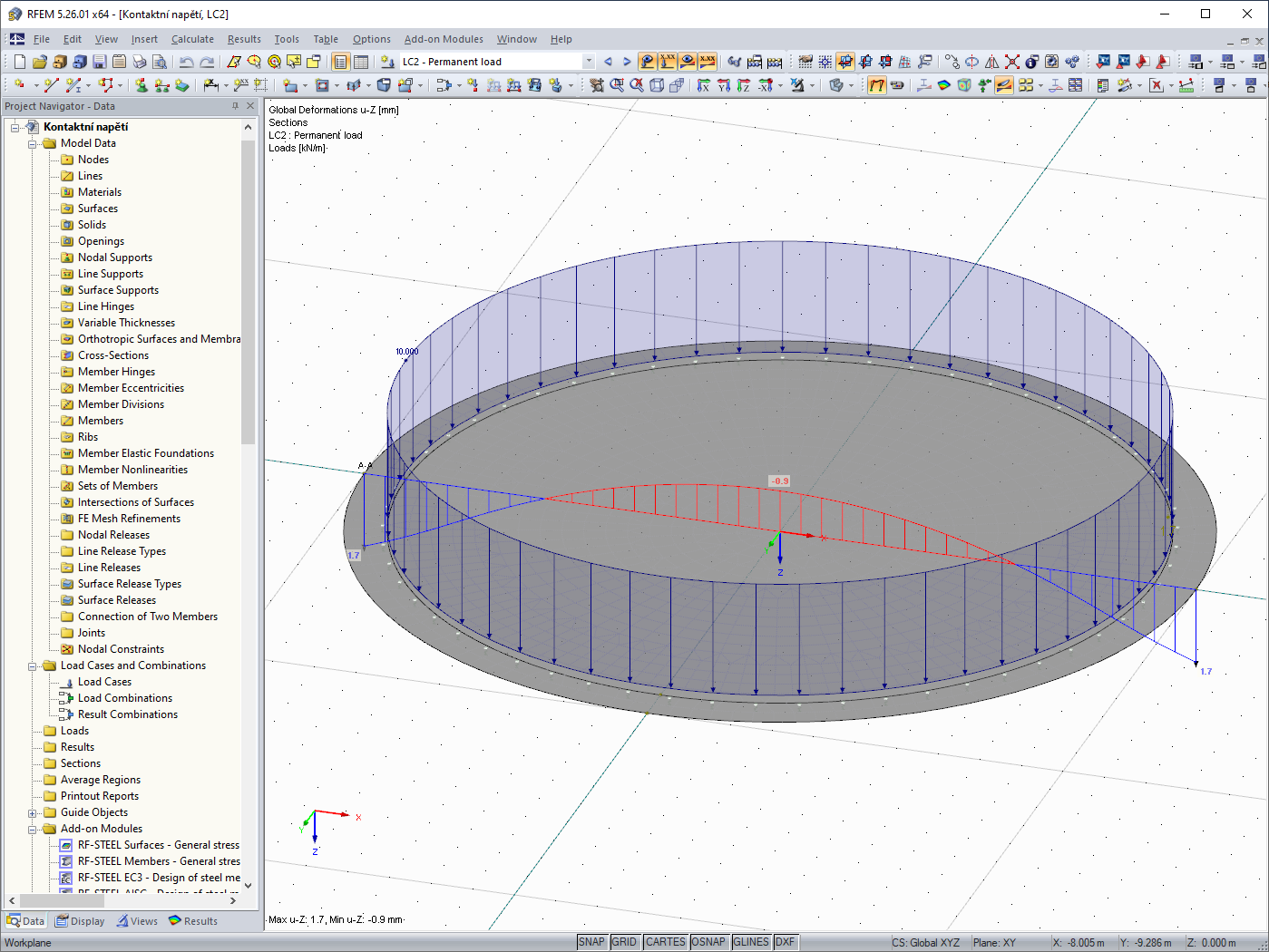

This LC only contains the load along the perimeter. Therefore, the slab is lifted in the middle.
FAQ 005030 | When solving a foundation slab under a circular tank, I do not see the contact stress in the middle of the surface. Why?
Used in
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 2 |
| Number of Surfaces | 1 |
| Number of Load Cases | 3 |
| Total Weight | 196.271 tons |
| Dimensions (Metric) | 20.000 x 20.000 x 0.000 m |
| Dimensions (Imperial) | 65.62 x 65.62 x 0 feet |
| Program Version | 5.26.01 |
