Suspended Glass Staircase, Load Simulation, and Resulting Deformation
Suspended Glass Staircase
3D Model
Specifications
| Number of Nodes | 746 |
| Number of Lines | 628 |
| Number of Members | 399 |
| Number of Surfaces | 154 |
| Number of Solids | 0 |
| Number of Load Cases | 14 |
| Number of Load Combinations | 21 |
| Number of Result Combinations | 2 |
| Total Weight | 4.060 tons |
| Dimensions (Metric) | 4,506 x 6,541 x 7,509 m |
| Dimensions (Imperial) | 14.78 x 21.46 x 24.64 feet |
2024-05-30
021103

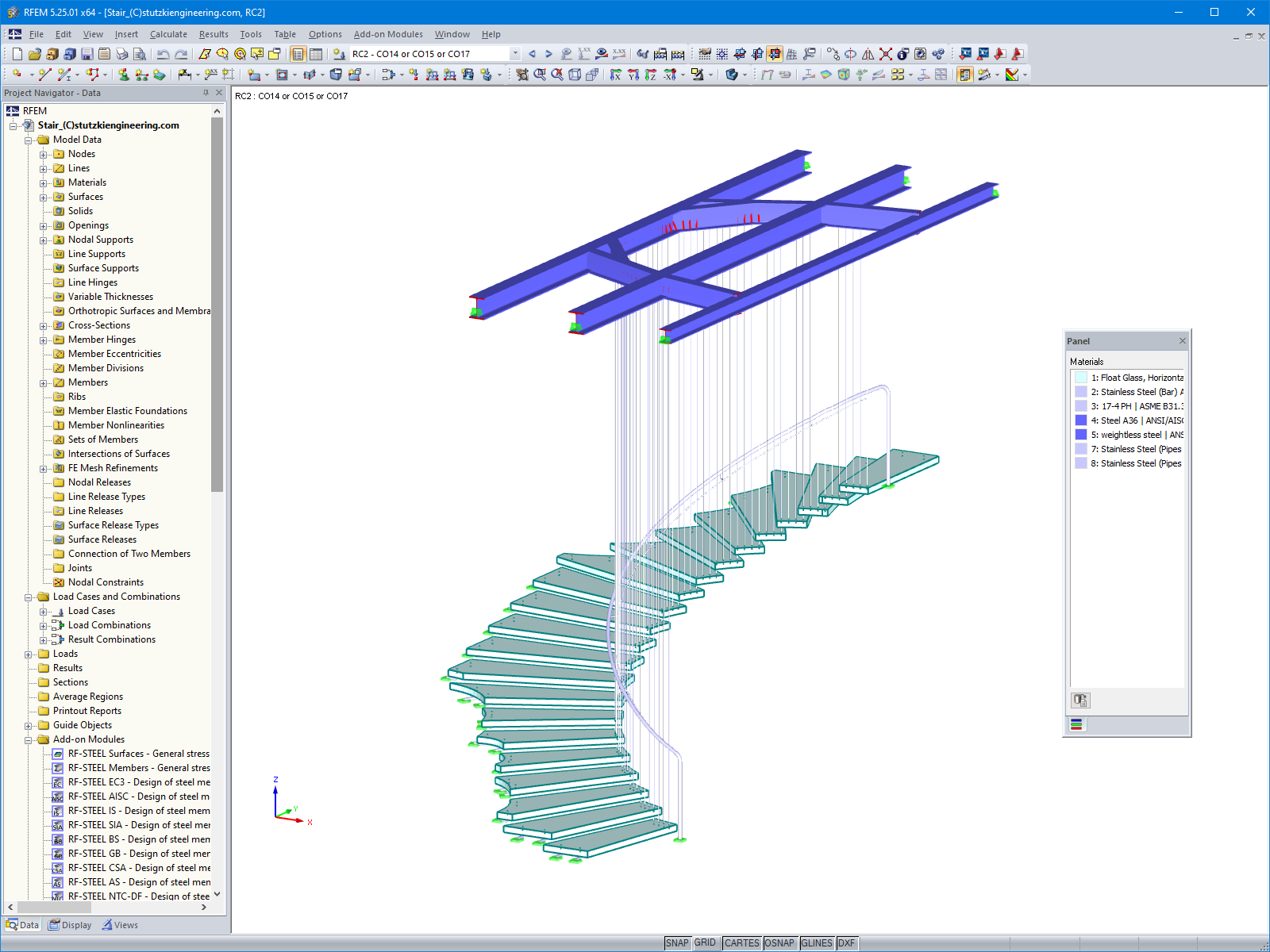

Suspended Glass Staircase, 3D RFEM Model (© Stutzki Engineering)
3D Model
Specifications
| Number of Nodes | 746 |
| Number of Lines | 628 |
| Number of Members | 399 |
| Number of Surfaces | 154 |
| Number of Solids | 0 |
| Number of Load Cases | 14 |
| Number of Load Combinations | 21 |
| Number of Result Combinations | 2 |
| Total Weight | 4.060 tons |
| Dimensions (Metric) | 4,506 x 6,541 x 7,509 m |
| Dimensions (Imperial) | 14.78 x 21.46 x 24.64 feet |
2024-03-09
021104

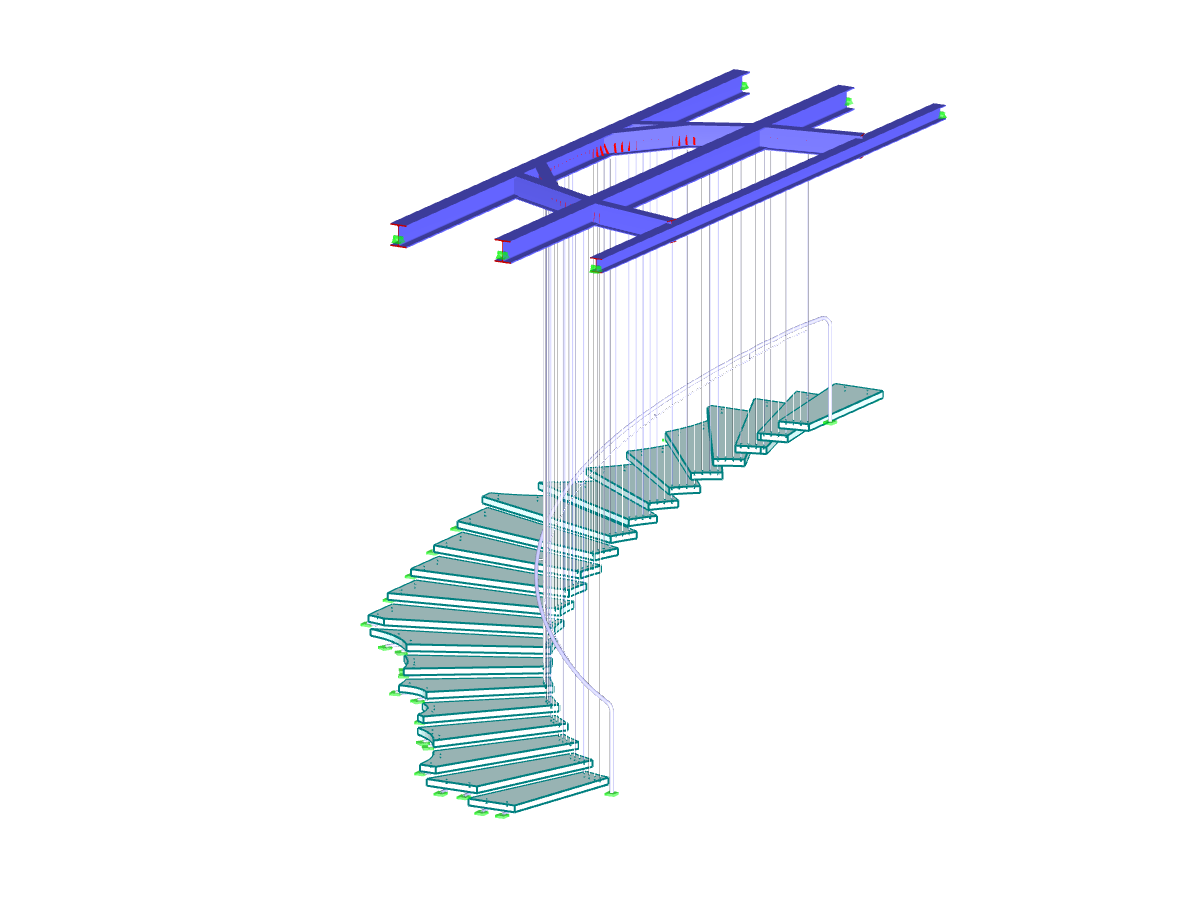

3D Model of Suspended Glass Staircase in RFEM (© Stutzki Engineering)
