2024-05-30
020528
Semi-Rigid Composite Beam as Framework Model
3D Model
Specifications
| Number of Nodes | 77 |
| Number of Lines | 108 |
| Number of Members | 108 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.030 tons |
| Dimensions (Metric) | 4.000 x 0.100 x 0.000 m |
| Dimensions (Imperial) | 13.12 x 0.33 x 0 feet |
2024-05-30
010276

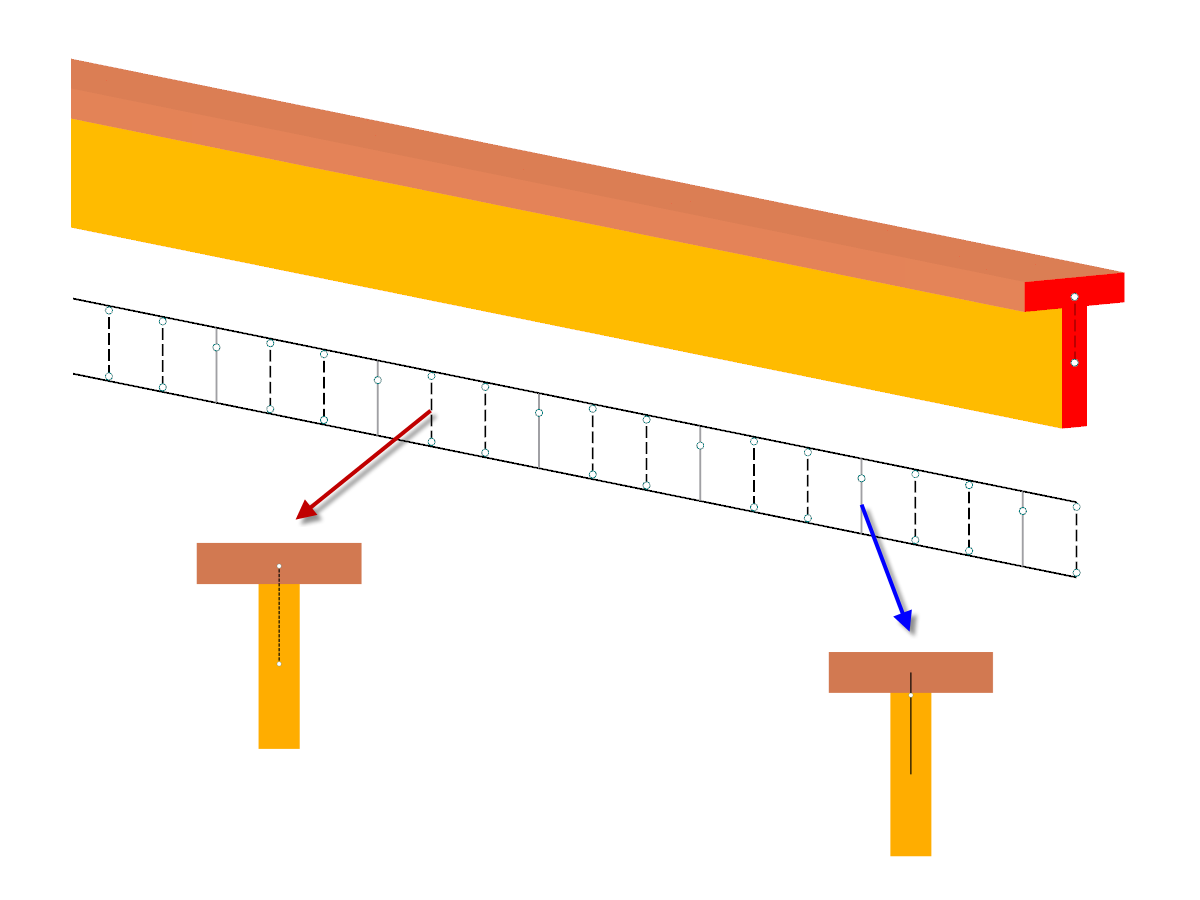

Structural System of Composite Beam
3D Model
Specifications
| Number of Nodes | 77 |
| Number of Lines | 108 |
| Number of Members | 108 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.030 tons |
| Dimensions (Metric) | 4.000 x 0.100 x 0.000 m |
| Dimensions (Imperial) | 13.12 x 0.33 x 0 feet |
2024-05-30
020527

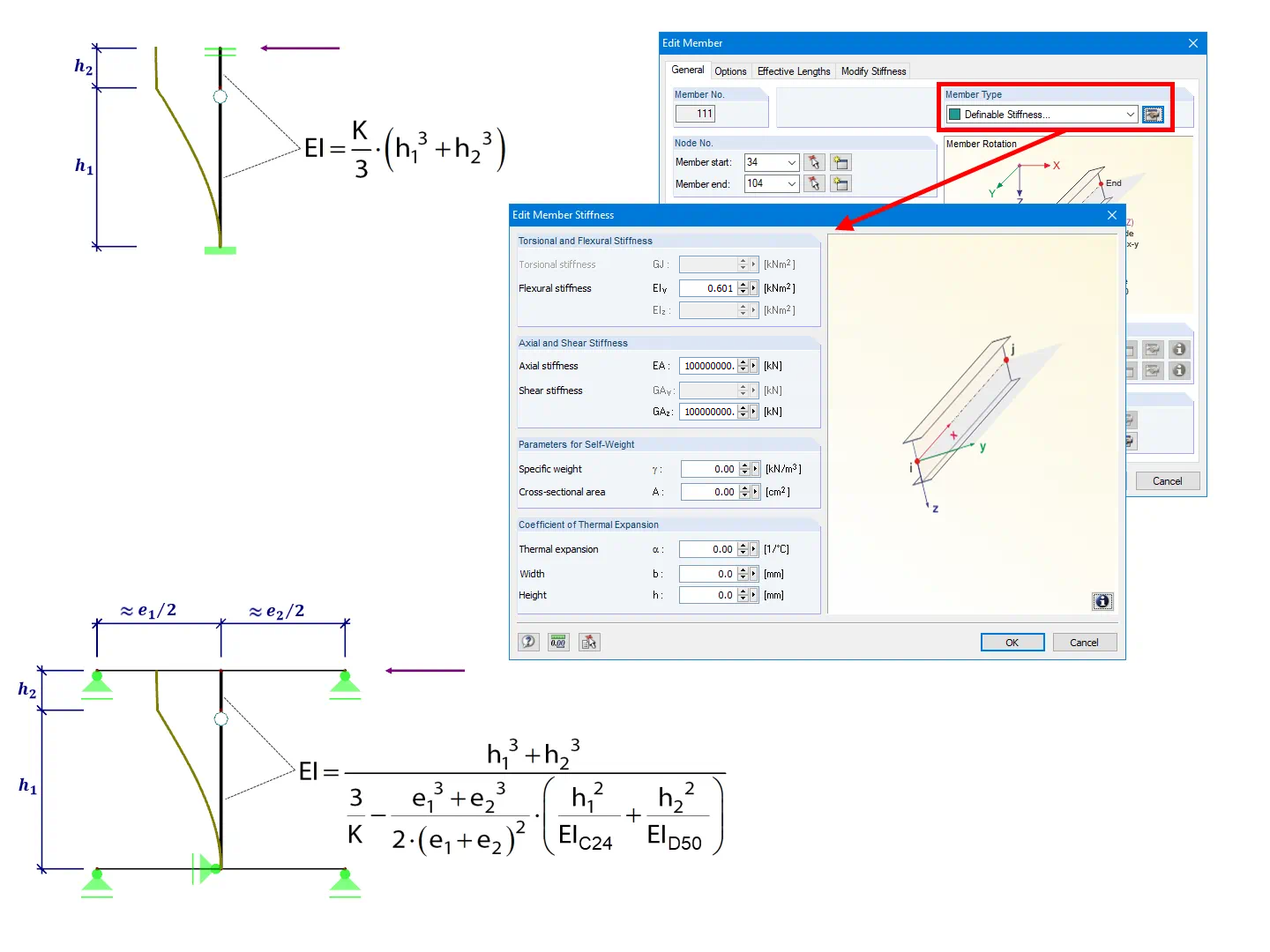

Determining Bending Stiffness
