2024-05-30
019922

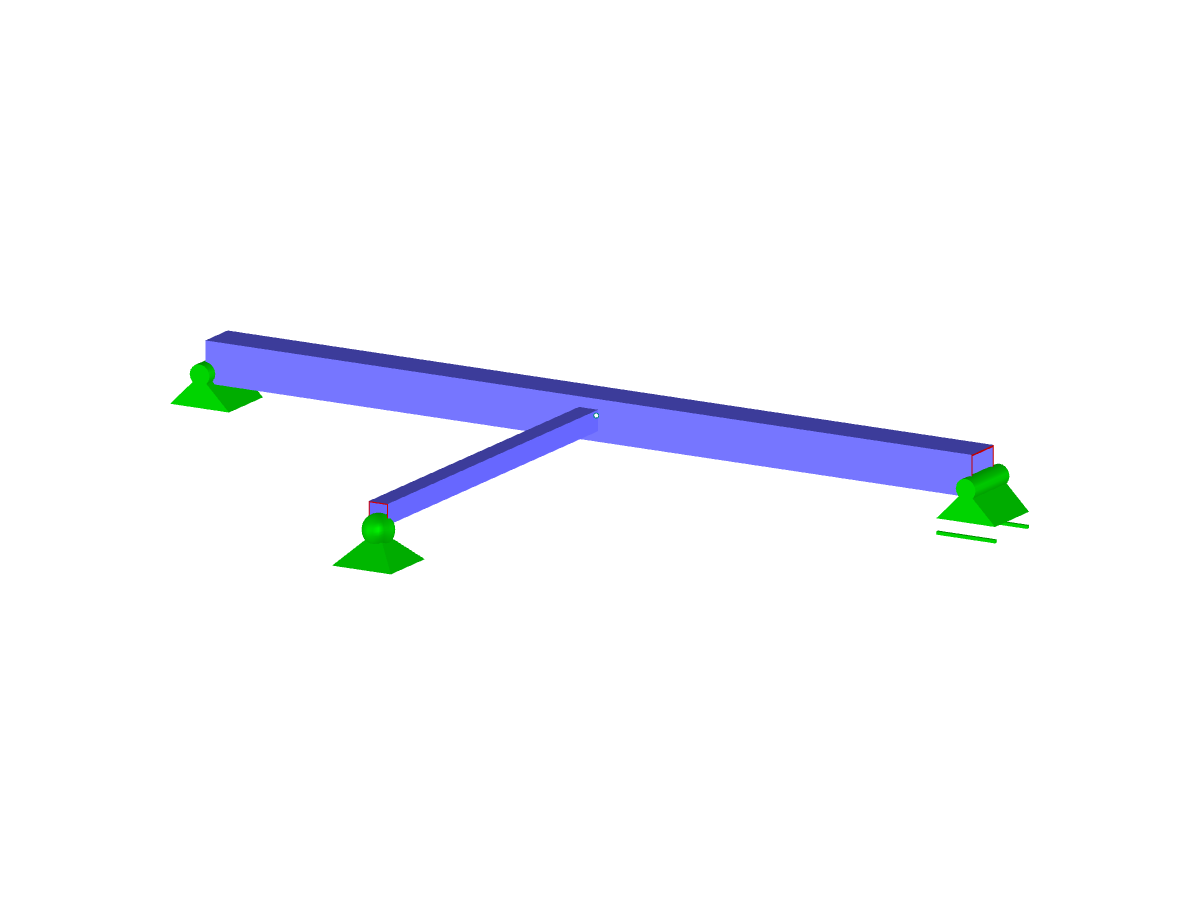

Steel Beam
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 3 |
| Total Weight | 0.028 tons |
| Dimensions (Metric) | 2.154 x 1.154 x 0.154 m |
| Dimensions (Imperial) | 7.07 x 3.79 x 0.51 feet |
| Program Version | 5.23.02 |
Using Member Hinges with Clearance
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 3 |
| Total Weight | 0.028 tons |
| Dimensions (Metric) | 2.154 x 1.154 x 0.154 m |
| Dimensions (Imperial) | 7.07 x 3.79 x 0.51 feet |
| Program Version | 5.23.02 |
