The new visitors' center is located in Yangxin, in the Province of Shandong, China.
Visitors' Center in Yangxin, China
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes | 82 |
Number of Lines | 130 |
Number of Members | 70 |
Number of Surfaces | 5 |
Number of Load Cases | 7 |
Number of Load Combinations | 8 |
Number of Result Combinations | 1 |
Total Weight | 7.454 tons |
Dimensions (Metric) | 17.200 x 16.368 x 9.260 m |
Dimensions (Imperial) | 56.43 x 53.7 x 30.38 feet |
Program Version | 5.25.01 |
2024-05-30
015804

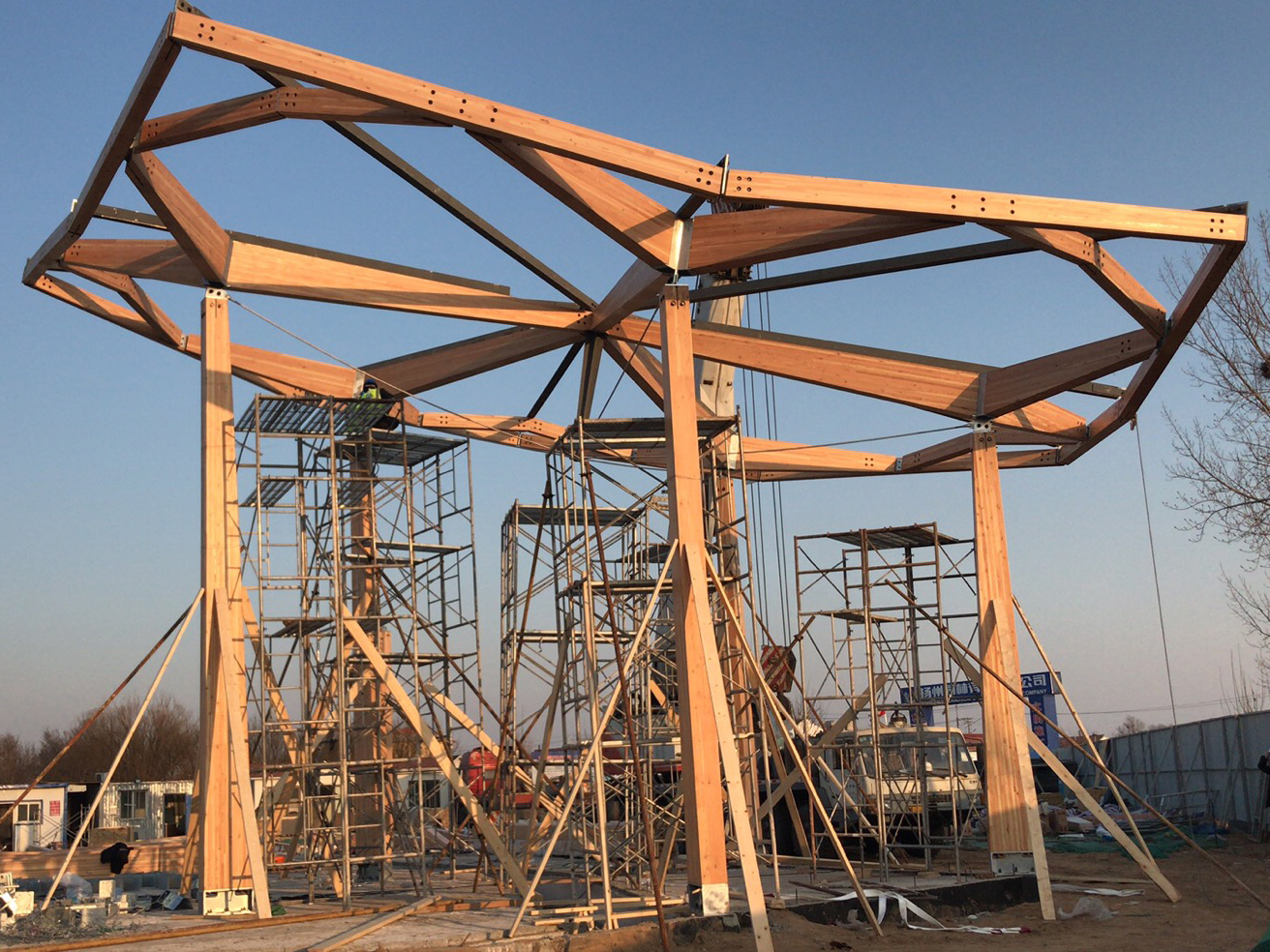

Individual Blossom Structure During Construction (© Jing Kong & Associates Consulting Structural Engineers Inc.)
2024-05-30
015805
Rendering of Visitors' Center Interior (© Jing Kong & Associates Consulting Structural Engineers Inc.)
2024-05-30
015801

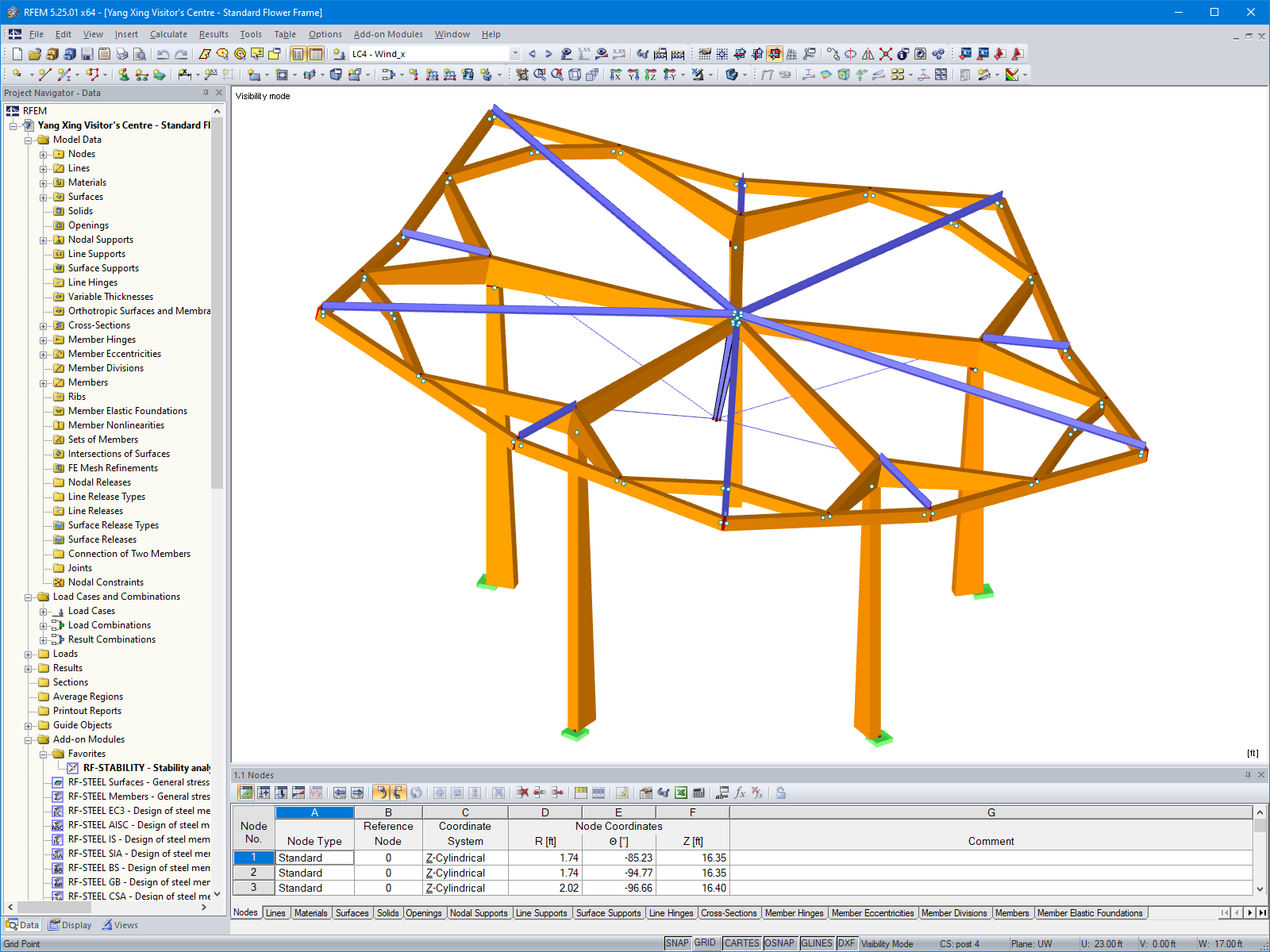

3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes | 82 |
Number of Lines | 130 |
Number of Members | 70 |
Number of Surfaces | 5 |
Number of Load Cases | 7 |
Number of Load Combinations | 8 |
Number of Result Combinations | 1 |
Total Weight | 7.454 tons |
Dimensions (Metric) | 17.200 x 16.368 x 9.260 m |
Dimensions (Imperial) | 56.43 x 53.7 x 30.38 feet |
Program Version | 5.25.01 |
2024-05-30
015802

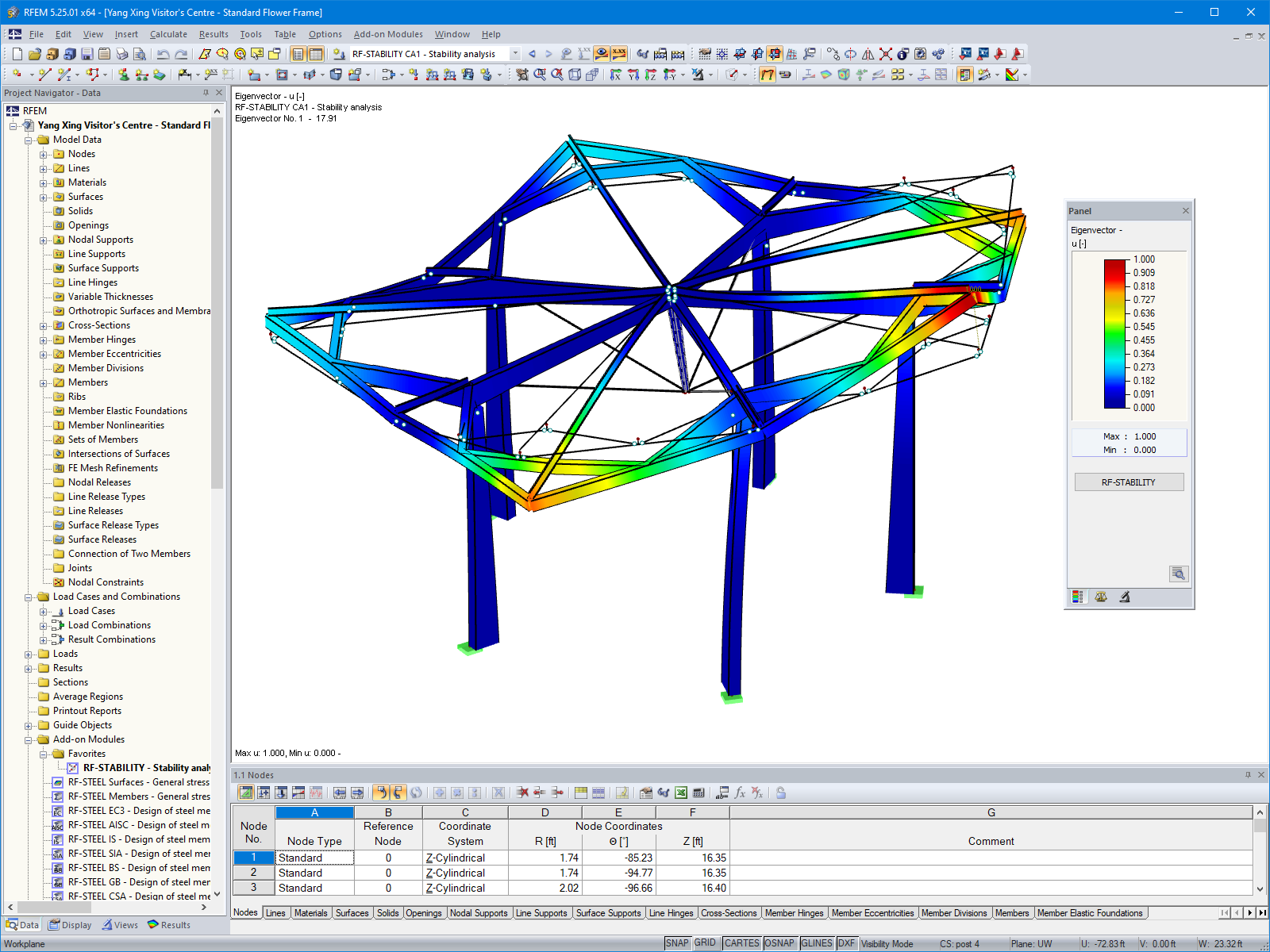

1st Mode Shape Calculated in RF-STABILITY (© Jing Kong & Associates Consulting Structural Engineers Inc.)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes | 82 |
Number of Lines | 130 |
Number of Members | 70 |
Number of Surfaces | 5 |
Number of Load Cases | 7 |
Number of Load Combinations | 8 |
Number of Result Combinations | 1 |
Total Weight | 7.454 tons |
Dimensions (Metric) | 17.200 x 16.368 x 9.260 m |
Dimensions (Imperial) | 56.43 x 53.7 x 30.38 feet |
Program Version | 5.25.01 |
2024-05-30
015997

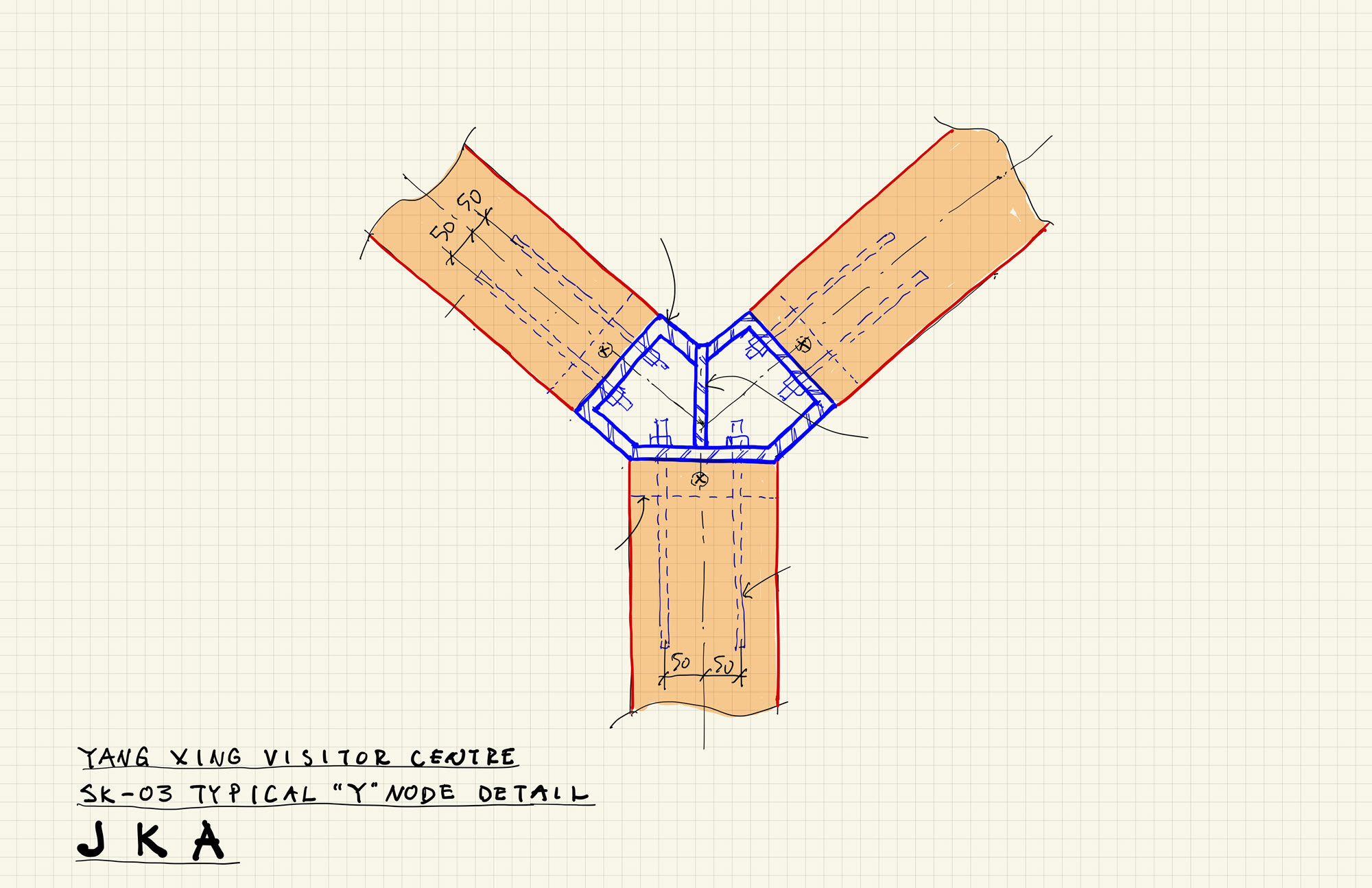

Hand-Drawn Sketch of Y-Shaped Connection (© Jing Kong & Associates Consulting Structural Engineers Inc.)
2024-05-30
015891
The new visitors' center is located in Yangxin, in the Province of Shandong, China.
Visitors' Center in Yangxin, China
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes | 82 |
Number of Lines | 130 |
Number of Members | 70 |
Number of Surfaces | 5 |
Number of Load Cases | 7 |
Number of Load Combinations | 8 |
Number of Result Combinations | 1 |
Total Weight | 7.454 tons |
Dimensions (Metric) | 17.200 x 16.368 x 9.260 m |
Dimensions (Imperial) | 56.43 x 53.7 x 30.38 feet |
Program Version | 5.25.01 |
2024-05-30
015800

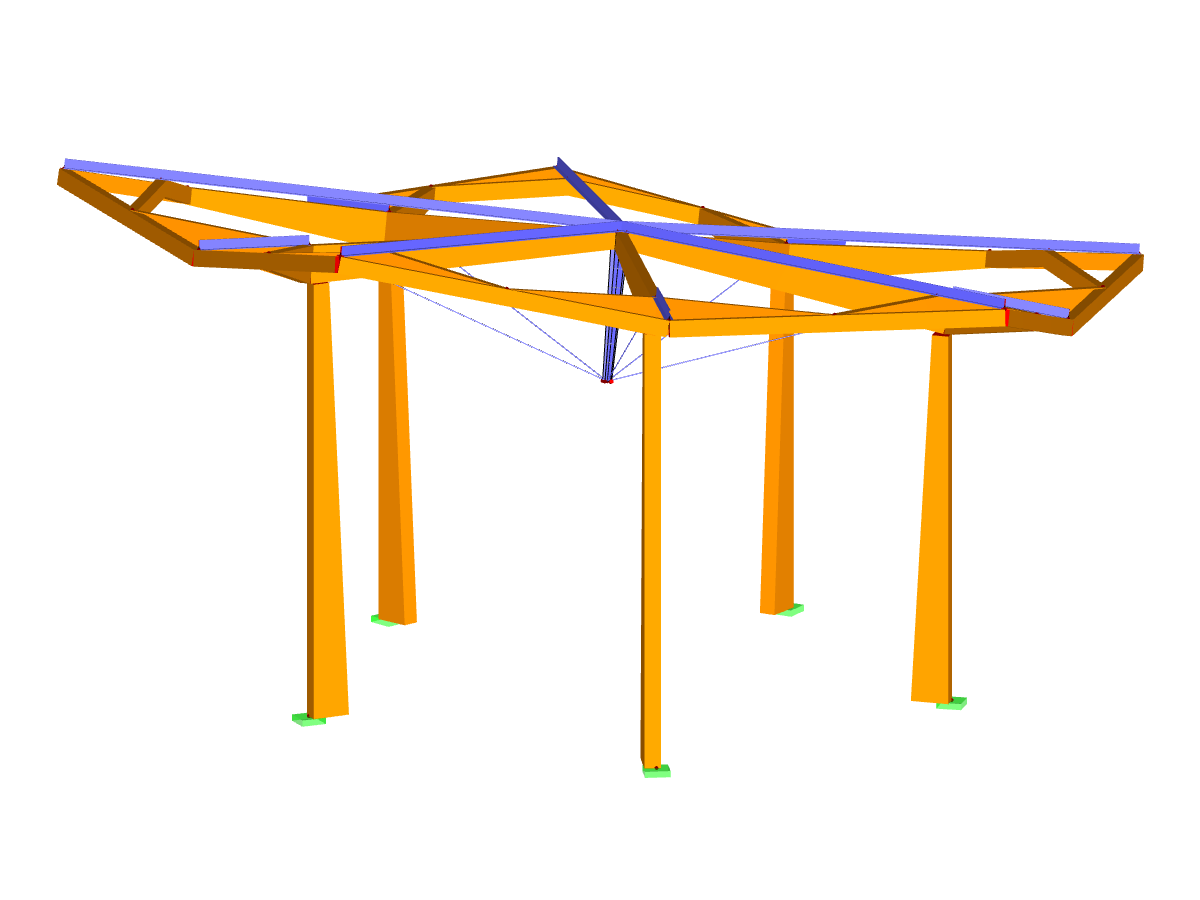

3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes | 82 |
Number of Lines | 130 |
Number of Members | 70 |
Number of Surfaces | 5 |
Number of Load Cases | 7 |
Number of Load Combinations | 8 |
Number of Result Combinations | 1 |
Total Weight | 7.454 tons |
Dimensions (Metric) | 17.200 x 16.368 x 9.260 m |
Dimensions (Imperial) | 56.43 x 53.7 x 30.38 feet |
Program Version | 5.25.01 |
2024-05-30
015818

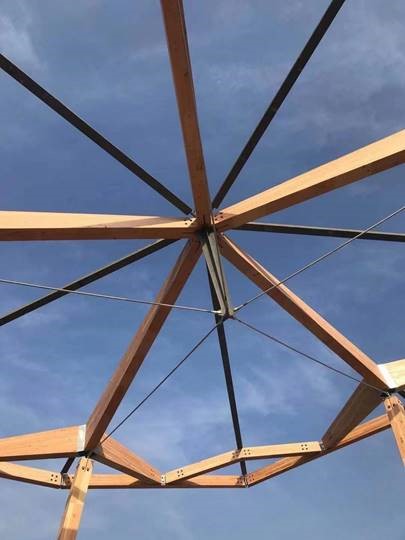

Installation of Roof Ridge Node (© Jing Kong & Associates Consulting Structural Engineers Inc.)
2024-05-30
015803
3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes | 82 |
Number of Lines | 130 |
Number of Members | 70 |
Number of Surfaces | 5 |
Number of Load Cases | 7 |
Number of Load Combinations | 8 |
Number of Result Combinations | 1 |
Total Weight | 7.454 tons |
Dimensions (Metric) | 17.200 x 16.368 x 9.260 m |
Dimensions (Imperial) | 56.43 x 53.7 x 30.38 feet |
Program Version | 5.25.01 |
