2024-05-30
015220
Concrete Flange with Opening
3D Model
Specifications
| Number of Nodes | 8 |
| Number of Lines | 8 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 16.000 tons |
| Dimensions (Metric) | 6.000 x 0.000 x 6.000 m |
| Dimensions (Imperial) | 19.69 x 0 x 19.69 feet |
2024-05-30
010540

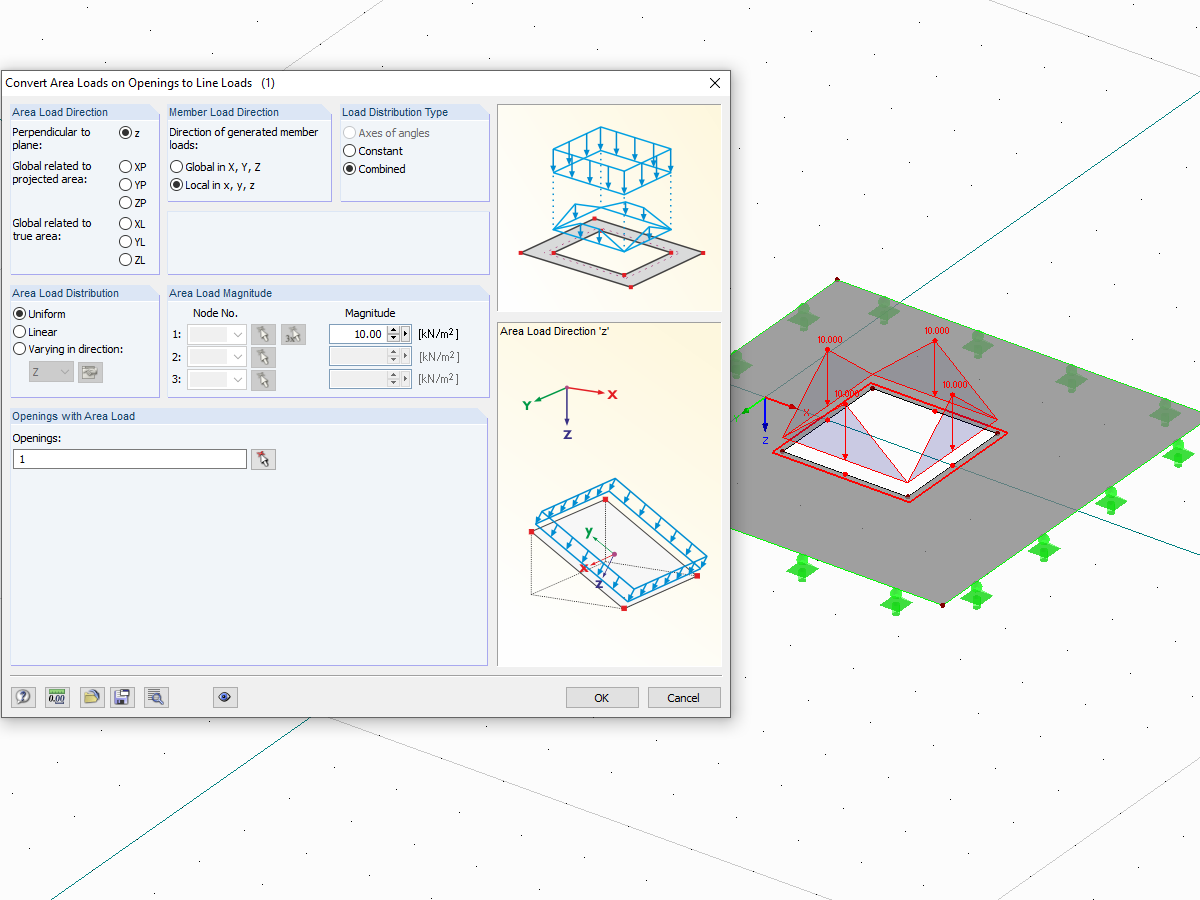

Generating Loading on Openings from Surface Load
3D Model
Specifications
| Number of Nodes | 8 |
| Number of Lines | 8 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 16.000 tons |
| Dimensions (Metric) | 6.000 x 0.000 x 6.000 m |
| Dimensions (Imperial) | 19.69 x 0 x 19.69 feet |
