2024-05-30
015196
Truss Girder
3D Model
Specifications
| Number of Nodes | 14 |
| Number of Lines | 22 |
| Number of Members | 22 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.417 tons |
| Dimensions (Metric) | 15.000 x 2.000 x 0.000 m |
| Dimensions (Imperial) | 49.21 x 6.56 x 0 feet |
2024-05-30
010482

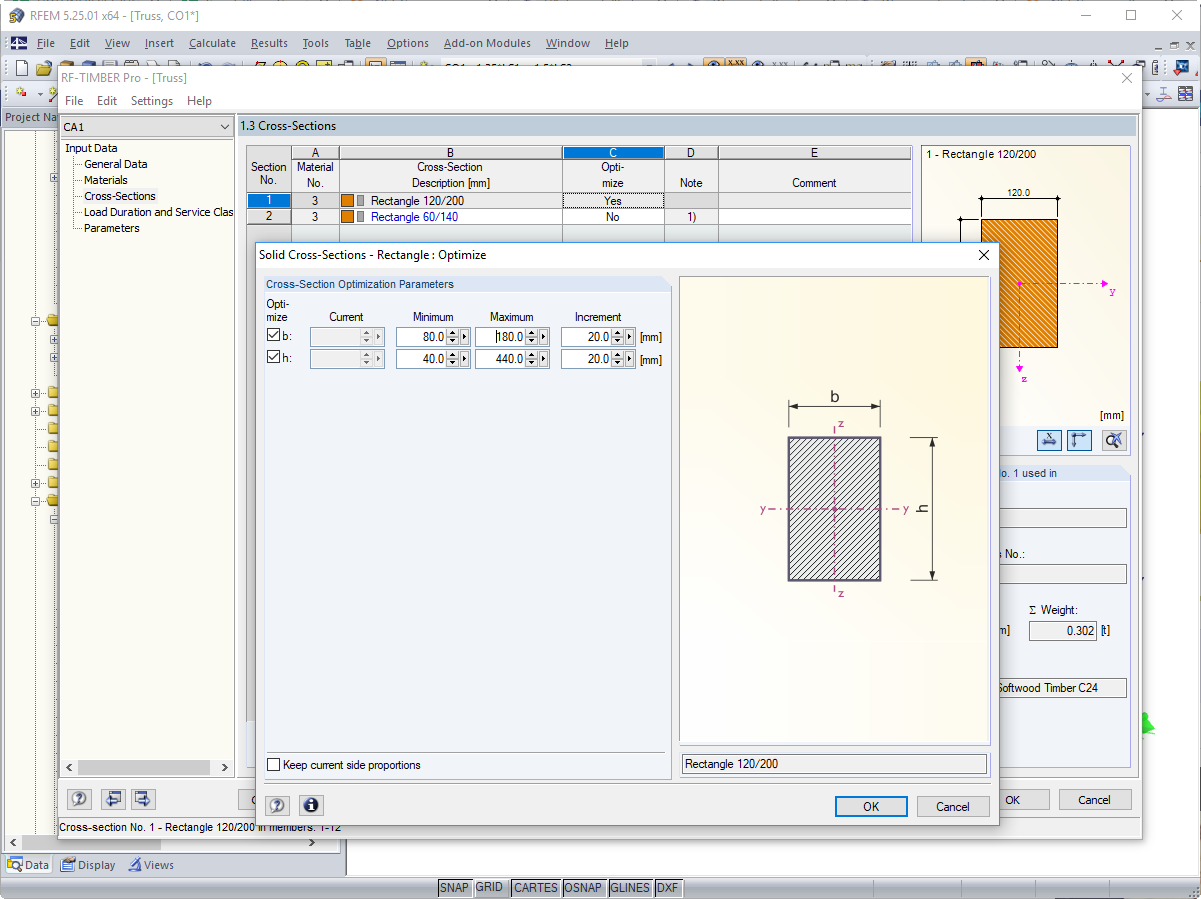

Optimizing Cross-Sections
3D Model
Specifications
| Number of Nodes | 14 |
| Number of Lines | 22 |
| Number of Members | 22 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.417 tons |
| Dimensions (Metric) | 15.000 x 2.000 x 0.000 m |
| Dimensions (Imperial) | 49.21 x 6.56 x 0 feet |
