2024-05-30
015110

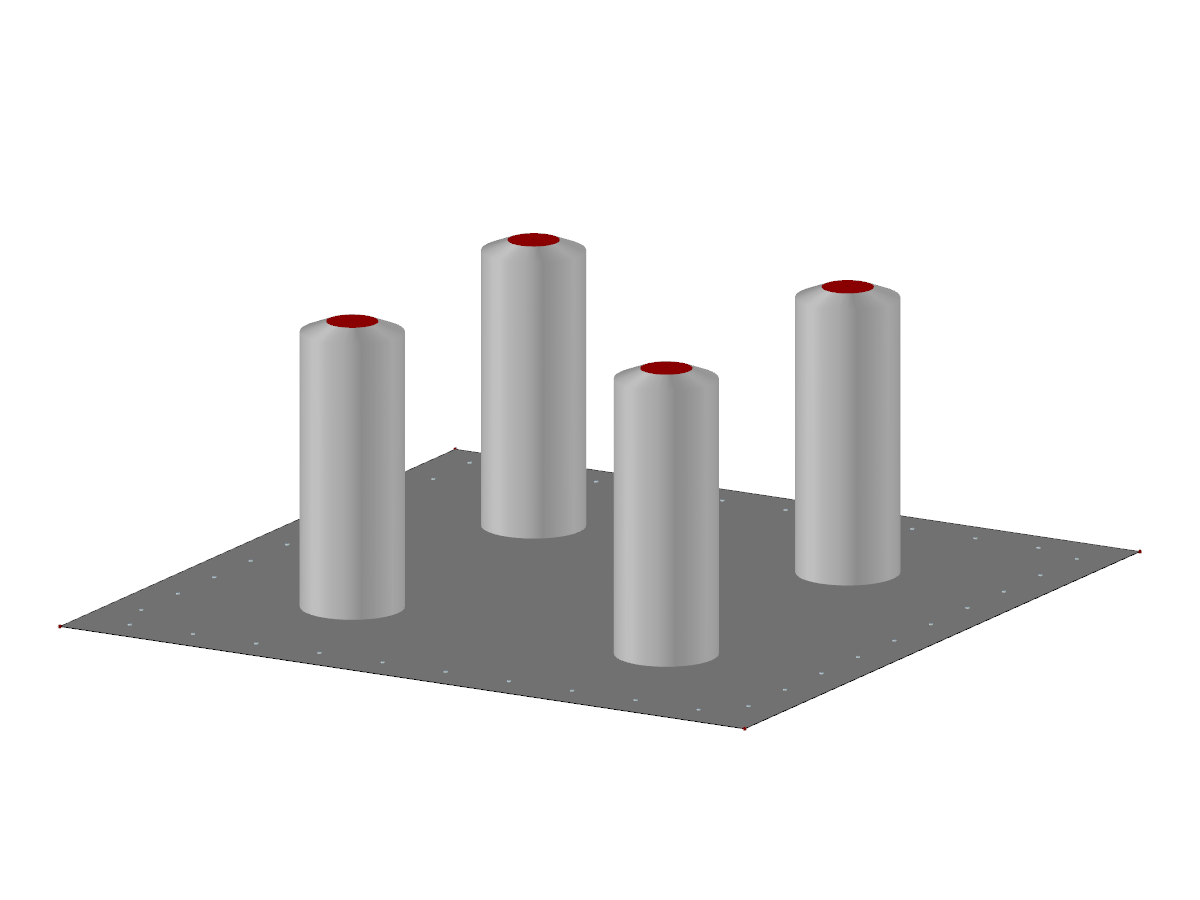

Foundation Plate with Rising Components
Used in
3D Model
Specifications
| Number of Nodes | 24 |
| Number of Lines | 24 |
| Number of Members | 12 |
| Number of Surfaces | 5 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 72 |
| Number of Result Combinations | 6 |
| Total Weight | 106.157 tons |
| Dimensions (Metric) | 9.500 x 9.500 x 2.800 m |
| Dimensions (Imperial) | 31.17 x 31.17 x 9.19 feet |
| Program Version | 5.23.02 |
2024-05-30
010496

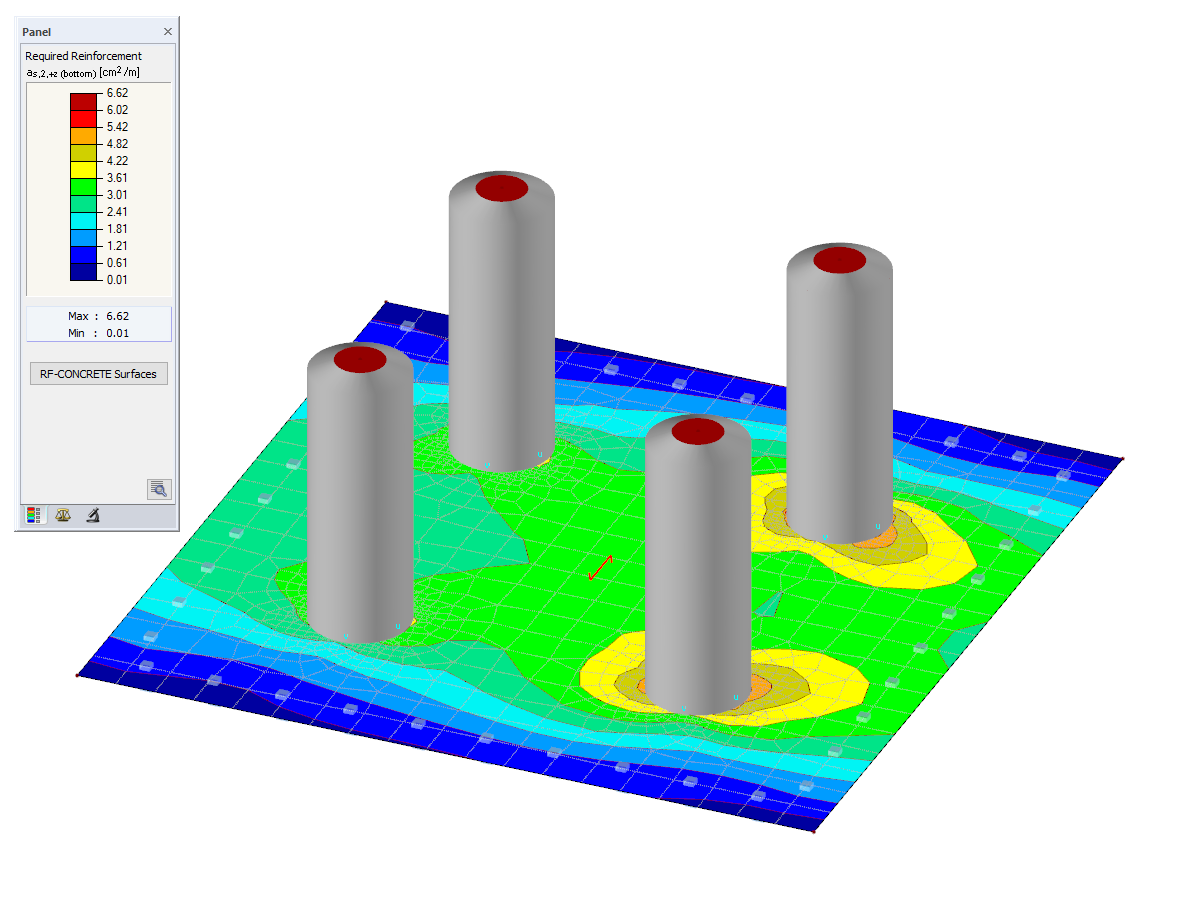

Designing Foundations
Used in
3D Model
Specifications
| Number of Nodes | 24 |
| Number of Lines | 24 |
| Number of Members | 12 |
| Number of Surfaces | 5 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 72 |
| Number of Result Combinations | 6 |
| Total Weight | 106.157 tons |
| Dimensions (Metric) | 9.500 x 9.500 x 2.800 m |
| Dimensions (Imperial) | 31.17 x 31.17 x 9.19 feet |
| Program Version | 5.23.02 |
