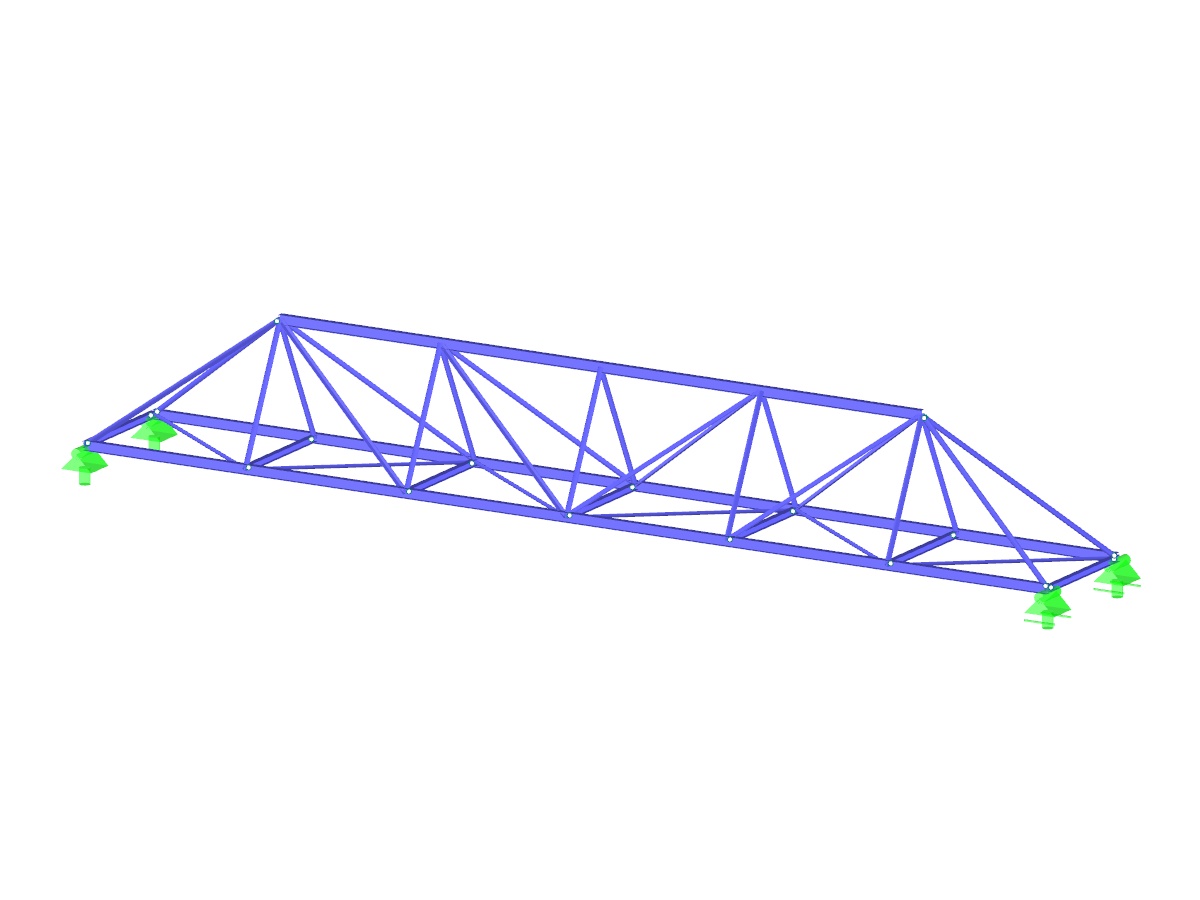

Bridge with Cold-Formed I-Sections as Purlins
3D Model
Specifications
| Number of Nodes | 19 |
| Number of Lines | 51 |
| Number of Members | 51 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 1 |
| Total Weight | 1.222 tons |
| Dimensions (Metric) | 16.313 x 2.313 x 2.156 m |
| Dimensions (Imperial) | 53.52 x 7.59 x 7.07 feet |
| Program Version | 5.08.01 |
