2024-03-09
001339

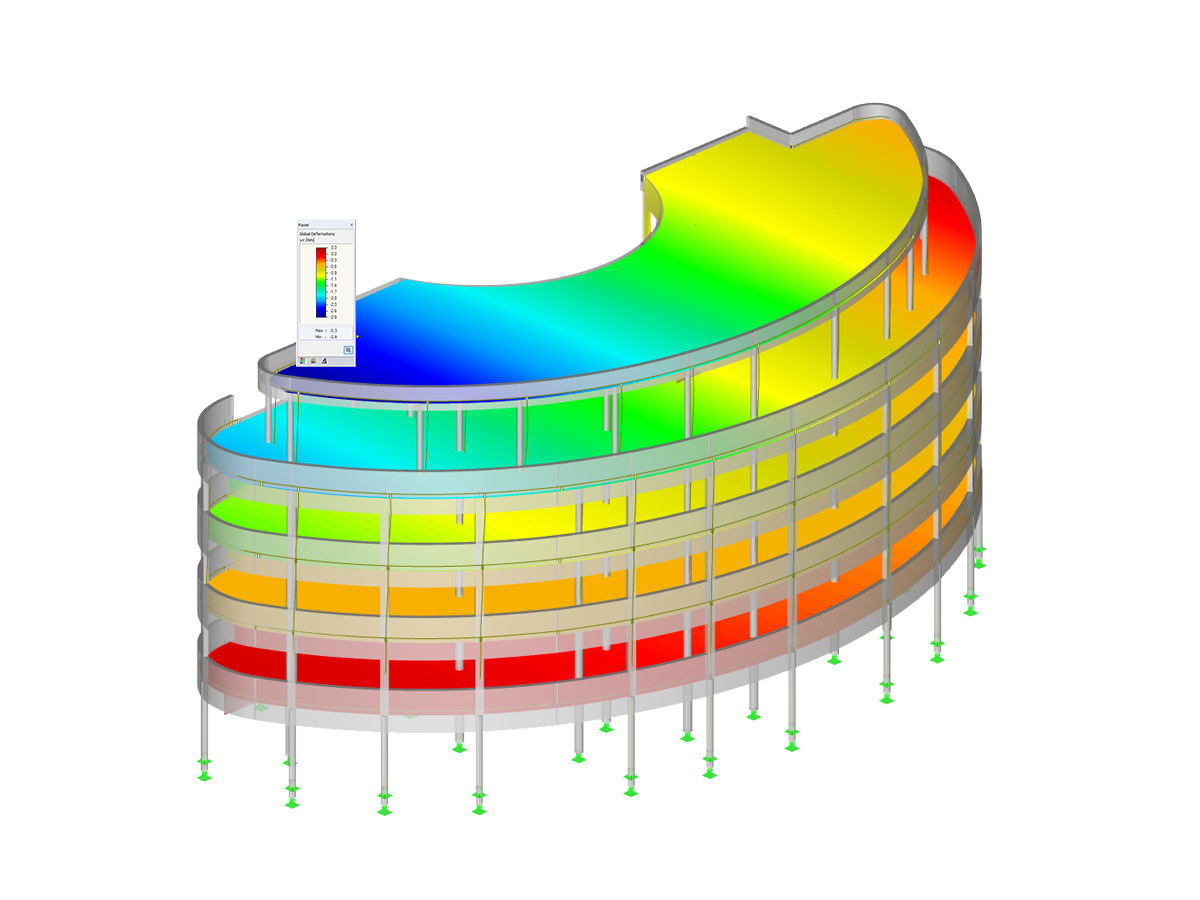

Reinforced Concrete Structure with RFEM Structural Analysis Software
Used in
3D Model
Specifications
| Number of Nodes | 660 |
| Number of Lines | 620 |
| Number of Members | 285 |
| Number of Surfaces | 65 |
| Number of Load Cases | 1 |
| Total Weight | 3360.665 tons |
| Dimensions (Metric) | 46.688 x 20.227 x 20.297 m |
| Dimensions (Imperial) | 153.18 x 66.36 x 66.59 feet |
| Program Version | 5.21.00 |
Reinforced Concrete House
Used in
3D Model
Specifications
| Number of Nodes | 101 |
| Number of Lines | 141 |
| Number of Members | 8 |
| Number of Surfaces | 16 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 31 |
| Number of Result Combinations | 2 |
| Total Weight | 219.224 tons |
| Dimensions (Metric) | 14.687 x 12.414 x 6.283 m |
| Dimensions (Imperial) | 48.19 x 40.73 x 20.61 feet |
| Program Version | 5.16.00 |
2024-03-09
011460
Concrete Shell Fabricated with “Pneumatic Wedge Method” in Vienna, Austria
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 112 |
| Number of Lines | 48 |
| Number of Members | 0 |
| Number of Surfaces | 17 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 15.158 tons |
| Dimensions (Metric) | 10.266 x 3.495 x 10.266 m |
| Dimensions (Imperial) | 33.68 x 11.47 x 33.68 feet |
2024-03-09
013903
3D Reinforced Concrete Structure
Used in
3D Model
Specifications
| Number of Nodes | 29 |
| Number of Lines | 26 |
| Number of Members | 2 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 2 |
| Total Weight | 23.424 tons |
| Dimensions (Metric) | 9.000 x 2.800 x 3.000 m |
| Dimensions (Imperial) | 29.53 x 9.19 x 9.84 feet |
