Model 005643 | Základová patka

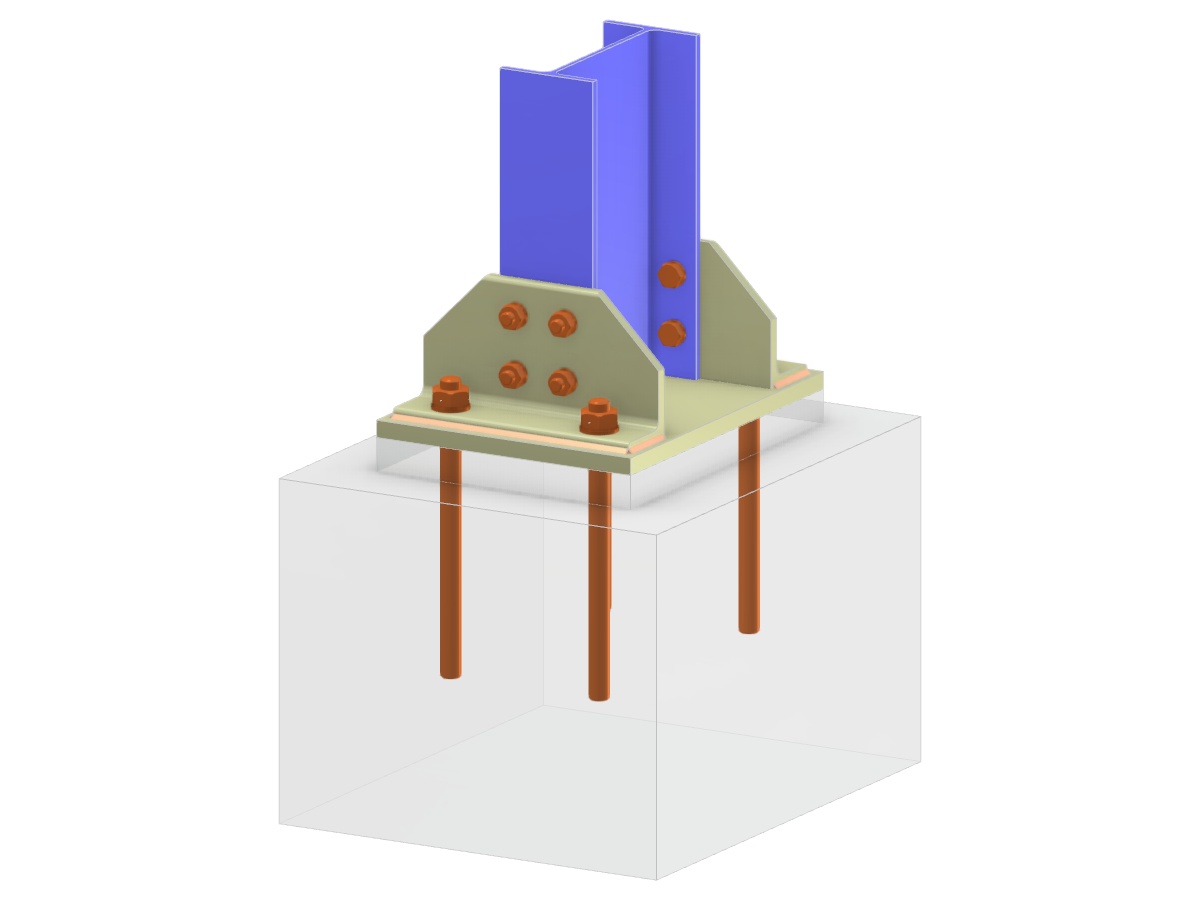

The image shows a column base design featuring an I-section with a bolted base plate securely anchored. The configuration includes angles that connect the column to the base. This structural setup is critical for ensuring stability and load transfer in building construction.
Používá se v
3D model
Specifikace
| Počet uzlů | 2 |
| Počet linií | 1 |
| Počet prutů | 1 |
| Počet ploch | 0 |
| Počet těles | 0 |
| Počet zatěžovacích stavů | 0 |
| Počet kombinací zatížení | 0 |
| Počet kombinací výsledků | 0 |
| Celková hmotnost | 0,042 t |
| Rozměry (metrické) | 0,000 x 1,000 x 0,000 m |
| Rozměry (imperiální) | 0 x 3.28 x 0 feet |
